MCF51QE128 Demonstration Board

DEMOQE128

Roll over image to zoom in

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

ColdFire® V1 Processors

8-Bit S08 MCUs

Features

Connectivity

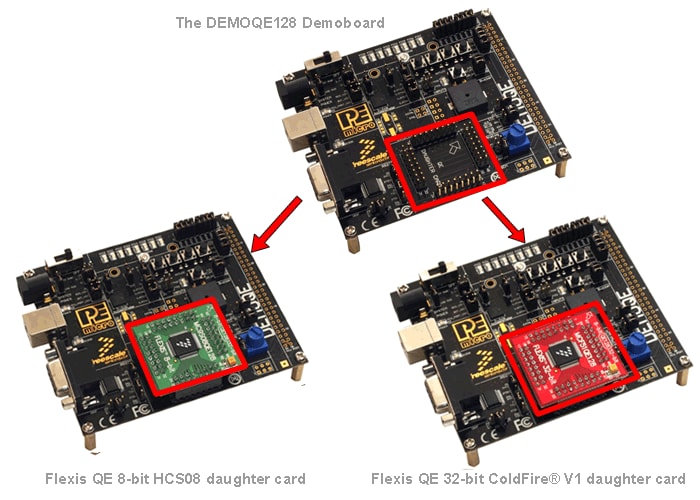

  • Interchangeable 8-bit S08 and 32-bit ColdFire® V1 QE family daughter cards

Power Management

    Flexible power input sources selectable through jumpers

  • USB Cable: 5 V DC, 500 mA max
  • 5 V DC to 12 V DC power jack: 2.5/5.5 mm barrel connector, center positive
  • 2 AAA battery cells
  • MCU port connector

    P&E's USB Embedded Multilink circuitry eliminates the need for external BDM cable

  • Allows for debug, programming, and power to board and device
  • SCI signals connected to Multilink through jumpers for onboard virtual serial port
  • TPM signals connected to Multilink through jumpers for onboard logic analyzer

User Features

  • 3-axis Accelerometer w/ Enable
  • Eight user LEDs w/ Enable
  • Four user push buttons w/ Enable
  • One Piezzo buzzer w/ Enable
  • One RS-232 Serial Port w/ DB9-F Connector
  • IIC Pullups w/ Enable
  • 10K Ohm POT w/ Enable

Components

  • ON/OFF power switch w/ LED indicator
  • Selectable regulated VDD Output at 3.0 V or 2.1 V
  • RESET push Button and LED indicator w/ Enable
  • External crystal circuitry layout

Size

  • Board Size 3.5 x 4.0''

Buy Options

DEMOQE128-Image

Click to expand

  • DEMOQE128

  • DEMO FOR S08 AND V1 QE128 SILICON.

  • $113.85 USD
  • For a quantity of 1
Buy From Distributor
