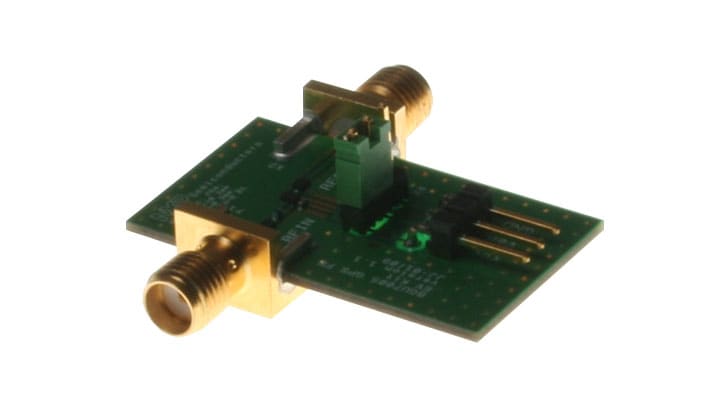

GNSS/GPS low-noise amplifier front-end evaluation board using BGU8007

The BGU8007 GNSS front-end evaluation board simplifies the evaluation of the BGU8007 LNA for the GNSS (GPS, GLONASS, Galileo and Compass) application. Two Surface Acoustic Wave filters have been added to facilitate the evaluation of the complete GNSS front-end. The board is fully assembled with the BGU8007, two identical SAW filters, the input series inductor and a decoupling capacitor. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU8007 can operate from a 1.5 V to 2.5 V single supply and consumes about 4.7 mA.
