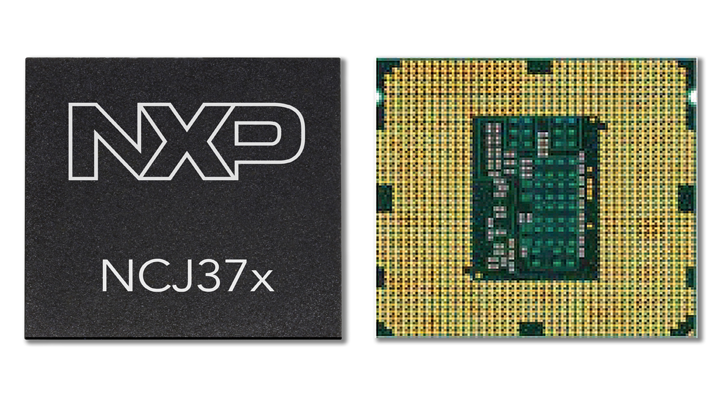

Automotive Secure Element with Passive NFC, I2C and SPI Interfaces

  • Preproduction
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.

Roll over image to zoom in

Block Diagram

Choose a diagram:

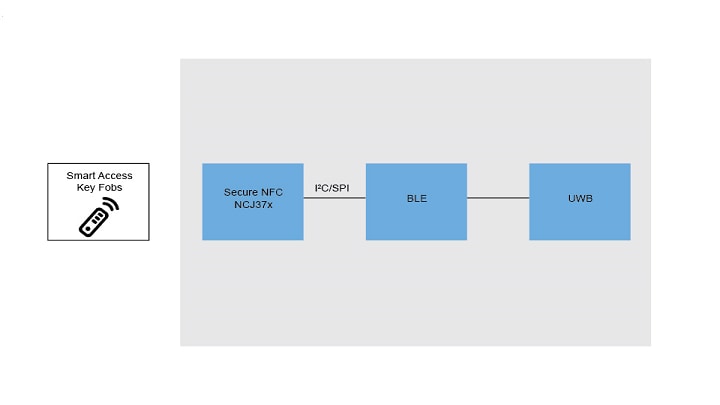

Smart Fob Block Diagram

Smart Access Key Fob Block Diagram

Smart Access Vehicle Diagram

Smart Access Vehicle Diagram

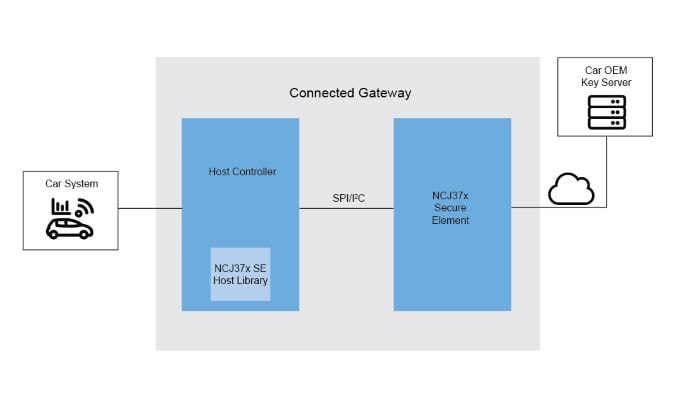

Connected Car Block Diagram

Connected Car Block Diagram

Features

General Features

  • MRK3-SC 16-bit RISC (reduced instruction set computing) CPU for high-transaction performance, low-power consumption and world-class security level
  • Up to 400 kB user memory

Interfaces

  • SPI contact interface
  • I2C bus target/contact interface
  • Passive ISO/IEC 14443 interface supporting NFC mode

Cryptographic Hardware Coprocessors

  • High-speed Triple-DES and AES coprocessor
  • Random number generator in hardware AIS-31 compliant
  • High-speed public-key coprocessor (PKC) supporting major public key cryptography systems such as RSA, ECC and corresponding schemes
  • Cyclic redundancy check engine

Certified EdgeLock® Assurance

  • The NCJ37x, part of the certified EdgeLock assurance program, is designed to meet industry standards and follows NXP's security-by-design approach. It has been certified by an independent lab.

Package and Certification

  • HVQFN20 package with wettable flanks
  • HW Certification: common criteria EAL 6+
  • AEC-Q100 qualified

Request an NCJ37x Secure Element

This product has unique programming. Contact your NXP local sales representative for more information.
