Ultra-Low Power and Low-Voltage Magnetic Switch

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

For additional information and sample availability contact support or your local sales representative.

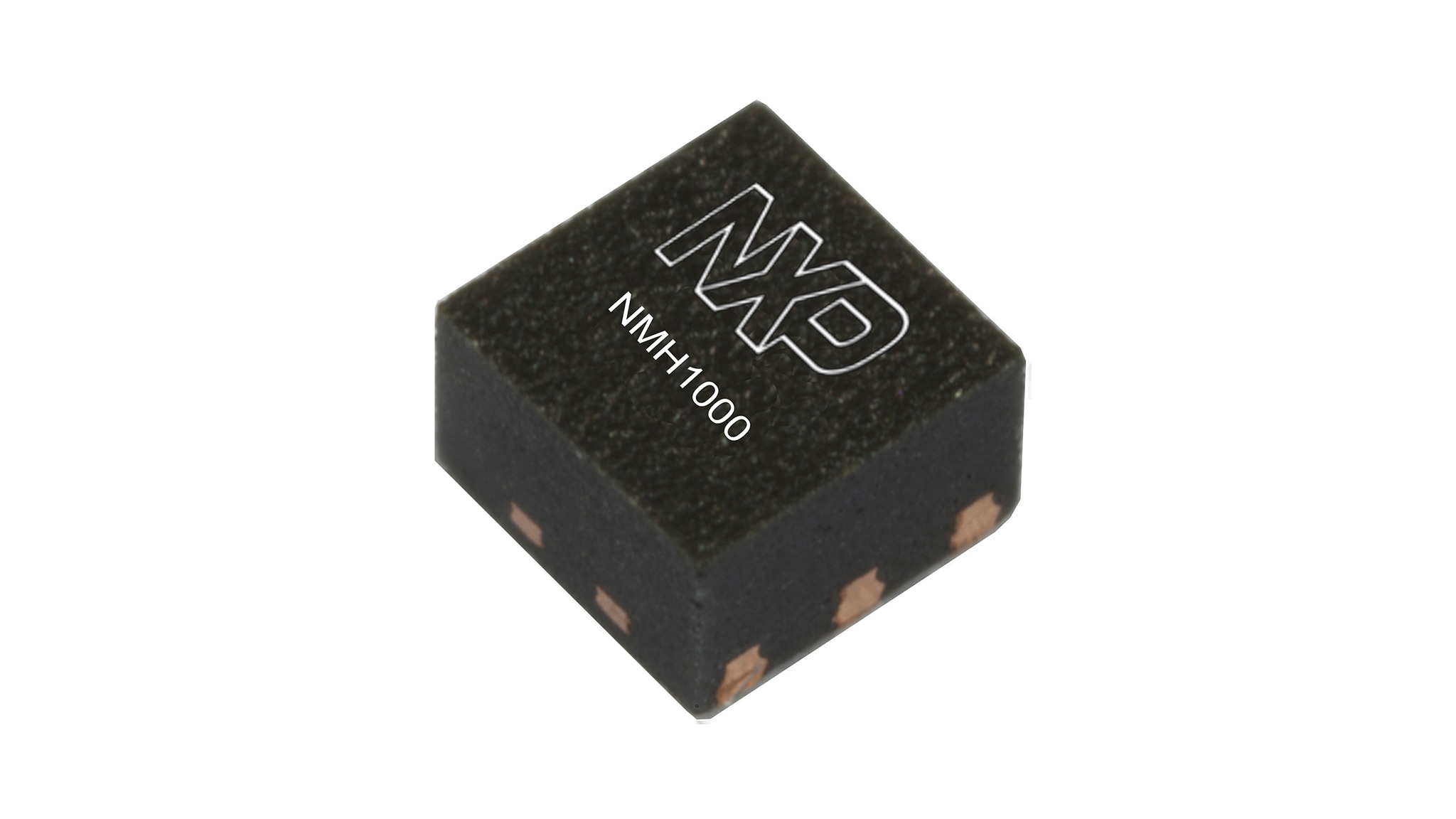

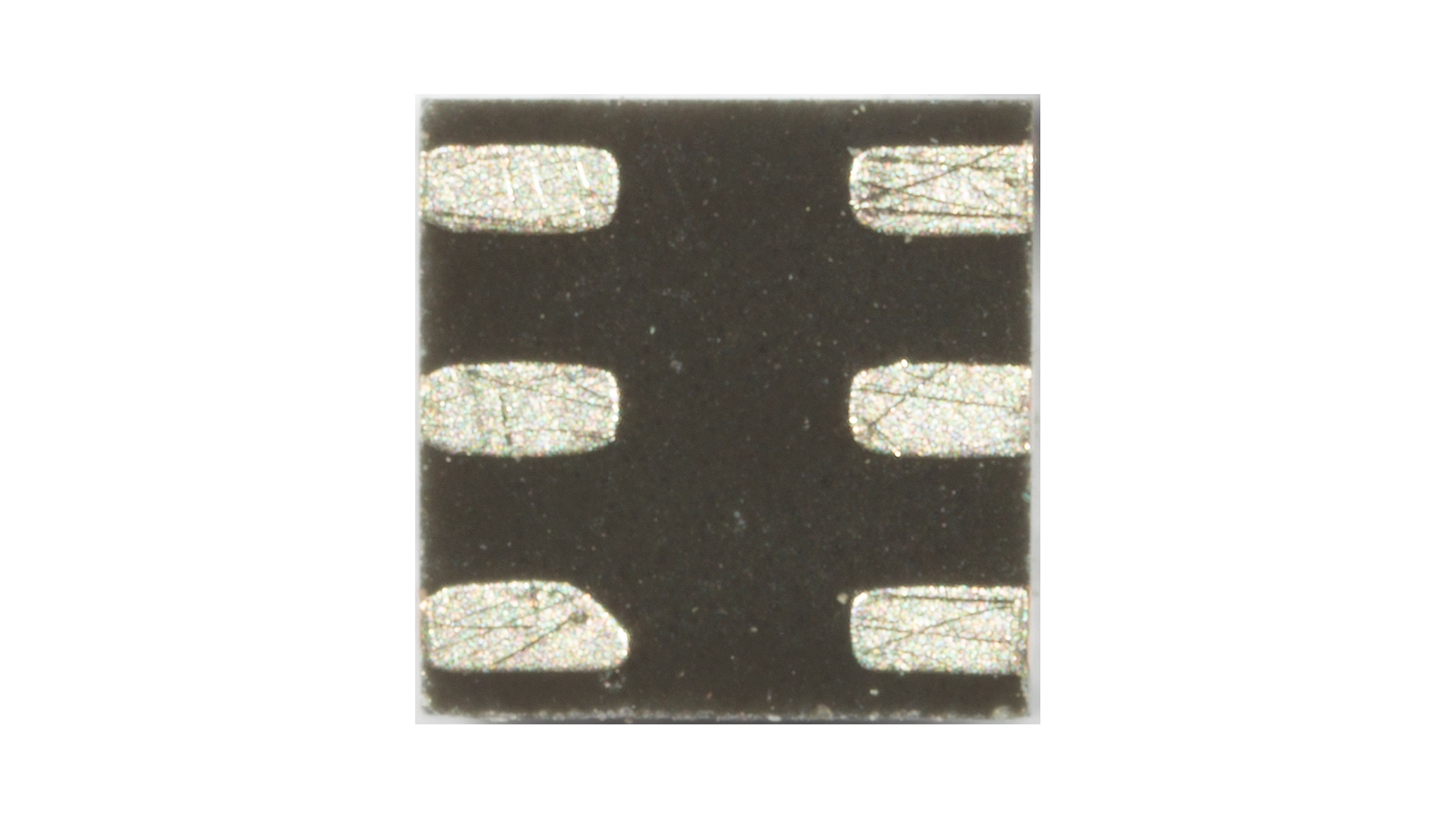

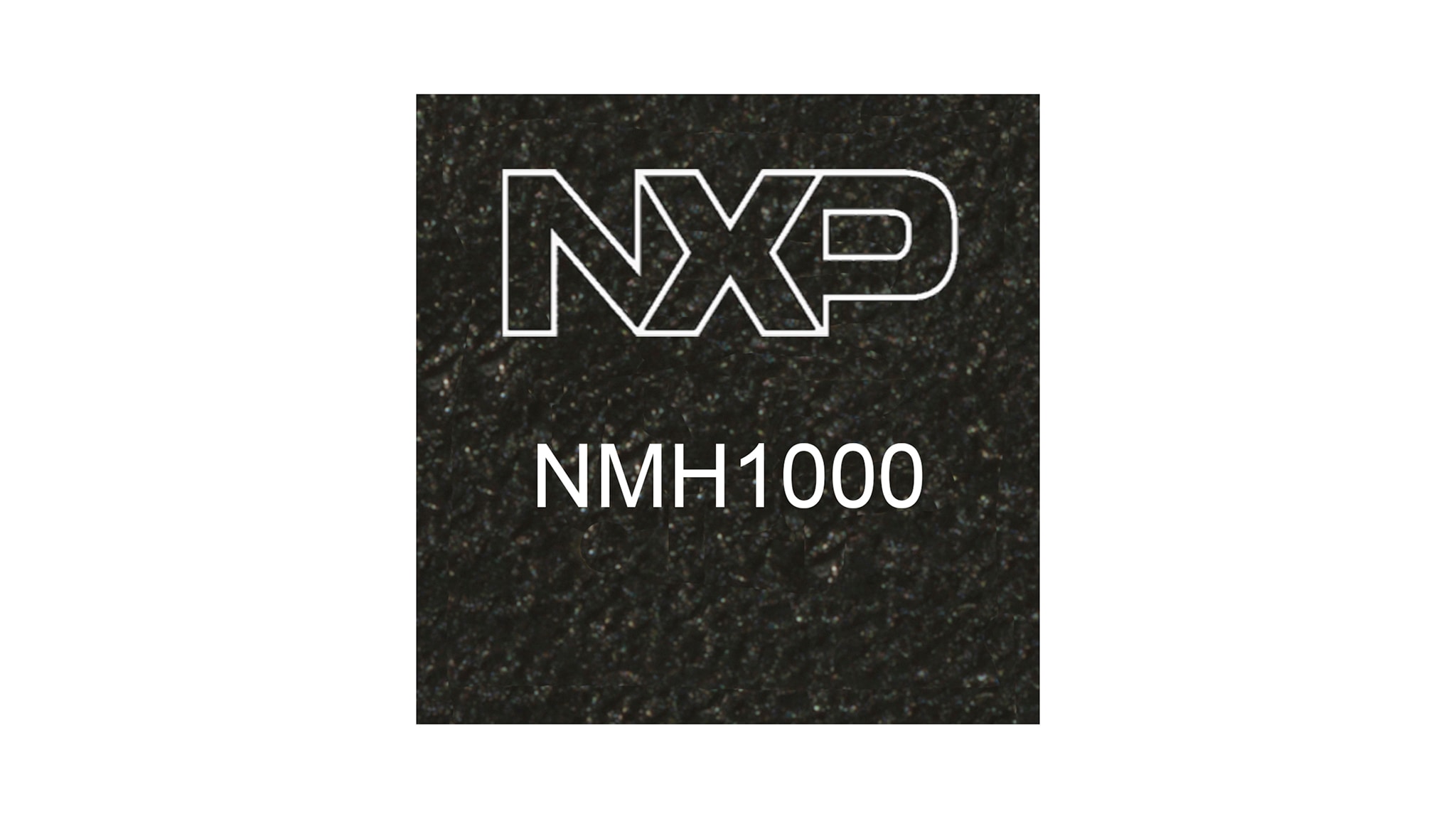

The NMH1000 is an ultra-low power monolithic Hall effect magnetic field sensor that provides a small footprint in a DFN 1.4 x 1.4 x 0.85 mm package in low-current and low-operating-voltage, I²C mode or standalone mode.

The sensor is most sensitive to a vertical field passing though the top-to-bottom surfaces, orthogonal to the plane of the application PCB. The input consists of a magnetic field ranging from earth-bound background to a maximum BGmax. Output is asserted when surrounding magnetic field is greater than the user-defined detection threshold. In the I²C mode, an indication of the magnetic field value can be reported out.

Data Sheet

Product Details

Block Diagram

Ultra Low Power and Low Voltage Magnetic Switch

Get diagram PDF

Features

System Features

Voltage supply range: 1.2 V to 3.6 V
Current consumption: 75 nA @ 1 Hz

Stand Alone Mode

Threshold selection 3-state hardware pin ( 70, 140 or 210 Gauss)
Samples rate selection 3-state hardware pin ( 0.1 Hz, 1 Hz, 10 Hz)

I²C Mode

Threshold selection data bits
Sample rate selection data bits (from 0.1 Hz to 100 Hz)

Product Longevity Program

This product is included in the NXP Product Longevity program with assured supply for a minimum of 10 years after launch

Part numbers include: NMH1000.
