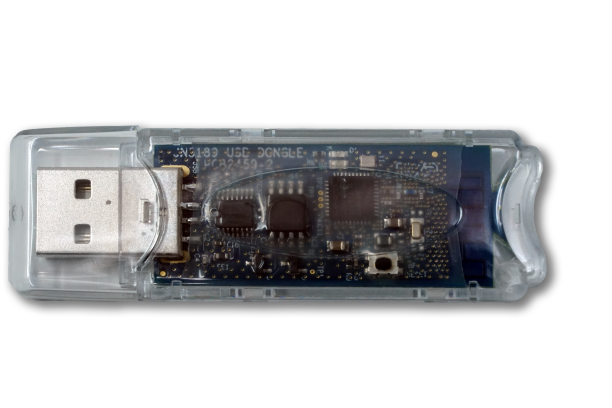

K32W USB Dongle for Bluetooth LE, Zigbee and Thread networks

OM15080-K32W

Roll over image to zoom in

The OM15080-K32W can be used as a node in a Zigbee network as a Zigbee Control Bridge, Zigbee Coordinator or packet sniffer. It can also be used in Thread wireless network, typically as a Border Router or Network/Radio Co-Processor (NCP/RCP). In addition, The USB dongle can be used as a Bluetooth LE wireless network node with a simple connection to a PC or other USB enabled device.

Product Details

Supported Devices

Wireless Connectivity

Zigbee

  • JN5189_88_T: JN5189/88 (T): High-Performance and Ultra-Low-Power MCUs for Zigbee® and Thread with Built-In NFC Option

Bluetooth Low Energy

  • QN9090-30: QN9090/30: Bluetooth Low-Energy MCU with Arm®Cortex®-M4 CPU, Energy Efficiency, Analog and Digital Peripherals and NFC Tag Option

Wireless MCUs

  • K32W061_41: K32W061/41: High-Performance, Secure and Ultra-Low-Power MCU for Zigbee®,Thread™, and Bluetooth® LE 5.0 with Built-In NFC Option

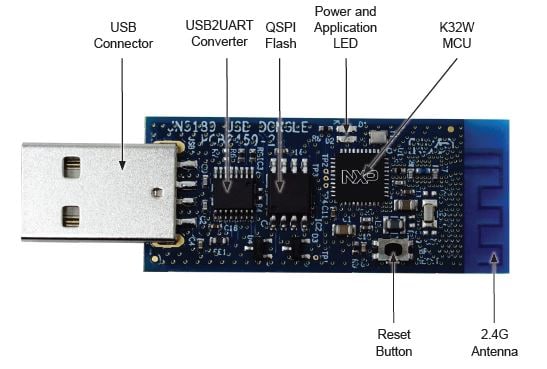

Features

Processor

    K32W061

  • Up to 48MHz Cortex-M4
  • 640 KB flash
  • 152 KB RAM
  • 128 KB ROM
  • NFC NTAG Option with EEPROM
  • 2.4 GHz IEEE 802.15.4 and Bluetooth LE compliant

Connectivity

  • Integrated PCB antenna
  • USB connector

Power Management

  • USB port

Wireless

  • IEEE 802.15.4 and Bluetooth LE compatible PCB antenna

Buy Options

OM15080-K32W-Image

Click to expand

OM15080-K32W
Active

K32W USB Dongle for Bluetooth LE, Zigbee and Thread networks.

    $33.35 USD
    In Stock :24

    Normally ships 1-2 business days

    ADD TO CART
