Advanced Development Kit for K32W061 and JN5189/88

IOTZTB-DK006

Roll over image to zoom in

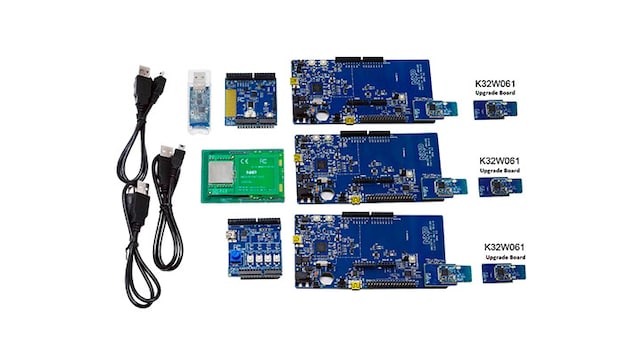

The IOTZTB-DK006 evaluation kit works with the NXP JN518x, K32W061/41 and K32W041AM/A range of ultra-low-power, high-performance wireless MCUs suitable for Home and Building Automation and Smart Lighting applications using Bluetooth® LE, Zigbee®, Thread™ and Matter networking standards. IOTZTB-DK006 comes with a comprehensive number of components, including a control bridge with an NFC reader, generic switch node, light/sensor node, JN5189 upgrade boards, K32W061 upgrade boards and a USB dongle that allows for a small wireless network to be quickly assembled for multiprotocol applications.

Product Details

Supported Devices

Wireless Connectivity

Wireless MCUs

  • K32W041AM-A: K32W041AM/A: High Performance, Secure and Low-Power MCU for Zigbee®, Thread™ and Bluetooth® LE 5.0 with High Tx Power Option
  • K32W061_41: K32W061/41: High-Performance, Secure and Ultra-Low-Power MCU for Zigbee®,Thread™, and Bluetooth® LE 5.0 with Built-In NFC Option

Zigbee

  • JN5189_88_T: JN5189/88 (T): High-Performance and Ultra-Low-Power MCUs for Zigbee® and Thread with Built-In NFC Option

Bluetooth Low Energy

  • QN9090-30: QN9090/30: Bluetooth Low-Energy MCU with Arm®Cortex®-M4 CPU, Energy Efficiency, Analog and Digital Peripherals and NFC Tag Option

Features

Processor

    K32W061

    JN5189(T)

  • Up to 48MHz Cortex-M4
  • 640 KB flash, up to 152 KB RAM, 128 KB ROM
  • NFC NTAG Option with EEPROM
  • Bluetooth LE and 2.4 GHz IEEE 802.15.4 compliant

Connectivity

  • Standard Arduino compatible header
  • 2 x DMIC
  • FTDI USB connector

Power Management

    Flexible power supply option:

  • External DC power supply
  • On-board batteries
  • USB port

Debug

  • High-speed USB based, Link2 debug probe with ARM’s CMSIS-DAP and SEGGER J-Link protocol options.
  • Link2 probe can be used with on-board K32W061/JN5189 or external target

Wireless

  • Bluetooth LE and IEEE 802.15.4 compatible PCB antenna
  • NFC antenna

Sensors

  • Humidity / temperature sensor
  • Light sensor / Gyroscope / 6-axis sensor

Software and support application development

    null

Buy Options

IOTZTB-DK006-Image

Click to expand

IOTZTB-DK006
Active

Advanced Development Kit for K32W061 and JN5189/88.

    $525.00 USD
    In Stock :19

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
    K32W-001-T10-Image

    Click to expand

    K32W-001-T10
    Active

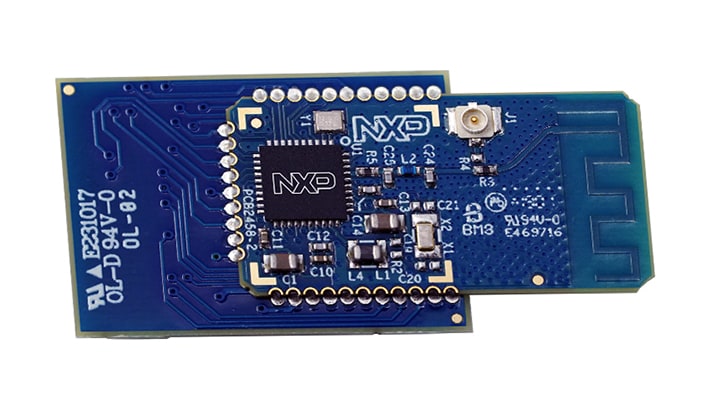

    K32W061/41 Upgrade Module on Mezzanine Board.

      $33.35 USD
      In Stock :50

      Normally ships 1-2 business days

      ADD TO CART
      Order from distributors
      K32WAM-001-T10-Image

      Click to expand

      K32WAM-001-T10
      Active

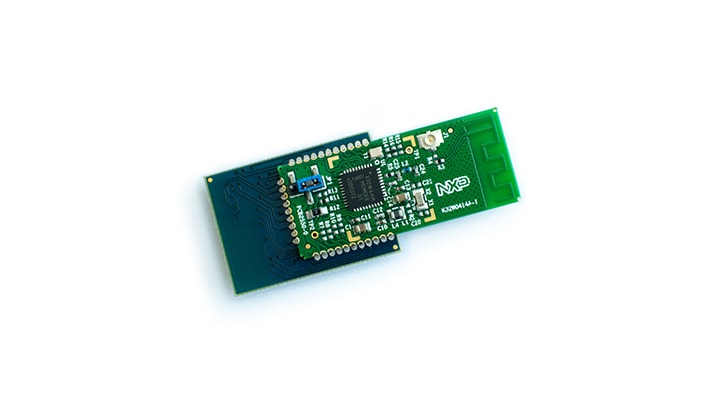

      K32W041AM Upgrade Module on Mezzanine Board.

        $32.65 USD
        In Stock :3

        Normally ships 1-2 business days

        ADD TO CART
        Order from distributors
        K32WA-001-T10-Image

        Click to expand

        K32WA-001-T10
        Active

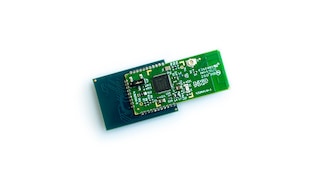

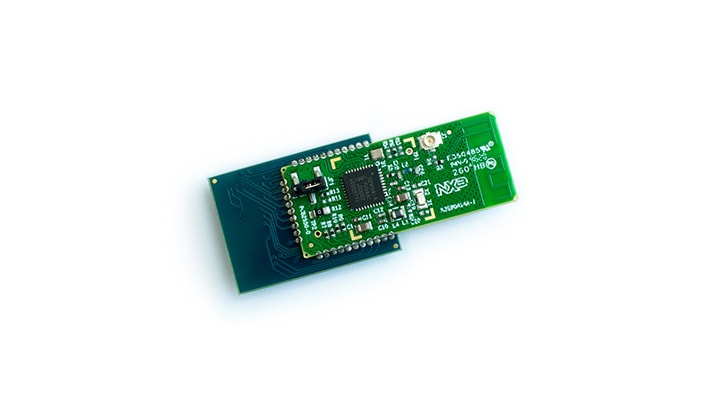

        K32W041A Upgrade Module on Mezzanine Board.

          $32.65 USD
          In Stock :5

          Normally ships 1-2 business days

          ADD TO CART
          Order from distributors
