Though 2014 was relatively a brief time ago, the advancement of technology
over the last few years has been astounding. Consider the acceleration of
Arm based shipments, which over the last 4 years has doubled. That is an increase of 50 billion
devices which integrate an Arm CPU from 2013 to 2017! Back in 2014, the
super-scalar Arm® Cortex®-M7 processor was unleashed into a market
poised for the age where smart and connected things would proliferate into the
billions. Today, with
8.4 billion connected things
having shipped in 2017, the capabilities of the top tier Arm Cortex-M
processor has already enabled many classes of embedded devices, from wearables
to industrial controllers. Now with broad industry focus on the application of
artificial intelligence, machine learning, vision and voice processing that
require more capable edge computation, the Arm Cortex-M7 and the NXP SoC
platforms which integrate it, are crossover points for the MCU developer to
help achieve the capabilities needed to address emerging requirements.
Central to the compute capability of the SoC is the CPU. Close to the release
of the Arm Cortex-M7, I had the pleasure of collaborating with Arm on a
that explores the processor capabilities in detail. The information there is
arguably more relevant today, so please have a read.
At the time we wrote the whitepaper, little did we know the extent to which
we could achieve with the processing speeds and peripherals that we’ve
done with the new i.MX RT. There is an excellent
that outlines how its attributes make it unclassifiable in the traditional
embedded space. With the i.MX RT family, we have created the new
‘crossover processor’ class. One of the benefits of this class

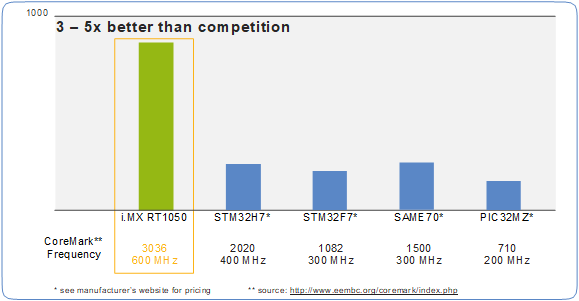

of devices is shown in the below graph which relates performance to the price
of different options in the market.
So, I would like to add the following addendum to the
to explore the Cortex-M7 integration for our i.MX RT crossover processor.

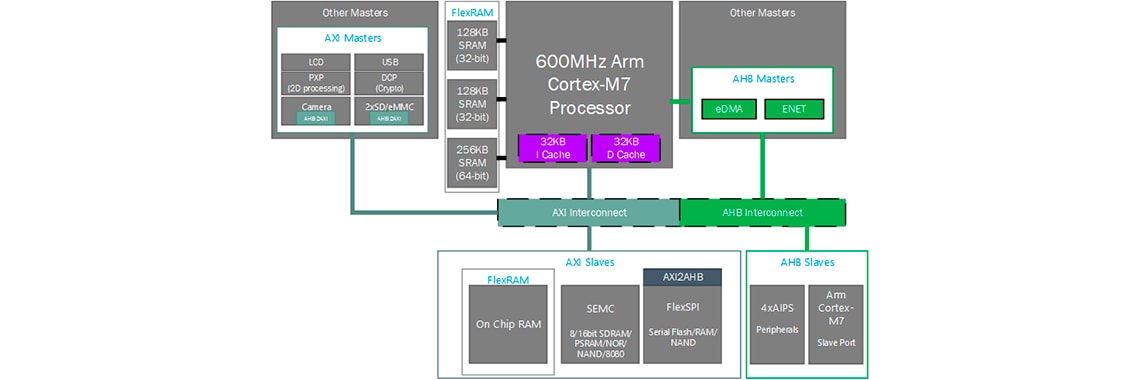

The below diagram captures the architectural details. With regards to cache,
the i.MX RT integrates 32KB for the instruction and 32KB for the data caches.
This is the largest size in the market and ensures that the processor is not
limited by any delays imposed by slower memories. For the Tightly Coupled
Memory (TCM), the i.MX RT has a FlexRAM block of memory. This allows
customization of the TCM up to the largest size available (256KB I-TCM, 256KB
D-TCM). The user can select this maximum size, or repurpose the FlexRAM to
work as On-Chip SRAM.
With regards to the use of AXI on the i.MX RT, there are a broad range of AXI
which are integrated. Some specific peripherals to highlight which are
relevant to emerging trends are the LCD Controller, 2D graphics acceleration
engine, Parallel camera sensor interface and cryptographic accelerator (Data
Co-Processor-DCP). These components differentiate the i.MX RT in the market
and align to the need for the highest compute performance together with
reliable security and assured privacy at the lowest cost possible. Finally,
most relevant to the computational capabilities of the i.MX RT is the
processor speed. Reaching 600MHz allows the RT to be throttled up for the most
NXP IoT and Security Solutions team, which applies NXP technology to address market challenges, is focusing on
enhancing the i.MX RT with voice and vision components. For the next 100
billion Arm-enabled chips coming in the next 4 years, I expect many to take
advantage of the capabilities provided by the CPU and the SoCs.
