BMx7318 Evaluation Board with SPI Communication

EVBMA7318-SPI new
Active

Roll over image to zoom in

The EVBMA7318-SPI provides a solution for a distributed architecture for lithium-ion battery management in automotive and industrial applications. This board integrates one BMA7318 device. It can communicate with a host board or host PC via SPI and with other CMU boards via TPL using transformer isolation. Each board can measure lithium-ion batteries with 4 to 18 cells. The board is powered by a 9 VDC to 90 VDC power source.

Block Diagram

EVBMA7318-SPI

BMA7318-BMI7318-BMA7518 Block Diagram
Get diagram PDF

Supported Devices

Battery Management

Battery Cell Controllers

Features

  • Distributed BMS Architecture
  • One BMA7318 on one board
  • BMA7318 can measure voltage for up to 18 battery cells with high accuracy
  • BMA7318 has 10 channels temperature sensing
  • Cell balancing current up to 300 mA
  • Current measurement channel with precision/fast mode
  • High EMC performance

Connectivity

  • SPI communication to Master and SPI2TPL bridge to forward data
  • TPL isolation communication to other CMU board

Buy Options

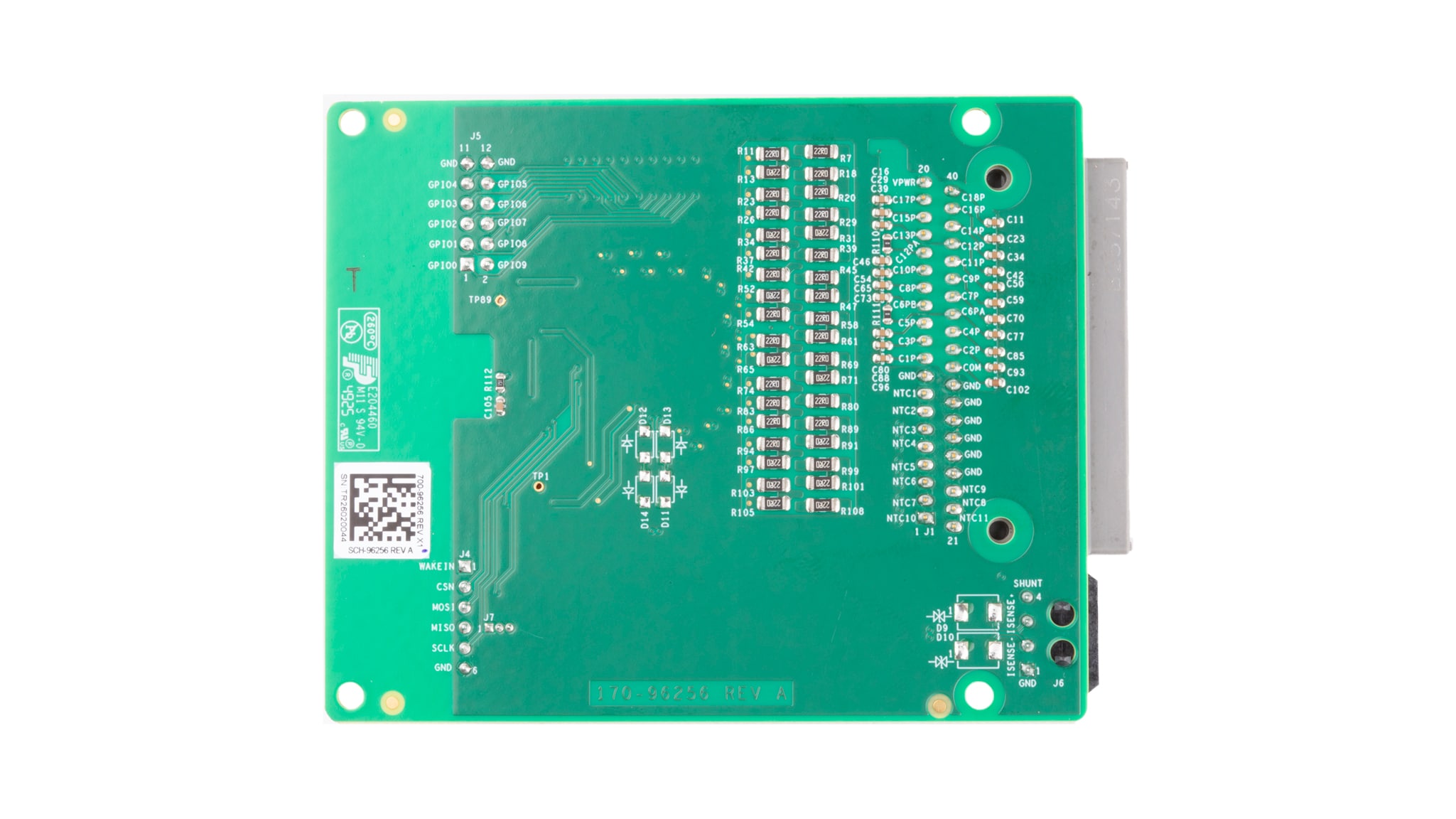

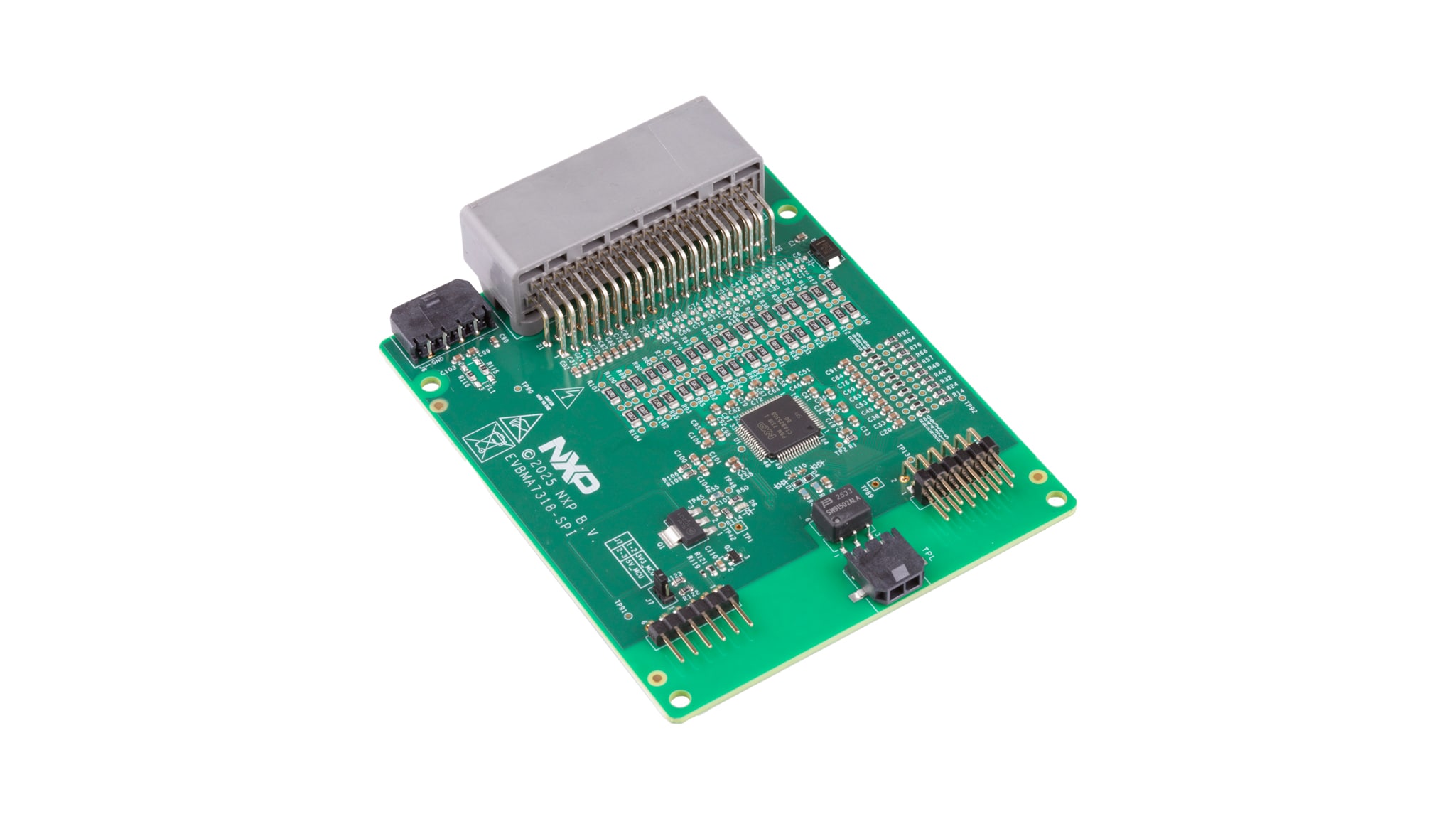

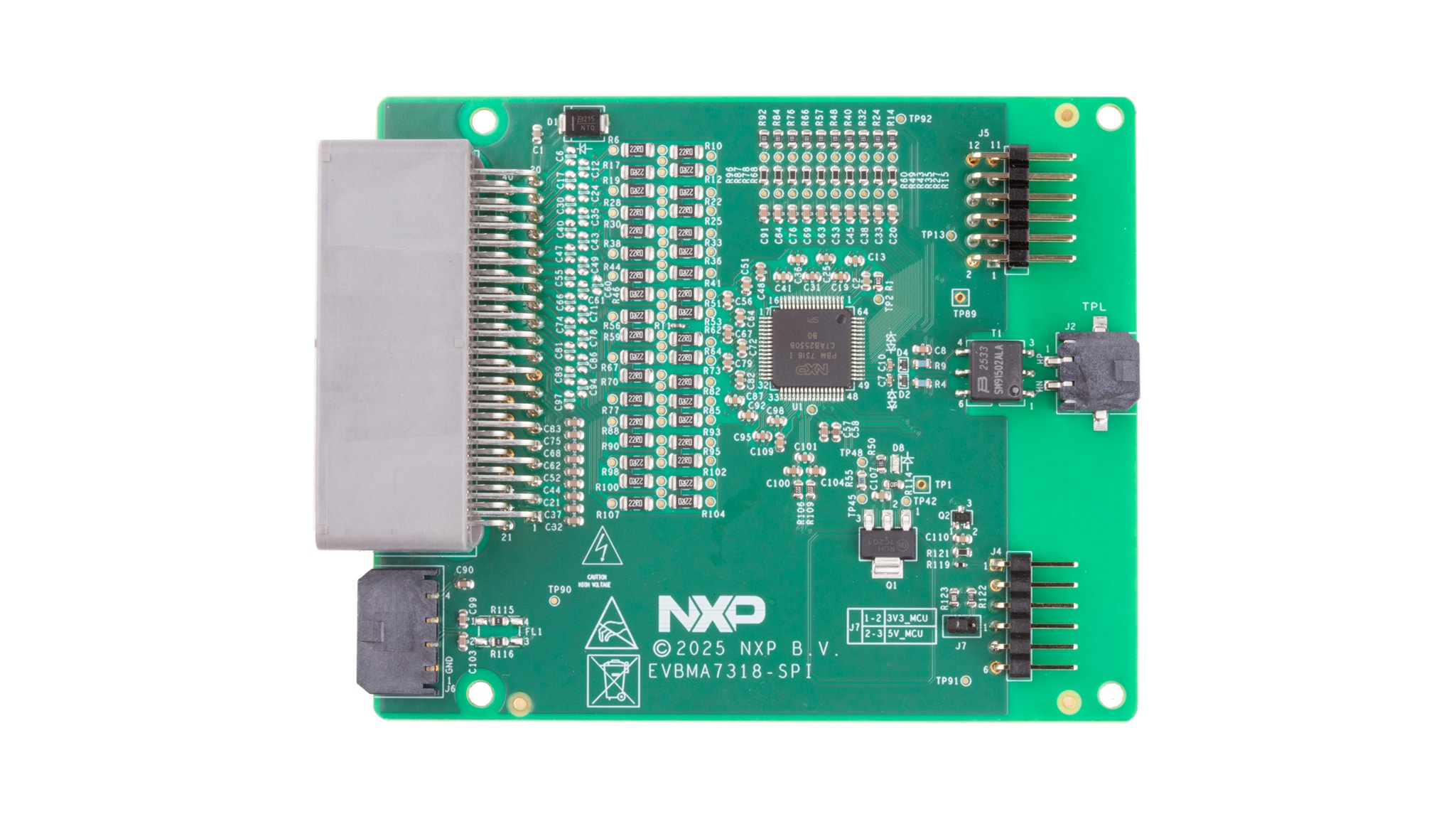

EVBMA7318-SPI-Image

Click to expand

EVBMA7318-SPI
Active

BMx7318 Evaluation Board with SPI Communication.

    $312.50 USD
    Pending Stock
    ADD TO CART
    Order from distributors
