Name: Matrix LED Controller for Exterior Lighting Applications Host Evaluation Board
Price: 118.00 USD
Availability: InStock

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

The ASL6112SHN - belonging to the ASL61XXYHZ family of matrix LED controller (MLC) targeting advanced automotive exterior lighting applications - can be evaluated using the dedicated evaluation board (EVB).

Design Files

Software

Product Details

Block Diagram

Operating Context of the EVBMLC2HOST Evaluation Board Including the ASL6112SHN MLC

Get diagram PDF

Supported Devices

Automotive Lighting LED Driver ICs

ASL61XXYHZ: Enhanced Matrix LED Controller for Automotive Lighting

Features

Matrix LED controller

16 channels, arranged in 4 configurable blocks of 4 switches each, to manage single or multiple strings with an up to 64 LED count
ASIL B compliant with ISO 26262 2nd Edition
Programmable 12-bit PWM dimming
Advanced diagnosis
CAN communication
Integrated 200 MHz oscillator
Built-in non-volatile multiple time programmable memory

Buy Options

Click to expand

EVBMLC2HOST
Active

Matrix LED Controller for Exterior Lighting Applications Host Evaluation Board.

Kit Contains

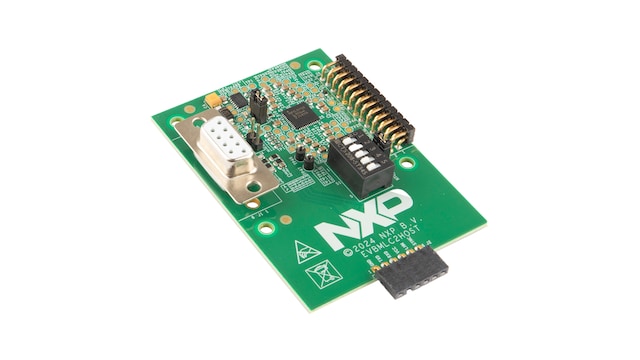

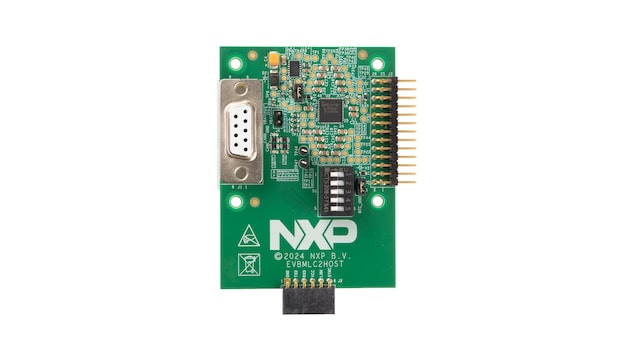

Assembled and tested EVBMLC2HOST evaluation board in an antistatic bag. It includes an ASL6112SHN and an UJA1163ATK
One cable consisting of a yellow/green twisted pair for CAN communication and a red/black cable pair for external power supply at 12 V

$118.00 USD

In Stock :11

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Documentation

Quick reference to our documentation types

2 documents

Compact List

Getting Started with the EVBMLC2HOST Evaluation Board[GS-EVBMLC2HOST]Getting Started

HTMLAug 13, 2025

UM12341: EVBMLC2HOST and EVBMLC2PER Evaluation Boards[UM12341]

HTML | PDFJul 31, 2025Rev 1.0

Design Resources

Related Hardware

Quick reference to our board types.

4 hardware offerings

Evaluation and Development Boards
Matrix LED Controller for Exterior Lighting Applications Peripheral Evaluation Board

EVBMLC2PERComplementary
Evaluation and Development Boards
Matrix LED Controller ASL5115SHN Evaluation / Development Board
Active

ASL5115EVBMSTSimilar
Evaluation and Development Boards
S32K144-Q100 Evaluation Board for Automotive General Purpose
Active

S32K144EVBComplementary
Evaluation and Development Boards
ASL45XASLX41 Evaluation Board
Active

ASL45XASLX41Complementary
