Evaluation Kit - MC33907, Safe SBC with Buck, Boost, LIN

KIT33907LAEEVB Active

Roll over image to zoom in

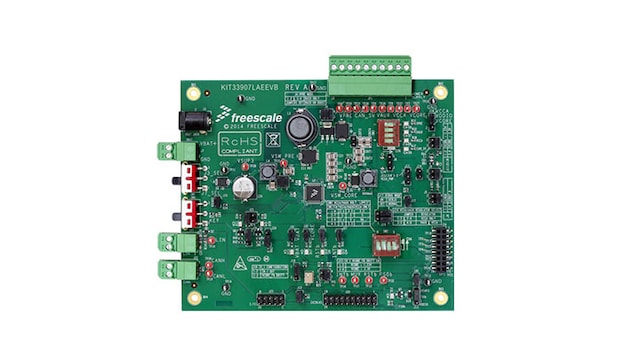

KIT33907LAEEVB evaluation board demonstrates the functionality of the MC33907 power system basis chips, respectively. These ICs are equipped with an Intelligent Power Management System including safety features targeting the latest ISO26262 automotive functional safety standard. The evaluation board is a standalone board that can be used either with a compatible microcontroller or with a PC. In the latter case, it is necessary to use an SPI/USB accessory interface board.

Supported Devices

Power Management

System Basis Chips

  • MC33907: Safe System Basis Chip DC/DC up to 800 mA

Features

Connectivity

  • LIN bus
  • CAN-bus
  • IO connector (IO_0 to IO_5)

Power Management

  • VBAT power supply either through power jack (2 mm) or phoenix connector
  • VCORE configuration: 1.23 V or 3.3 V
  • VCCA configuration:
    • 5.0 V/3.3 V
    • Internal transistor or external PNP
  • VAUX configuration:
    • 3.3 V or 5.0 V
    • Enabled or disabled at startup

Debug

  • Debug connector (SPI bus, CAN digital, LIN digital, RSTb, FSOb, INTb, Debug, MUX_OUT)

User Components

  • Ignition key switch
  • Signaling LED to give state of signals or regulators

Buy Options

KIT33907LAEEVB-Image

Click to expand

  • KIT33907LAEEVB
    Active

  • Evaluation kit - MC33907, Safe System Basis Chip with Buck and Boost and LIN.

    • Assembled and tested evaluation board/module in anti-static bag
    • Quick Start Guide, Analog Tools
    • Warranty card
  • $200.51 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
