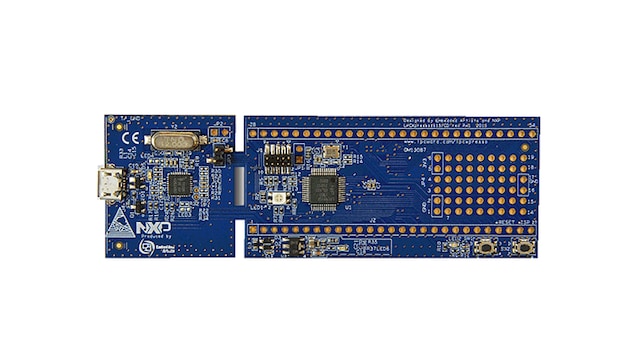

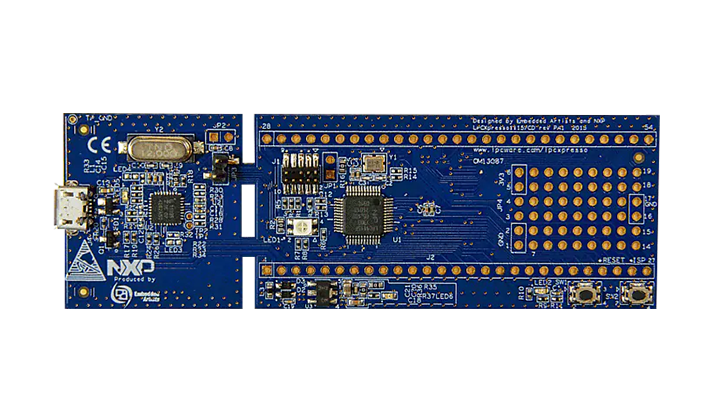

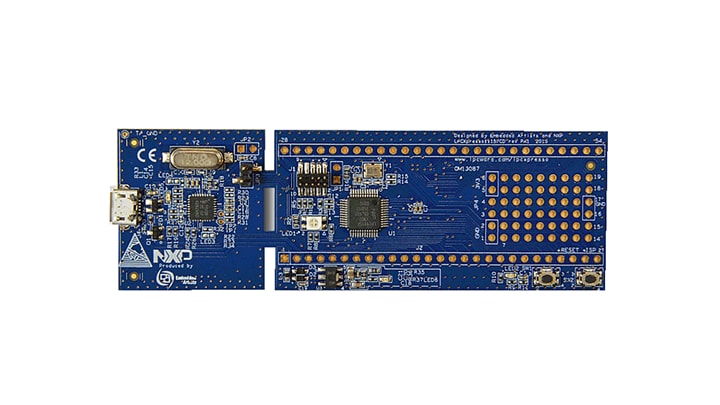

LPCXpresso board for LPC1115 with CMSIS DAP probe

OM13087
Active

Roll over image to zoom in

Pioneered by NXP and Embedded Artists, the low-cost LPCXpresso target boards to get you up and running quickly with LPC microcontrollers. Designed for simple, rapid prototyping and evaluation, LPCXpresso development boards work with Eclipse/GNU-based tools from NXP and other common partner toolchains.

This LPCXpresso board is populated with the LPC1115 to demonstrate and enable features of the LPC1100 product series. The LPCXpresso LPC1115 combines the industry‘s lowest 32-bit active power consumption of the LPC1115 and the low price point of the LPCXpresso board.

The board also includes an onboard, CMSIS-DAP compatible debug probe as well as a connector for use with 3rd party debug probes.

The order code for this board is OM13087

Product Details

Features

Microcontroller

  • LPC1115 Cortex-M3

Debug

  • Integrated CMSIS-DAP debug probe
  • Debug probe section of the board can be snapped off to reduce board size
  • 10 pin SWD connector for use with an external debug probe
  • LPCXpresso debug expansion connectors
  • Reset and ISP boot mode buttons
  • Tricolor LED

Buy Options

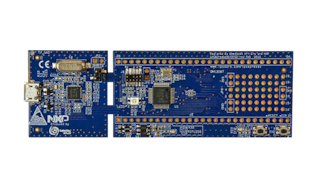

OM13087-Image

Click to expand

OM13087
Active

LPCXpresso board for LPC1115 with CMSIS DAP probe.

    $28.75 USD
    Pending Stock
    ADD TO CART
    Order from distributors
