Battery Junction Box Emulator

PACK-BJBEMUL new

Roll over image to zoom in

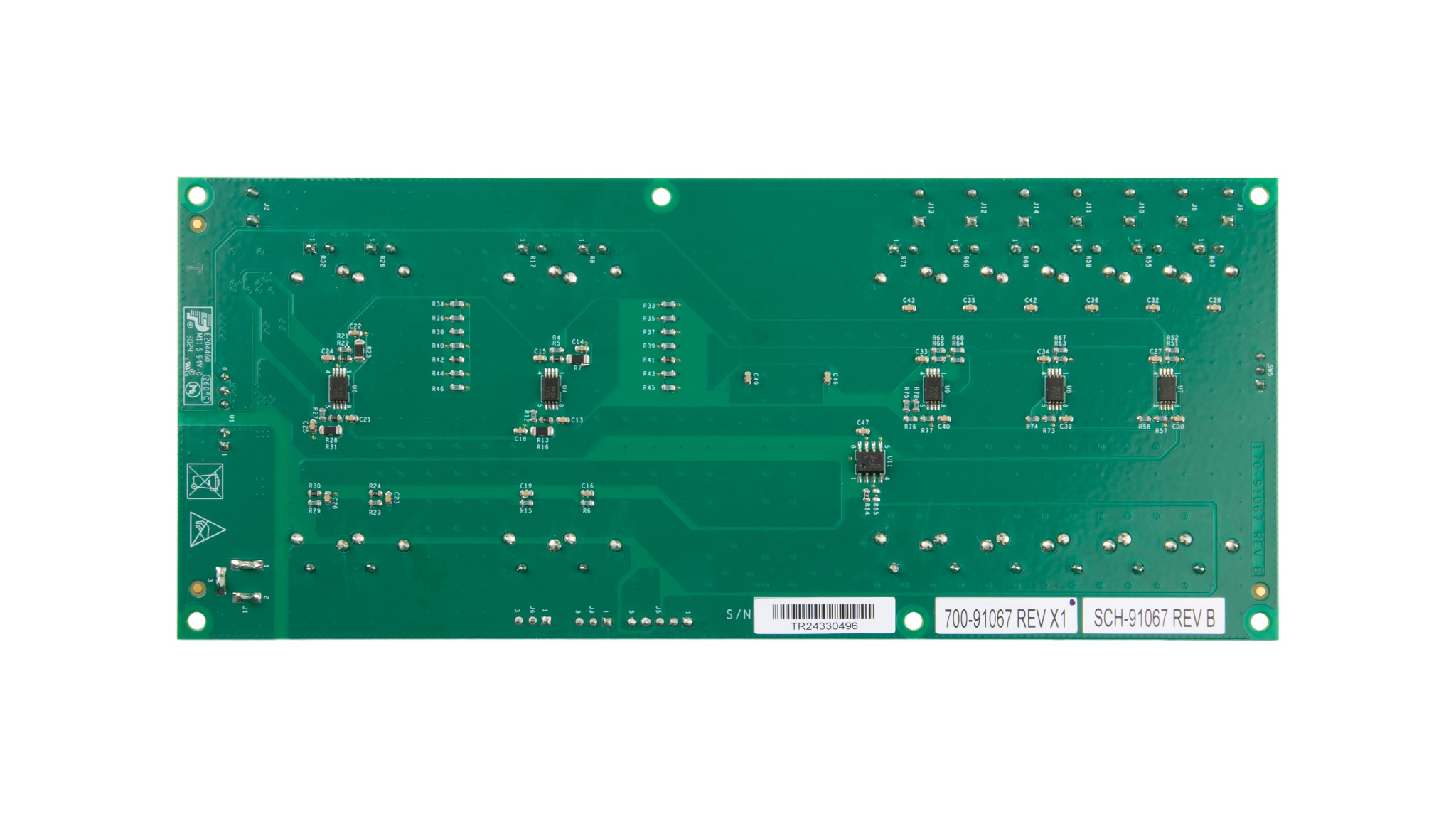

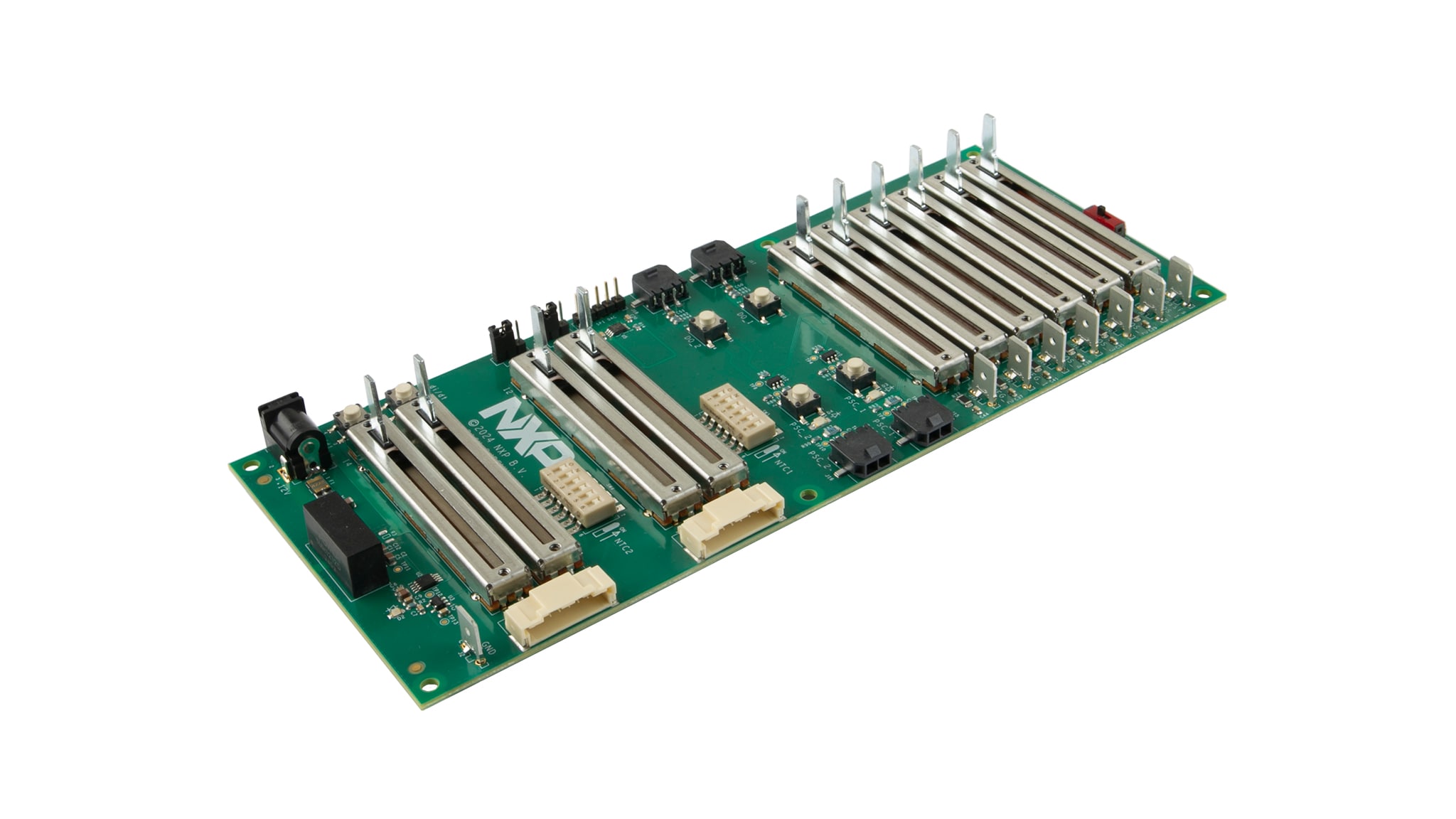

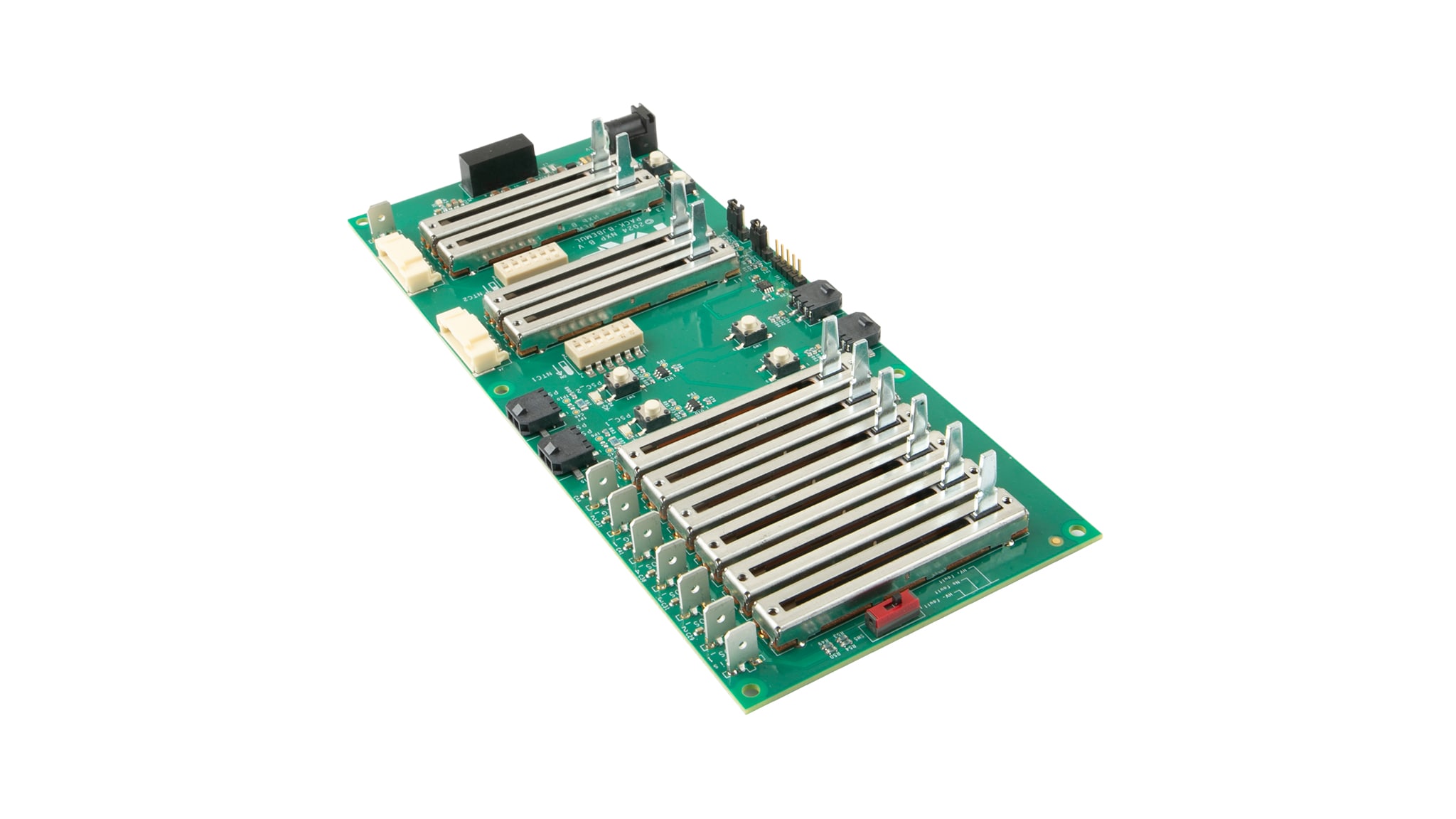

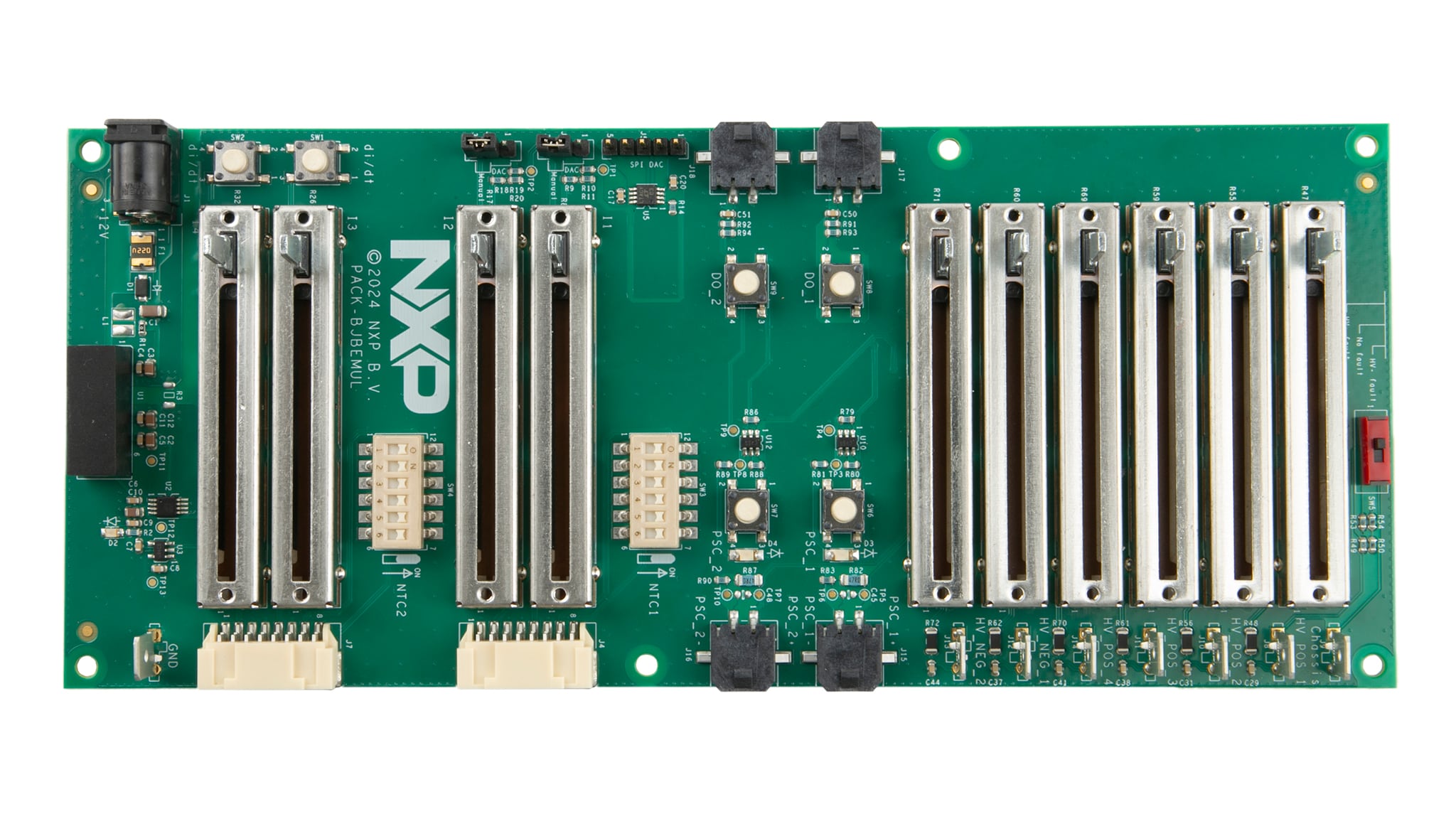

The PACK-BJBEMUL is a battery junction box emulator. It is meant to simplify the evaluation of NXP battery junction box solutions. The board emulates different parameters in the system (battery current, system high-voltage, temperature sensor, pyrotechnic switch, etc.).

Supported Devices

Power Management

Battery Sensors

  • MC33777: Battery Junction Box Monitor IC

Features

System Voltage

  • 4 positive voltage outputs (from 0 V to 10 V)
  • 2 bipolar voltage outputs (from -10 V to 10 V)
  • Isolation failure emulation (between high-voltage domain and low voltage domain)

Battery Current

  • 4 current emulation outputs (from -300 mV to 300 mV)
  • Short-circuit emulation
  • 2 shunt temperature sensor emulators

Pyrotechnic Switch

  • 2 pyrotechnic switch emulators
  • Status LED showing the pyrotechnic switch deployment

Crash Signal

  • 2 digital signal outputs

Buy Options

PACK-BJBEMUL-Image

Click to expand

  • PACK-BJBEMUL

  • Battery Junction Box Emulator.

  • Kit contains:

    • Assembled and tested the evaluation board in an antistatic bag
    • High-voltage measurement cable (orange)
    • Chassis connection cable (black)
    • Two points general-purpose cable (pyrotechnic switch connection, crash signal connection)
    • Current measurement and temperature measurement cable
  • $449.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
