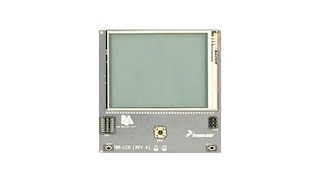

Graphical LCD Tower System Module

TWR-LCD
No Longer Manufactured

Roll over image to zoom in

The NXP® TWR-Graphical LCD module provides an easy way to add an LCD interface to your Tower® System designs.

The TWR-Graphical LCD module features a 3.2” QVGA TFT LCD display and attaches to the outer edge of the Tower System elevator modules by side expansion port connectors

This peripheral module is designed to be combined and used with other MCUs and peripheral modules in the Tower System

Product Details

Features

Connectivity

  • Preassembled with the included secondary TWR-ELEV

Display

  • 4.3" TFT LCD panel
  • WQVGA resolution (480 x 272)
  • 24-bit color depth (TrueColor)
  • 4-wire resistive touch overlay
  • CRTouch Ready Play®
  • X/Y resistive touch detection
  • Capacitive touch detection
  • I2C interface to Tower® System MCU

Support

  • PEG® and eGUI support drivers
  • Compatible with the RGB interface defined on the secondary Tower elevator

Buy Options

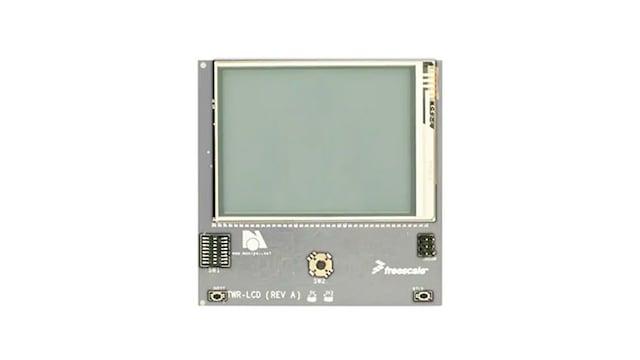

TWR-LCD-Image

Click to expand

TWR-LCD
No Longer Manufactured

Tower System, Peripheral Module, Graphical LCD.
