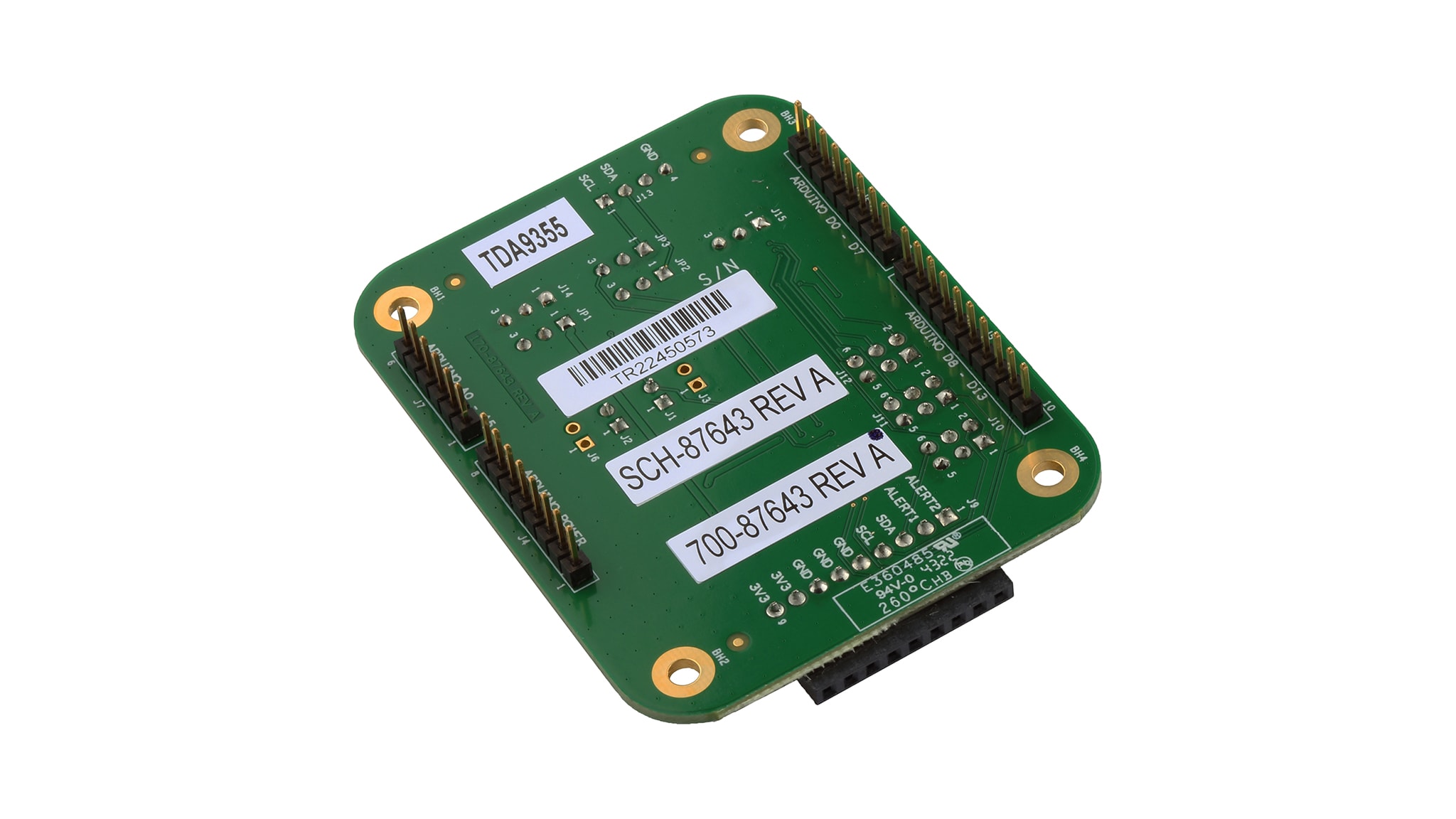

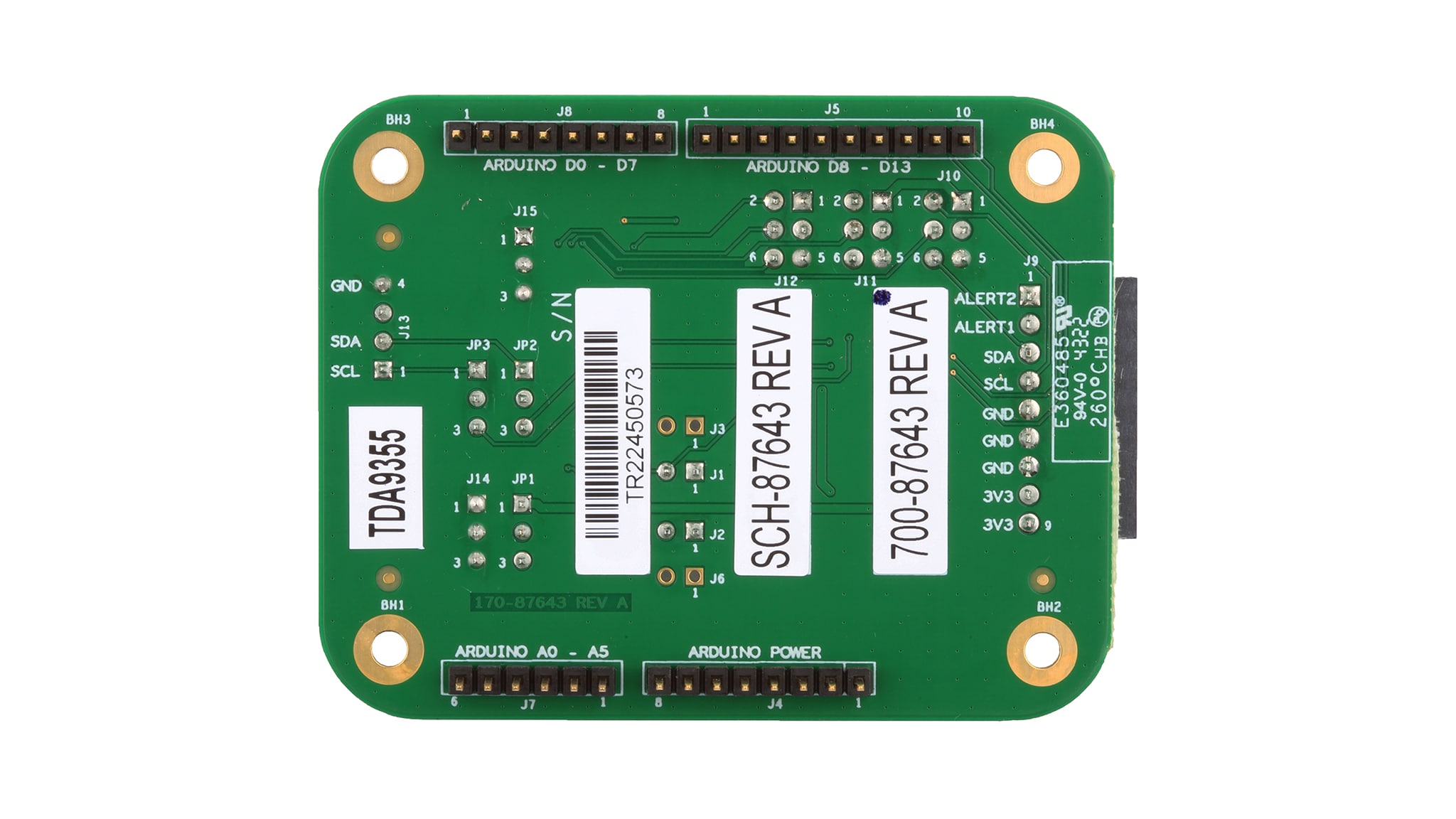

P3T1085UK Arduino® Shield Evaluation Board

P3T1085UK-ARD Expansion Board

Roll over image to zoom in

P3T1085UK is a ±0.5 °C accurate temperature-to-digital converter with a -40 °C to +125 °C range.

The temperature register always stores a 12 bit two's complement data, giving a temperature resolution of 0.0625 °C. P3T1085UK can be configured for different operation conditions: continuous conversion, one-shot mode or shutdown mode. The device supports 2-wire serial I3C (up to 12.5 MHz) and I²C (up to 3.4 MHz) as communication interface.

Product Details

Supported Devices

Sensors

I3C/I²C Digital Temp. Sensors

  • P3T1085UK: I3C/I²C-Bus ±0.5 °C Accurate Digital Temperature Sensor
  • P3T1084UK: I3C/I2C-Bus ±0.4 °C Accurate Digital Temperature Sensor

Features

  • +/-0.5 °C accurate temperature sensor
  • I3C/I²C support
  • Continuous conversion, one-short or shutdown mode
  • Ultra-small package WLCSP6 (0.84 x 1.18mm body; 0.4mm pitch)

Buy Options

P3T1085UK-ARD-Image

Click to expand

P3T1085UK-ARD
Active

P3T1085UK Arduino® Shield Evaluation Board.

  • Expansion Board: Yes
$16.50 USD
In Stock :5

Normally ships 1-2 business days

ADD TO CART
Order from distributors

Documentation

Quick reference to our documentation types

Filters

3 documents

Compact List

Design Resources

Select a section:

Related Hardware

Quick reference to our board types.
Filters

1 hardware offering

Design Files

Quick reference to our design files types.
Filters

2 design files

Software

Quick reference to our software types.

Filters

3 software files

  • HMI Design Software

    GUI for P3T1085UK Arduino Shield Evaluation Board

    ZIPRev 1.0Oct 4, 2022 16:11:00674.19 KBP3T1085UK-ARD-GUI
    Account Required
    Download
  • BSPs and Device Drivers

    P3T1085UK Temperature Sensor Driver with Demo App (SDK)

    GITHUBRev 1Apr 12, 2024 14:39:001 KBP3T1085UK-TEMPERATURE-SENSOR-DRIVER-DEMO-APP-SDK
    Download
  • BSPs and Device Drivers

    P3T1085UK Temperature Sensor - Application Code Hub

    MCUXPRESSORev 1Apr 12, 2024 15:45:001 KBP3T1085UK-TEMPERATURE-SENSOR-APPLICATION-CODE-HUB
    Download
