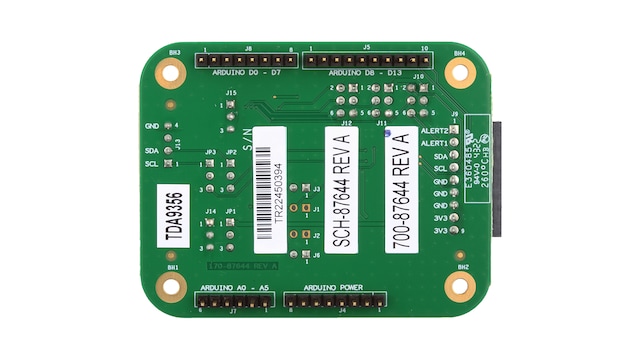

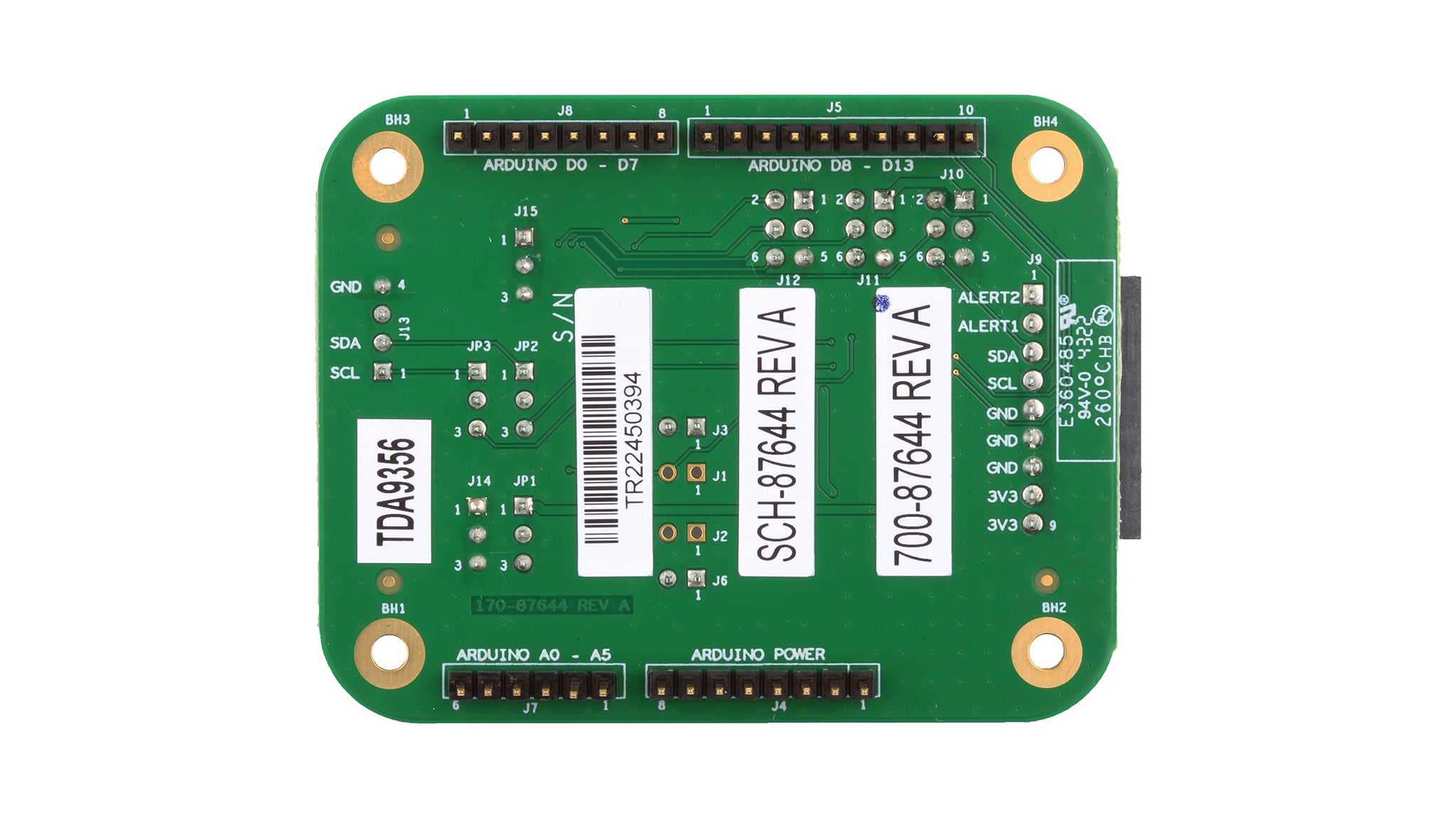

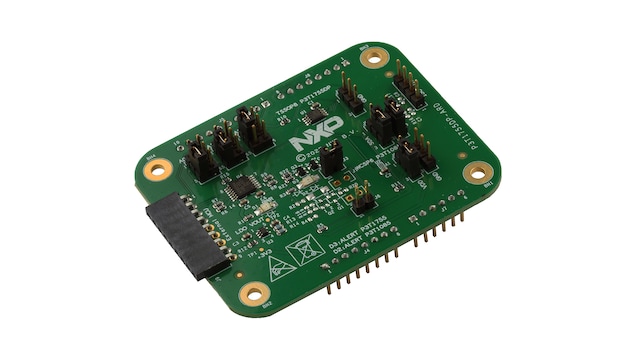

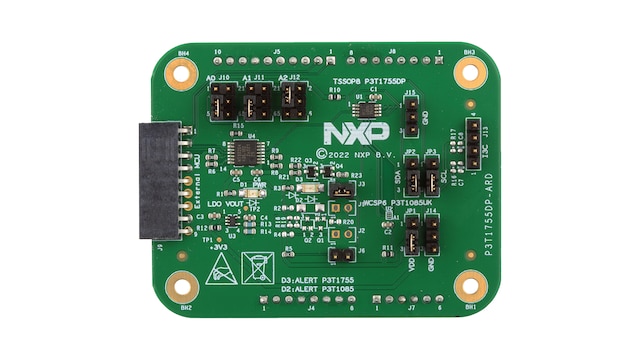

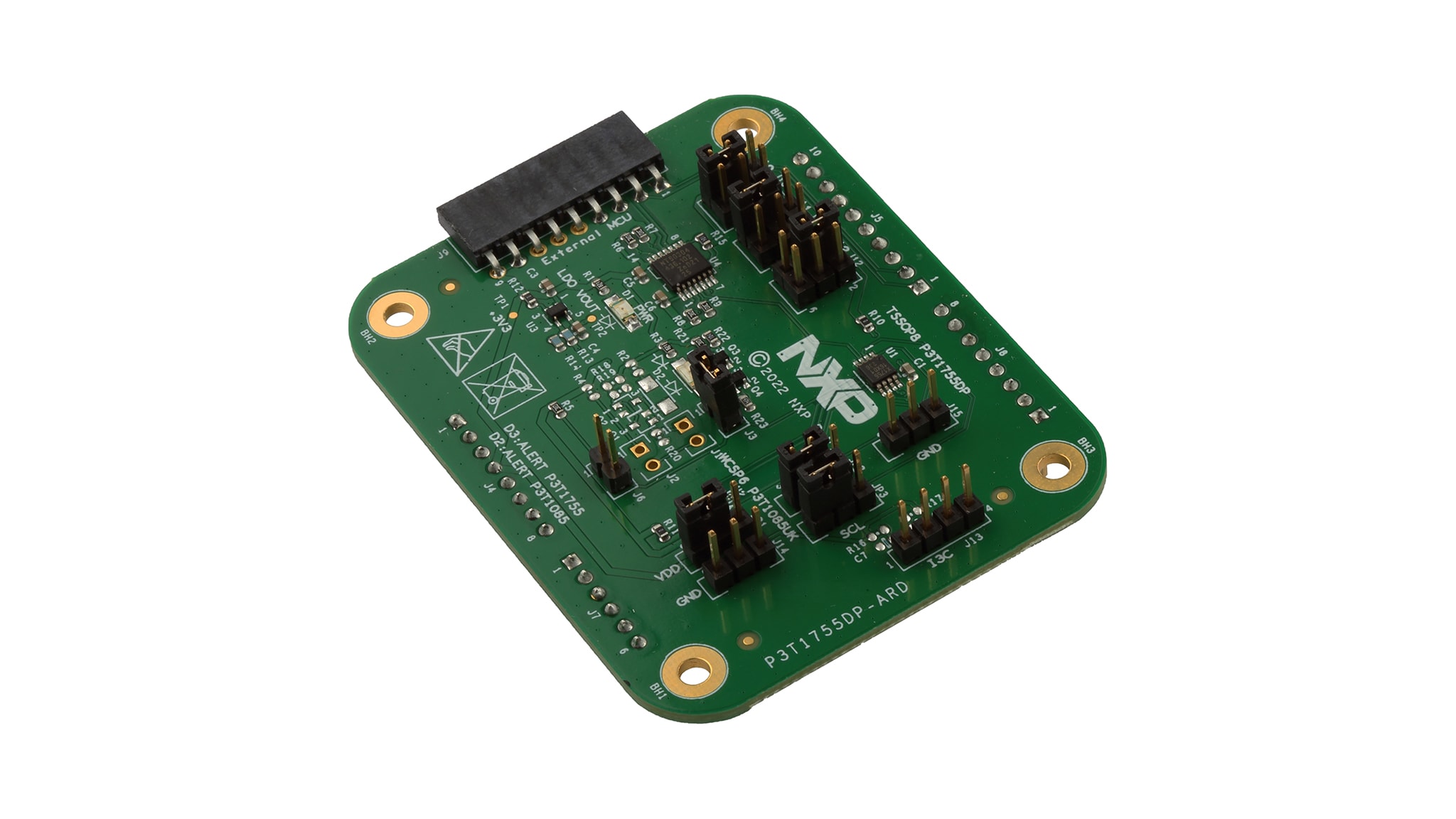

P3T1755DP Arduino® Shield Evaluation Board

P3T1755DP-ARD

Roll over image to zoom in

P3T1755DP is a ±0.5 °C accurate temperature-to-digital converter with a -40 °C to 125 °C range.

The temperature register always stores a 12 bit two's complement data, giving a temperature resolution of 0.0625 °C. P3T1755DP can be configured for different operation conditions: continuous conversion, one-shot mode or shutdown mode. The device supports 2-wire serial I3C (up to 12.5 MHz) and I2C (up to 3.4 MHz) as communication interface.

Product Details

Select a section:

Supported Devices

Sensors

I3C/I²C Digital Temp. Sensors

  • P3T1755DP: I3C/I2C-Bus ±0.5 °C Accurate Digital Temperature Sensor

Features

Key Features

  • +/-0.5 °C accurate temperature sensor
  • I3C / I2C support
  • Continuous conversion, one-short or shutdown mode
  • TSSOP8 package (3.0x3.0 mm body; 0.65 mm pitch) – Compatible with standard solutions on the market like LM75

Buy Options

P3T1755DP-ARD-Image

Click to expand

  • P3T1755DP-ARD

  • P3T1755DP Arduino® Shield Evaluation Board.

  • Kit contains:

    • P3T1755DP-ARD PCB Hardware
    • Extra cables for I3C interface
    • GUI for evaluation
    • Quick Start Guide
  • $60.50 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 17
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor

Documentation

Quick reference to our documentation types.

Filters

2 documents

Design Resources

Select a section:

Design Files

Filters

2 design files

  • Printed Circuit Boards and Schematics

    P3T1755DP-ARD Schematics

    PDFRev AAug 12, 2022 10:42:00454.0 KBSPF-87644
    Sign in required
    Download
  • Design Files - miscellaneous

    P3T1755DP-ARD Design Files

    ZIPRev 1.0Feb 1, 2023 10:45:001.7 MBP3T1755DP-ARD-DESIGN-FILES
    Sign in required
    Download

Software

Filters

1 software file

  • Graphics, UI, and Human Machine Interface

    GUI for P3T1755DP Arduino Shield Evaluation Board

    ZIPRev 1.0Oct 4, 2022 16:11:00690.4 KBP3T1755DP-ARD-GUI
    Sign in required
    Download

Note: For better experience, software downloads are recommended on desktop.
