I2C to SPI Bridge Evaluation Board

SC18IS606-EVB
Active

Roll over image to zoom in

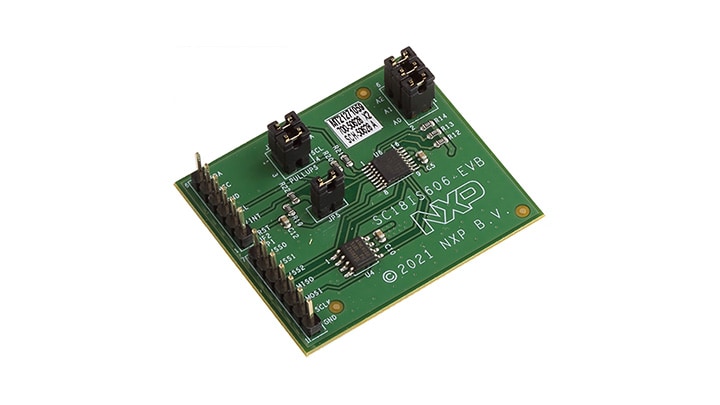

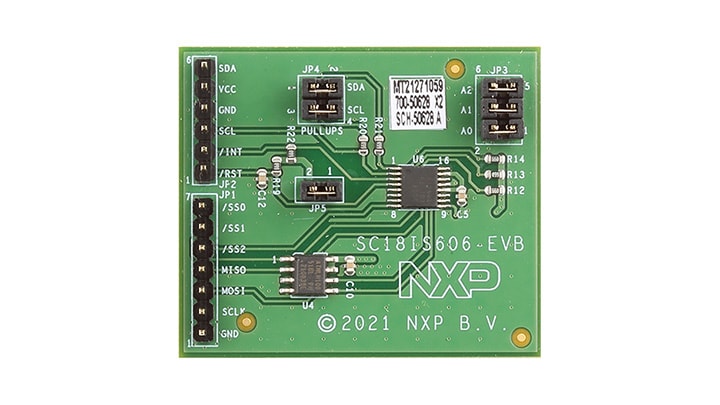

Easy to use board with mounted SC18IS606PW allowing connections to I2C controllers and SPI targets for protocol conversion.

Product Details

Supported Devices

Interfaces

Bridges

Features

UART Host Interface

  • With 400 kHz speed and 1024 byte data buffer

SPI Controller

  • Up to 1.8 Mbit/s with up to three SPI target select output pins

Three Configurable I/O Ports

  • Can be used for LED or other I/O purpose if not used for SPI target chip select

Wide Voltage Range

  • 1.71 V – 3.6 V operation with 5 V tolerant I/O pins

Temperature Range

  • -40 to 105 °C, can be used in high temperature industrial applications

Buy Options

SC18IS606-EVB-Image

Click to expand

SC18IS606-EVB
Active

I2C to SPI Bridge Evaluation Board.

    $22.22 USD
    In Stock :3

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
