I3C Interface Devices

  • Facebook
  • Twitter
  • LinkedIn
  • Printer

MIPI I3C (and the publicly available MIPI I3C basic) provides a scalable, medium-speed utility and control bus for connecting peripherals to an application processor. Its design incorporates key attributes from both I²C-bus and serial peripheral interfaces to provide a unified, high-performance, low-power interface solution that delivers a flexible upgrade path for I²C-bus and SPI implementers.

Data rate (SDR) throughput of up to 12.5 Mbit/s, in-band interrupt (IBI), dynamic address assignment and I²C backward compatibility are a few of our standout features.

  • Hubs
  • Switch/Voltage Level Translator
  • Multiplexers/Switches
  • Temperature Sensors
  • Voltage Level Translators
  • Design Resources
  • Additional Documents

Hubs

P3H2840HN

I3C Hub with 2 controller ports and 8 target ports (default configuration).

P3H2841HN

I3C Hub with 2 controller ports and 8 target ports (debug configuration).

P3H2440HN

I3C Hub with 2 controller ports and 4 target ports (default configuration).

P3H2441HN

I3C Hub with 2 controller ports and 4 target ports (debug configuration).

Switch/Voltage Level Translator

P3S0210BQ

Offers a dual bidirectional I3C bus 1:2 and 2:1 switch and voltage level translator that can be used for both open-drain as well as push-pull applications.

Multiplexers/Switches

P3S0200GM

Connects an upstream I²C-bus to any combination of downstream I²C buses.

Temperature Sensors

P3T1035xUK

P3T1035xUK is an I3C/I²C temperature-to-digital converter with ±0.5 °C accuracy from -40 °C to +125 °C range in WLCSP4.

P3T1084UK

P3T1084UK is a ±0.4°C accurate Temperature-to-Digital converter supporting I3C as well as I²C interface in a tiny WLCSP package.

P3T1085UK

P3T1085UK is a ±0.5°C accurate Temperature-to-Digital converter supporting I3C as well as I²C interface in a tiny WLCSP package.

P3T1750DP

P3T1750DP is a ±1 °C accurate Temperature-to-Digital converter supporting I3C as well as I²C interface in TSSOP package.

P3T1755DP

P3T1755DP is a ±0.5°C accurate Temperature-to-Digital converter supporting I3C as well as I²C interface in TSSOP package.

P3T2030xUK

P3T2030xUK is a ±2 °C temperature-to-digital converter with I3C interface in a 4-bump WLCSP rated from -40 °C to +125 °C.

Voltage Level Translators

P3A1604UK

P3A1604 is a 4-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation.

P3A9606JK

P3A9606JK is a 2-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation for traditional open drain I²C-bus/SMBus applications.

P3S0210 – New Dual Bidirectional I3C Switch and VLT

Enjoy the flexibility to use for both open-drain and push-pull applications, allowing for I3C bus and other applications like I²C-bus, SMBus and SPI protocols in a DHVQFN14 package.

Learn more

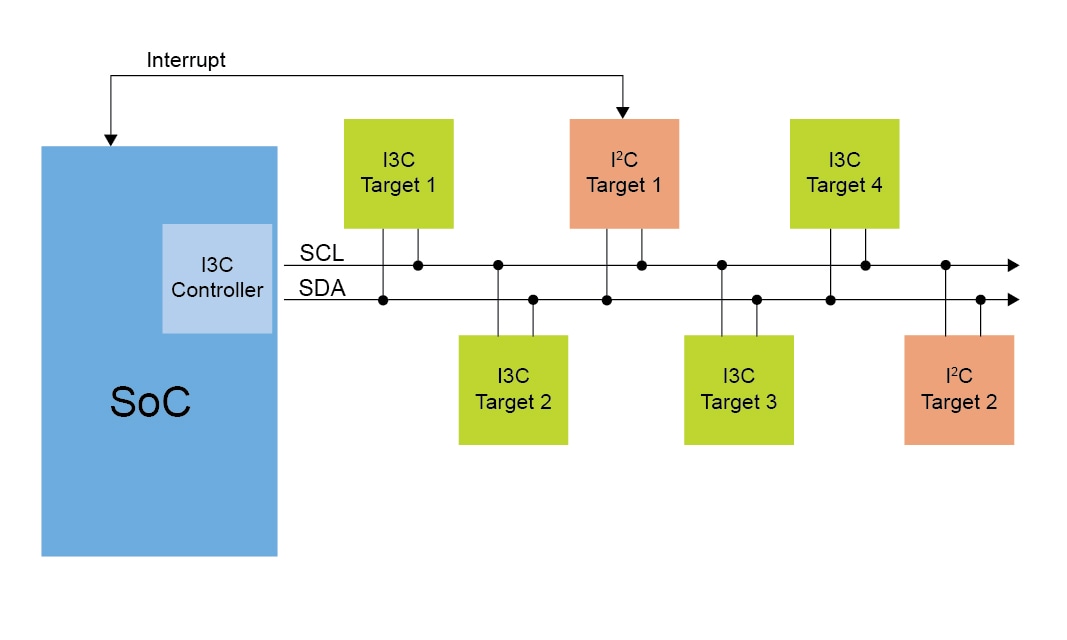

I3C Interface Devices Block Diagram

I3C Interface Devices

I²C-bus targets can coexist with I3C controllers operating at 12.5 MHz, enabling the migration of existing I²C-bus designs to the I3C specification.

Design Resources

Improved Inter Integrated Circuit (I3C) Standard

Video

This class will discuss the new features and benefits of the I3C bus and present distinct contrasts between the I²C and I3C specifications.

P3S0200GM I3C Switch with Hardware Select and Enable

Video

Learn more about the P3S0200GM I3C Switch for servers, workstations and notebooks with limited I3C I/Os.

Additional Documents

NXP System Management I²C, I3C and SPI Selector Guide

Selector guide of interface components for all your design needs.

Read the selector guide

Automotive Solutions Fact Sheet

Our robust portfolio of automotive-compliant products includes over 700 devices and solutions that enable breakthrough automotive designs.

Read the fact sheet

Solutions Around the Core: Analog, Interfaces and NFC

Discover other solutions that we offer for your designs.

Read the brochure

MIPI I3C Basic

A commonly needed bundle of I3C features for developers and other standards organizations.

Learn more
