UART to I2C Bridge Evaluation Board

SC18IM704-EVB

Roll over image to zoom in

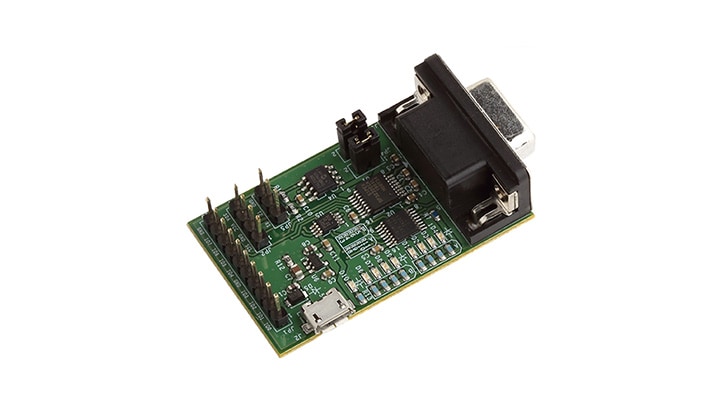

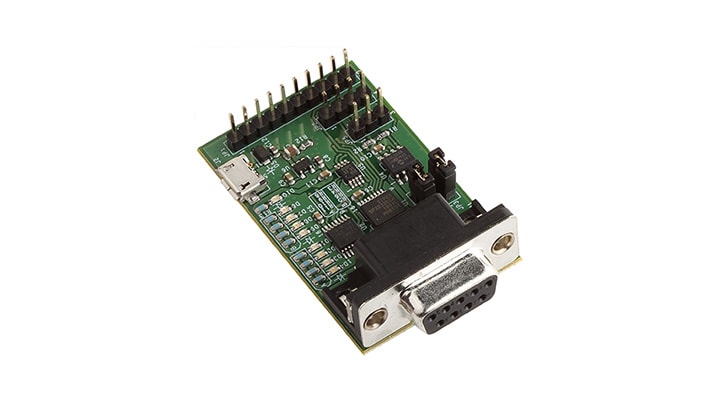

Easy to use board with mounted SC18IM704PW allowing connections to UART controllers and I2C targets for protocol conversion.

Product Details

Select a section:

Supported Devices

Peripherals and Logic

Bridges

Features

UART Host Interface

  • With high-speed RS-232 baud rate up to 460.8 kbps. After reset the baud rate is 9600 bps but then can be changed through the baud rate generator

I2C-bus Controller

  • Up to 375 kHz with 256 byte TX and RX FIFO and multiple master capable

Eight configurable I/O ports

  • Can be used for LED or other I/O purpose

Wide Voltage Range

  • 1.71 V – 3.6 V operation with 5 V tolerant I/O pins

Temperature Range

  • -40 to 105 °C, can be used in high temperature industrial applications

Buy Options

  • SC18IM704-EVB

  • UART to I2C Bridge Evaluation Board.

  • Kit Contains

    • Assembled and tested evaluation board in an anti-static bag
    • Wurth ferrite core
    • Instruction of how to use the ferrite core
  • $57.75 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 1
    • Shipping: Normally ships 1-2 business days
