Motor Control Demonstration System

APMOTOR56F8000
Active

Roll over image to zoom in

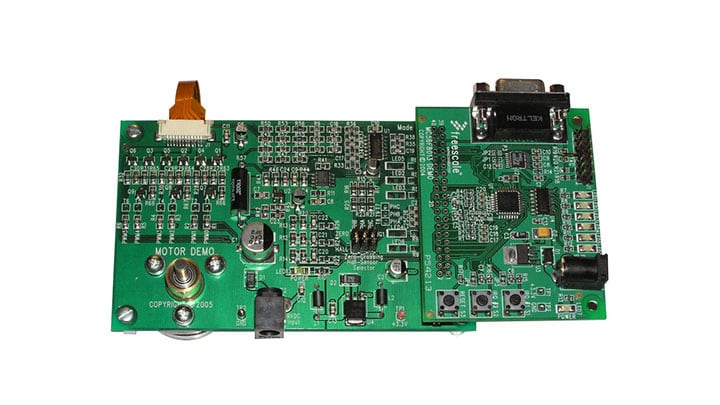

The Motor Control Demonstration System for the NXP® 56F801x and 56F800x Digital Signal Controllers is designed to provide a ready-made software development platform for small brushless DC motors.

  • The motor may be controlled by its Hall-Effect sensors or by sensorless techniques
  • The system can be used to develop real-time software and hardware products
  • Provides the features necessary to write, debug and demonstrate the functionality of the software

Kit Contains

  • APMOTOR56F8000 Kit Installation Guide
  • APMOTOR56F8000 Motor Control Daughter Card for DEMO56F8013 or DEMO56F8013-E
  • Demonstration software

Product Details

Supported Devices

Processors and Microcontrollers

16-Bit 56800E DSC Core

  • 56F801X: Digital Signal Controller for Motor Control Applications
  • 56F800x: MC56F8006 and MCF56F8002 Digital Signal Controllers

Features

  • Brushless Motor, Maxon EC-200187, 6 W 9 V
  • Motor Bus Voltage sense logic
  • Motor Bus Current sense logic
  • Back EMF Phase Voltage sense logic
  • Zero-Crossing logic
  • Hall-Effect/Zero-Crossing Selector
  • 3-Phase H-Bridge Power stage

Connectivity

  • Motor interface connector
  • Daughter Card connector, to allow the connection of the 56F8013 Demonstration Board

Power Management

  • Input power connector
  • LED power indicator
  • Power regulation logic

Debug

  • (Optional) Five onboard real-time user debugging LEDs

Buy Options

APMOTOR56F8000E-Image

Click to expand

  • $115.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
