The 56F832X/812X, a member of the 56800E core-based family of digital signal controllers (DSCs), combines the processing power of a DSP and the functionality of a microcontroller. Inside a compact 48 or 64-pin LQFP, the device features: up to 60 MIPS performance (at 60 MHz) along with 32 KB of on-chip Flash memory and a comprehensive set of peripherals. It extends the capabilities of the 56F8322/8122 by adding additional analog-to-digital converter (ADC) inputs and timer input/output pins, among other enhancements.

Data Sheet

Reference Manual

Product Details

Block Diagram

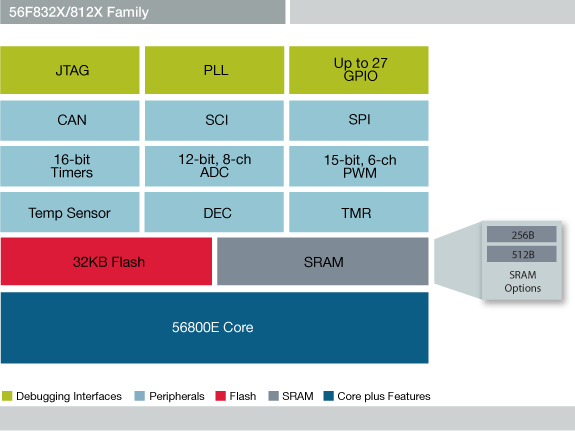

Freescale 56F832X/812X Digital Signal Controller Block Diagram

Get diagram PDF

Features

On-chip memory includes high-speed volatile and nonvolatile components:
- 32 KB of program Flash
- 4 or 8 KB of data RAM
- 8 KB of data Flash (832X Devices)
- 8 KB of data RAM
- 8 KB of boot Flash
JTAG/EOnCE for unobtrusive real-time debugging
Four 36-bit accumulators
Two 16-bit quad timer modules
FlexCAN (832X devices)
Up to two serial peripheral interfaces (SPIs) (832X Devices)
Software-programmable phase lock loop
Proven to deliver more control functionality with a smaller memory footprint than competing architectures

Comparison Table

Family Comparison

	MC56F8323	MC56F8122	MC56F8123	MC56F8322
PWM

Design Files

1 design file

Clear all

^Models
56F8322 BSDL

ZIPRev 0Oct 5, 20049.0 KB56F8322_BSDL
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Hardware

5 hardware offerings

Clear all

^{Emulators, Probes, and Programmers}
HW Programmers for Production Flash Programming

56800PFPROGR
^{Emulators, Probes, and Programmers}
Flash Programming Tool for 56F83xx/1xx and 56F801x Digital Signal Controllers. Requires installation of CodeWarrior 7.2 or higher.

56F8XXXFP
^{Emulators, Probes, and Programmers}
USB TAP for ONCE DSC

USBTAP_DSC
^{Emulators, Probes, and Programmers}
CodeWarrior^® Flash Programming Tool for 56800/E

56800CWFP
^{Evaluation and Development Boards}

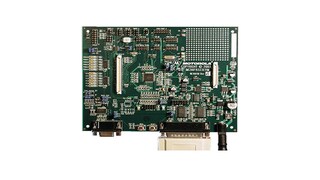

Evaluation Kit for MC56F832x and MC56F812x Digital Signal Controllers
