MAPS-56F84000 Evaluation Suite

MAPS-56F84000

Roll over image to zoom in

Product Details

Select a section:

Block Diagram

Choose a diagram:

MC56F84XX Digital Signal Controllers Block Diagram

MC56F84XX Digital Signal Controllers Block Diagram

MAPS-56G84000 controller board

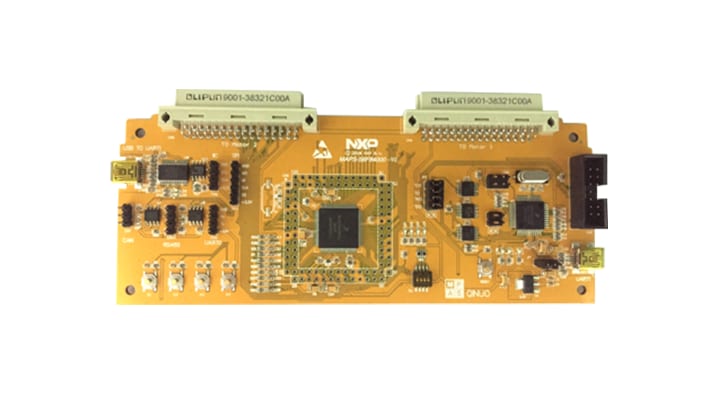

MAPS-56F84000 controller board

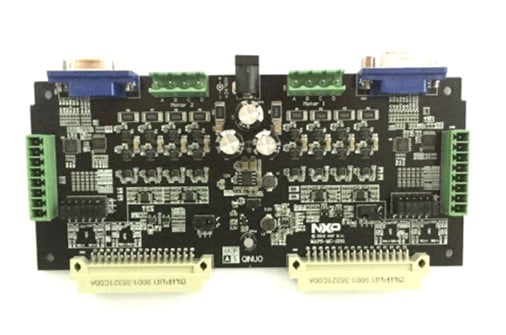

MAPS-MC-2IN1 dual motor driver board

Get to know the MAPS-MC-2IN1 dual motor driver board

Features

MCU

  • 32-bit DSC 56F84xxx, up to 100 MHz, 256 KB Flash, 32 KB SRAM, 1.8 to 3.6 V, -40 to 105°C, 100 LQFP
  • 32KB FlexMemory which can work as extra 32 KB Flash or 2 KB EEPROM
  • 8 channel 312ps high resolution PWM + 8 channel std PWM
  • 2x high speed 12-bit ADC, 16-bit SAR ADC, 4x Analog Comparator, 12-bit DAC
  • Inter-module crossbar, AOI logic operation unit

Resource

  • Support two PMSM/BLDC/Servo motor at the same time
  • Provide free sample code for general function evaluation of the controller
  • Provide free sample code for dual 3-phase motor control
  • Controller board with all kinds of communication interfaces, include SPI, I2C, UART, CAN, RS485, UART to USB
  • Driver board include two motor control driver circuit, each with four driver bridge, to support single 3-phase circuit or two 2-phase circuit. Each driver circuit include 3-phase current detection circuit, over current protection circuit, encoder interface, hall sensor interface and DB15 motor position sensor interface

Interface

  • On board OSBDM debug through USB interface, no need external debugger
  • Also support debugger through JTAG interface with PEMicro Multilink Universal debugger
