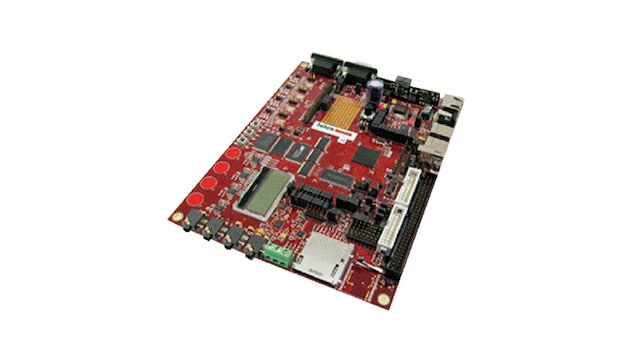

Hitex LPC4350 Evaluation board

OM13031

Roll over image to zoom in

The Hitex LPC4350 Evaluation board allows you to quickly and easily evaluate the LPC4300 family of microcontrollers. The microcontroller, board and the accompanying features make it a great starting point for your next Cortex-M4 project.

Populated with the LPC4350 to demonstrate LPC4300 features, the LPC4350 offers optimized dual-core performance, large internal memories and advanced peripherals.

Note: Same as Hitex LPC1850 Evaluation Board, but with LPC4350 component replacing LPC1850.

Order Number: OM13031

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

LPC4300 Arm Cortex-M4/M0

  • LPC4310FBD144: High Performance 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4/M0 Cores
  • LPC4310FET100: Dual-core Cortex®-M4/M0, 168 kB SRAM, CAN, AES, SPIFI, SGPIO, SCT
  • LPC4320FBD144: High Performance 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4/M0 Cores
  • LPC4320FET100: High Performance 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4/M0 Cores
  • LPC4330FBD144: Dual-core Cortex®-M4/M0, 264 kB SRAM, 2 HS USB with on-chip PHY, Ethernet, CAN, AES, SPIFI, SGPIO, SCT
  • LPC4330FET100: Dual-core Cortex®-M4/M0, 264 kB SRAM, 2 HS USB with on-chip PHY, Ethernet, CAN, AES, SPIFI, SGPIO, SCT
  • LPC4330FET180: Dual-core Cortex®-M4/M0, 264 kB SRAM, 2 HS USB with on-chip PHY, Ethernet, CAN, AES, SPIFI, SGPIO, SCT
  • LPC4330FET256: Dual-core Cortex®-M4/M0, 264 kB SRAM, 2 HS USB with on-chip PHY, Ethernet, CAN, AES, SPIFI, SGPIO, SCT
  • LPC4333FET256: High Performance 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4/M0 Cores
  • LPC4337FET256: 32-Bit Arm® Cortex®-M4/M0 MCU; Up to 1 MB Flash and 136 KB SRAM; Ethernet, Two High-Speed USB, LCD, EMC
  • LPC4350FET180: Dual-core Cortex®-M4/M0, 264 kB SRAM, 2 HS USB with on-chip PHY, Ethernet, LCD, CAN, AES, SPIFI, SGPIO, SCT
  • LPC4350FET256: Dual-core Cortex®-M4/M0, 264 kB SRAM, 2 HS USB with on-chip PHY, Ethernet, LCD, CAN, AES, SPIFI, SGPIO, SCT
  • LPC4353FET256: High Performance 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4/M0 Cores
  • LPC4357FET256: High Performance 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4/M0 Cores

Features

Connectivity

  • CAN
  • UART
  • Ethernet
  • USB (Host, Device, OTG)
  • SD card

Power Management

  • Power-over-Ethernet

Debug

  • Debug with standard Arm JTAG and JTAG + Trace connector

Sensors

  • Temperature sensor

Display

  • Small onboard display and NXP® standard display

Audio

  • Audio IN an OUT, microphone IN, headphones OUT and a D-Class amplifier

Support

  • Ready for Jennic ZigBee module

Buy Options

  • OM13031

  • Hitex LPC4350 Evaluation board.

    • Hitex LPC4350 Evaluation Board
    • USB Cable
  • $391.00 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor

Design Resources

Select a section:

Design Files

Filters

3 design files

  • Printed Circuit Boards and Schematics

    Hitex LPC1850/4350 - Schematics

    PDFRev 1.0Dec 22, 2012256.1 KBHITEX-LPC1850-4350-SCHEMATICS
    Download
  • Printed Circuit Boards and Schematics

    Hitex LPC1850/4350 - Component Placement

    PDFRev 1.0Dec 22, 201180.1 KBHitex-LPC1850-4350-CP
    Download
  • Design Files - miscellaneous

    Hitex LPC1850/4350 - Quickstart Guide

    PDFRev 1.4Jun 25, 2012930.1 KBHitex-LPC1850-4350-QG
    Download

Software

Filters

1 software file

  • BSP, Drivers and Middleware

    Hitex LPC1850 Eval Board Examples

    ZIPRev 1.0Nov 23, 2011249.1 KBHITEX_LPC1850_EVAL_BOARD_EXAMP
    Download
