LPCXpresso802 for the LPC802 family of MCUs

OM40000
Active

Roll over image to zoom in

The LPCXpresso802 board provides a powerful and flexible development system for NXP’s low-end Arm® Cortex®-M0+ based MCUs. The LPCXpresso802 board was created to enable evaluation of and rapid prototyping of the LPC802 family of MCUs. The board is compatible with NXP’s MCUXpresso Integrated Development Environment (IDE) and other popular toolchains including IAR and Keil.

Product Details

Supported Devices

Processors and Microcontrollers

LPC800 Arm Cortex-M0+

  • LPC80X: LPC800: 32-Bit Arm® Cortex®-M0+-Based Low-Cost MCU

Features

Processor

  • LPC802 Arm Cortex-M0+ MCU running at up to 15 MHz
  • Compatible with MCUXpresso IDE and other popular toolchains (incl. IAR and Keil®)

Memory

  • 1 MB Win bond SPI flash

Connectivity

  • I²C Grove connector for easy connection of sensors, or to use the LPCXpresso802 as an I/O expander peripheral

Debug

  • On-board CMSIS-DAP (debug probe) with VCOM port, based on LPC11U35 MCU
  • Debug connector to allow debug of target LPC802 MCU using an external probe

Sensors

  • NXP LM75BDP temperature sensor

Components

  • LPC802 ISP and User/Wake buttons
  • LPC802 Reset button

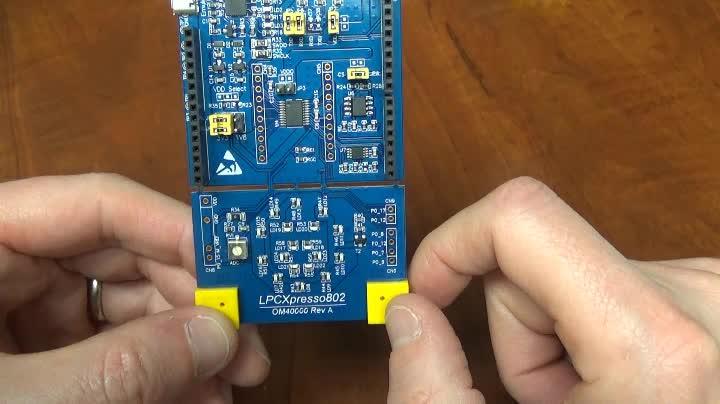

  • Detachable board section with LEDs and potentiometer for prototyping and demo development

Buy Options

OM40000-Image

Click to expand

  • OM40000
    Active

  • LPCXpresso802 Development Board for the LPC802 family of MCUs.

    • LPCXpresso802 board
  • $23.69 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 4
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
