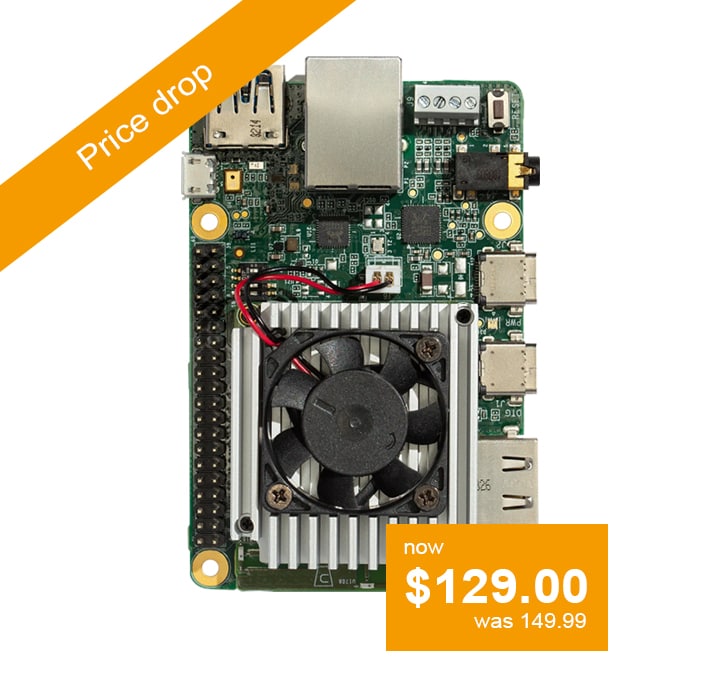

Coral Dev Board TPU

CORAL-EDGE-TPU

The Coral Dev Board kit consists of a system-on-module (SOM) and a baseboard. The SOM, based on the iMX 8M applications processor, also contains LPDDR4 memory, eMMC storage, dual band Wi-Fi and the Edge TPU. The Edge TPU is a small ASIC designed by Google that enables high performance, local inference at low power– transforming machine learning (ML) edge computing capabilities.

The Coral Dev Board TPU’s small form factor enables rapid prototyping covering internet-of-things (IOT) and general embedded systems that demand fast on-device ML inference. Users can then quickly move from prototyping to production using the SOM combined with their custom baseboard using board-to-board connectors.

Edge TPU key benefits:

  • High speed TensorFlow Lite inferencing
  • SoC + ML + connectivity running on Linux
  • Low power
  • Small footprint

Product Details

Features

Edge TPU Module

  • CPU: i.MX 8M Applications Processor (quad Cortex-A53, Cortex-M4F)
  • GPU: Integrated GC7000 Lite Graphics
  • ML accelerator: Google Edge TPU coprocessor
  • RAM: 1 GB LPDDR4
  • Flash memory: 8 GB eMMC
  • Wireless: Wi-Fi 2x2 MIMO (802.11b/g/n/ac 2.4/5GHz) Bluetooth 4.1
  • Dimensions: 48 mm x 40 mm x 5 mm

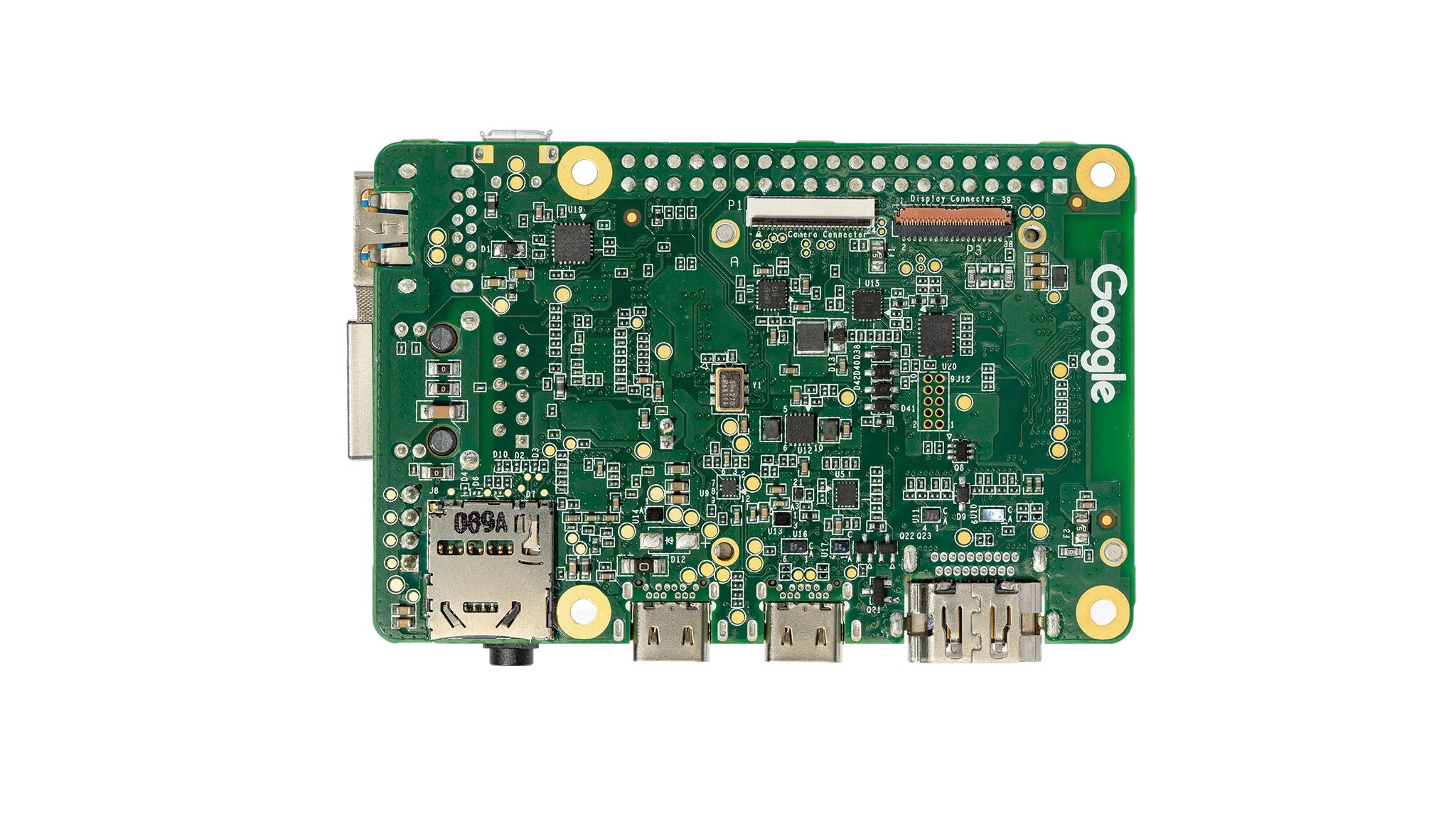

Baseboard

  • Flash memory: MicroSD slot
  • USB: Type-C OTG Type-C power Type-A 3.0 host Micro-B serial console
  • LAN: Gigabit Ethernet port
  • Audio: 3.5 mm audio jack (CTIA-compliant) Digital PDM microphone (x2)
  • 2.54 mm 4-pin terminal for stereo speakers
  • Video: HDMI 2.0a (full size) 39-pin FFC connector for MIPI-DSI display (4-lane) 24-pin FFC connector for MIPI-CSI2 camera (4-lane)
  • GPIO: 3.3 V power rail 40 - 255 ohms programmable impedance ~82 mA max current
  • Power: 5 V DC (USB Type-C)
  • Dimensions: 88 mm x 60 mm x 24 mm

Buy Options

G950-01455-01-Image

Click to expand

G950-01455-01
Active

Coral Dev Board TPU .
