i.MX 8ULP Applications Processor Family

i.MX8ULP
  • Preproduction
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.

Click over video to play

Product Details

Block Diagram

i.MX8ULP Applications Processors

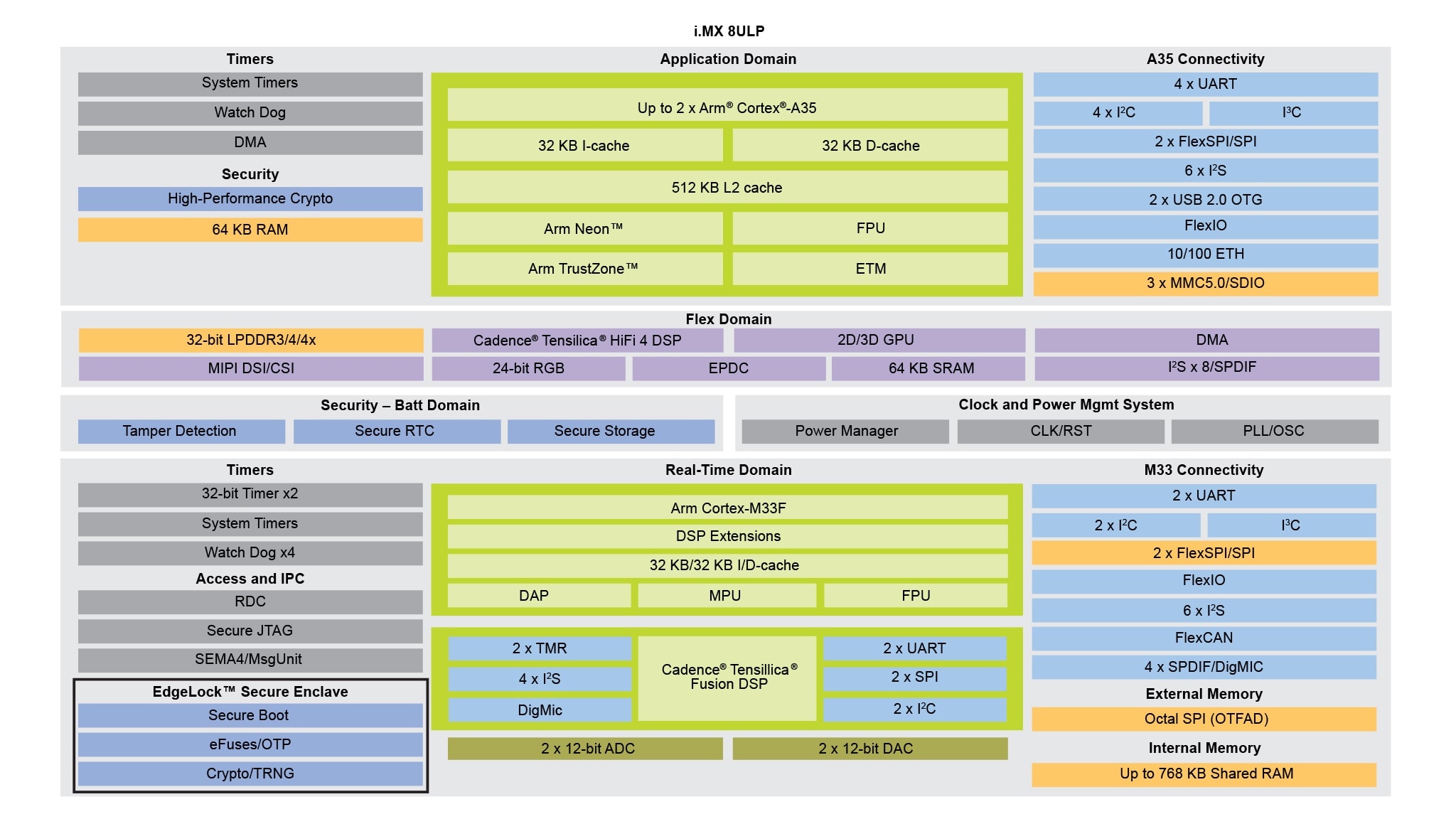

i.MX8ULP Applications Processors Block Diagram

Features

CPU

  • Up to two Arm® Cortex®-A35 @ 1.0 GHz
  • Arm Cortex-M33 @ 216 MHz
  • Cadence® Tensillica® Hifi 4 DSP @600 MHz for advanced audio, voice and ML processing and Fusion DSP @200 MHz for low-power voice and sensor hub processing
  • EdgeLockTM secure enclave
  • RISC-V powered Power Management Subsystem (µpower)

Memory

  • 896 KB Total On Chip SRAM

External Memory

  • LPDDR3/LPDDR4/LPDDR4X
  • SPI-NOR
  • SPI-NAND

Graphics

  • 3D GPU includes: Open GL® ES 3.1, OpenCLTM, Vulkan®
  • 2D GPU
  • 1x MIPI DSI (4-lane) with PHY
    • Up-to 24-bit RGB (DBI/DPI)
  • Color EPD Display

Connectivity

  • 10/100 Ethernet
  • FlexCAN

Display/Camera

  • 1x MIPI CSI (2-lane) with PHY

Packaging

  • FCBGA 9.4 X 9.4 mm2
  • MAPBGA 15 x 15 mm2

Temperature Range

  • -40°C – 105°C

Product Programs

EdgeLock® Secure Enclave

Building on its strong history of providing turnkey security solutions, NXP introduces the EdgeLock secure enclave, a pre-configured security subsystem that simplifies implementation of complex security technologies and helps designers avoid costly errors.
