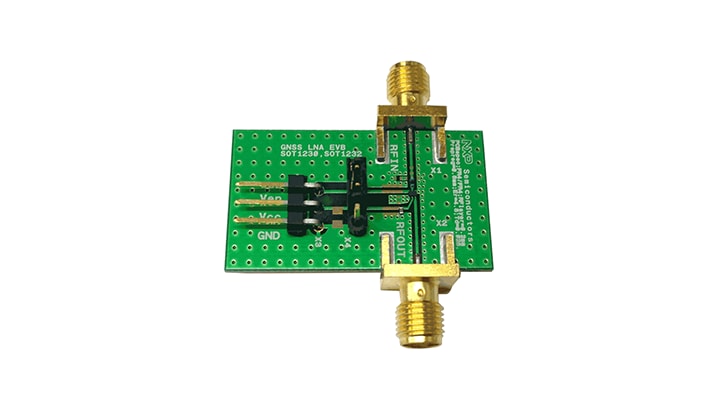

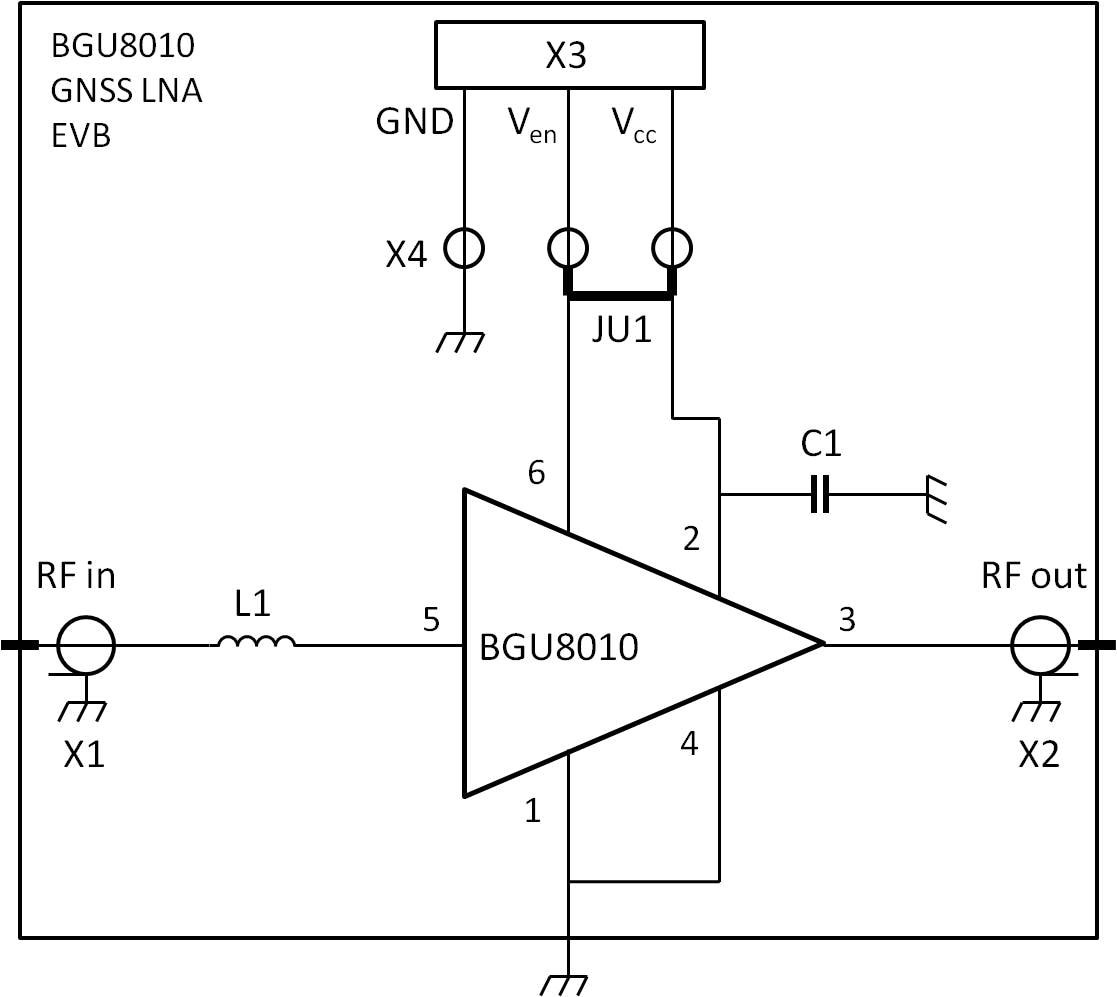

BGU8010 GNSS LNA Evaluation Board

Roll over image to zoom in

Supported Devices

Products

No Longer Manufactured

Features

Key Features

  • Covers full GNSS L1 band, from 1559 MHz to 1610 MHz
  • ESD protection on all pins (HBM > 2 kV)
  • 1.1 mm x 0.9 mm x 0.5 mm; 0.4 mm pitch: SOT1230
  • 180 GHz transit frequency - SiGe:C technology
  • Noise figure (NF) = 0.90 dB
  • Gain = 16.1 dB
  • Input 1 dB compression point of -9 dBm
  • Out of band IP3i of 0 dBm

Connectivity

  • Requires only one input matching inductor and one supply decoupling capacitor
  • Input and output DC decoupled
  • Integrated matching for the output

Power Management

  • Supply voltage: 1.5 V to 3.1 V
  • Optimized performance at very low supply current of 3.1 mA
  • Power-down mode current consumption < 1 µA
