Differential, Gauge and Absolute Pressure Sensor (0 to 200 kPa)
MPX2200 series pressure sensors offer silicon piezoresistive solutions for a variety of industrial and medical applications.
- Provides a highly accurate and linear voltage output directly proportional to the applied pressure
- Includes a single monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip
- Delivers a laser-trimmed chip for precise span, offset calibration and temperature compensation
Product Details
Features
Key Features
- Temperature compensated over 0 °C to +85 °C
- ±0.25 percent linearity (MPX2200D)

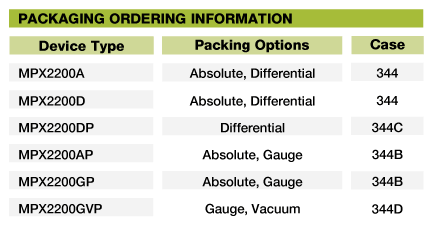

- Available in absolute, differential and gauge configurations
- Easy-to-use chip carrier package options
