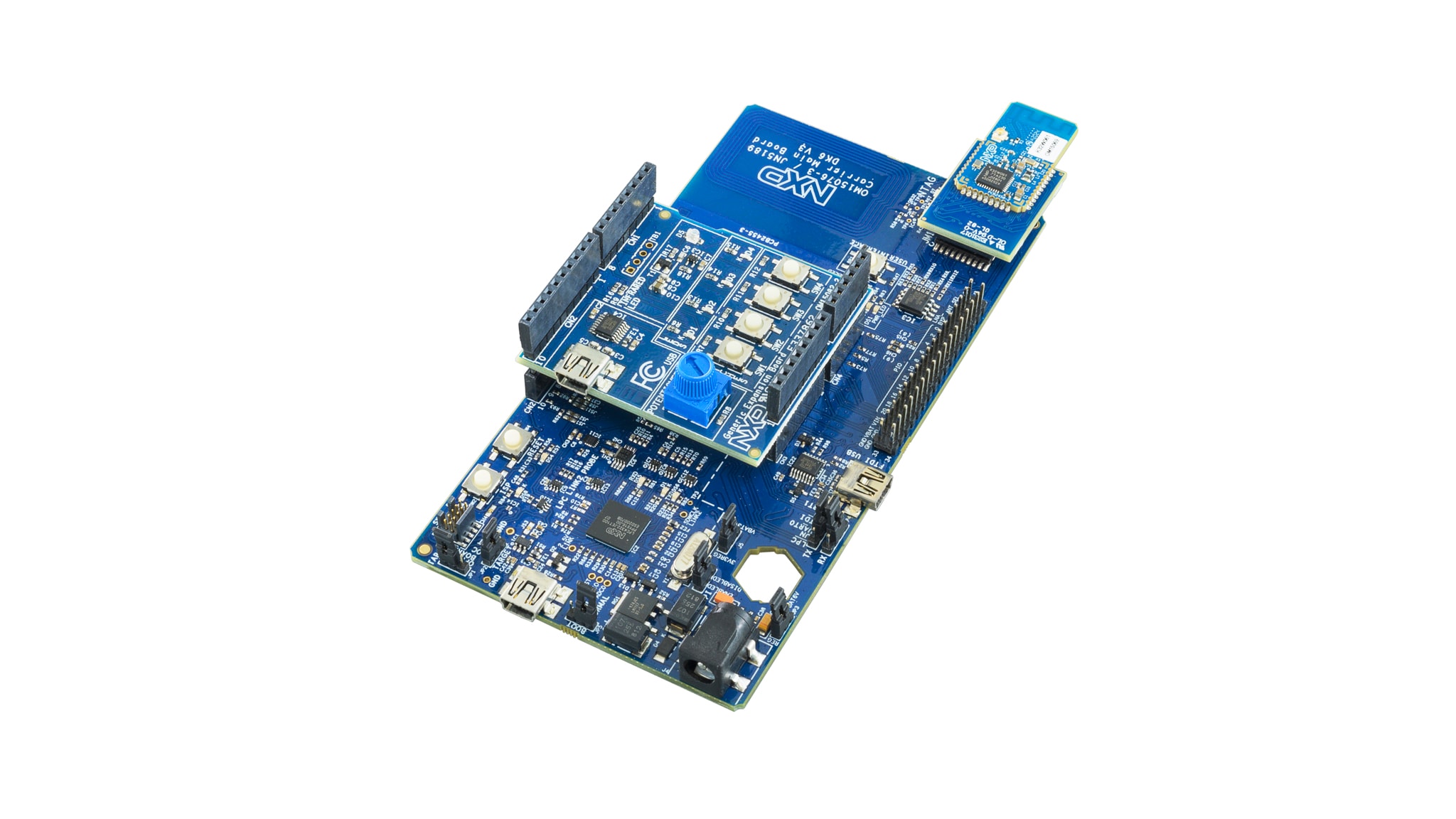

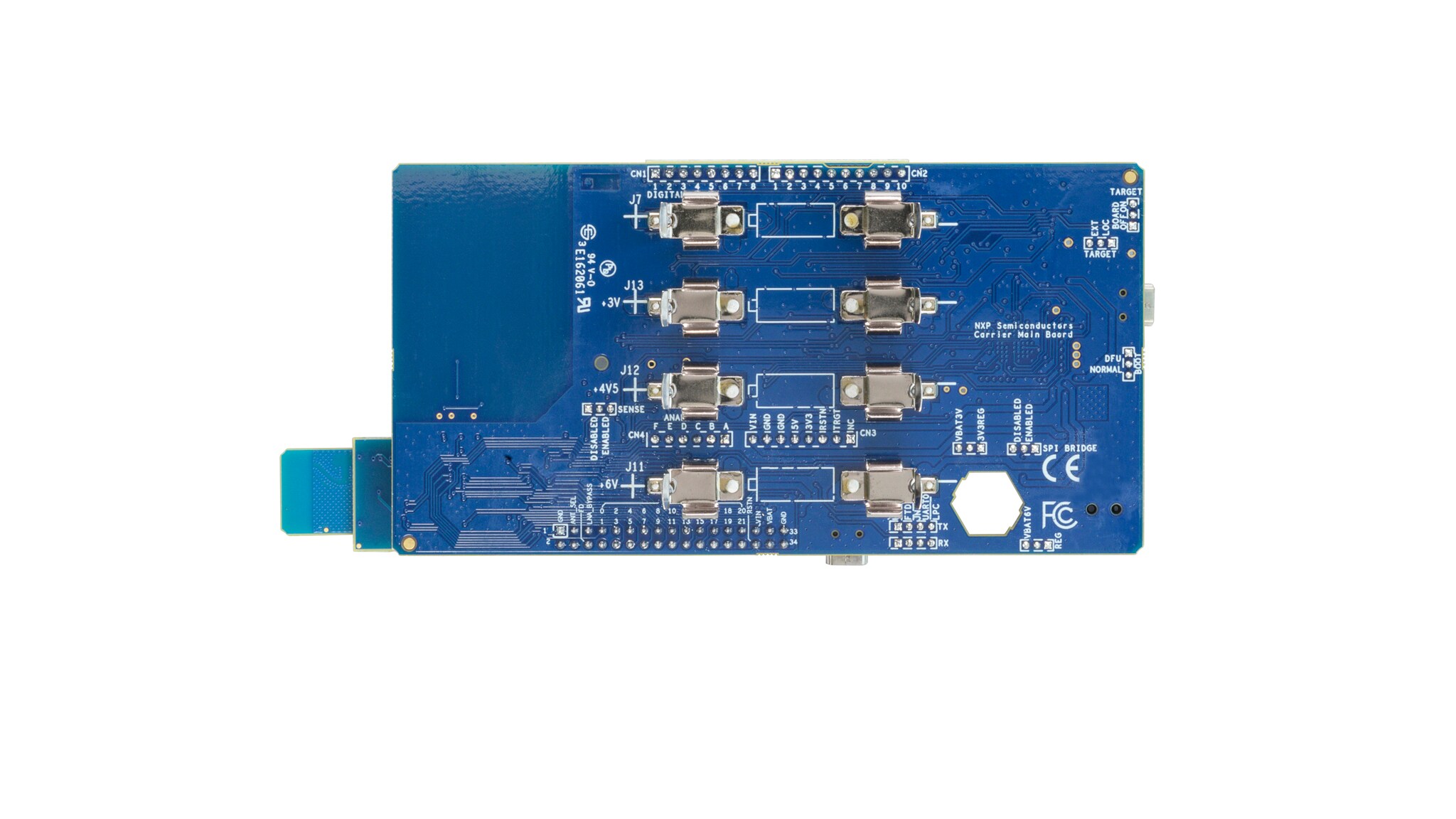

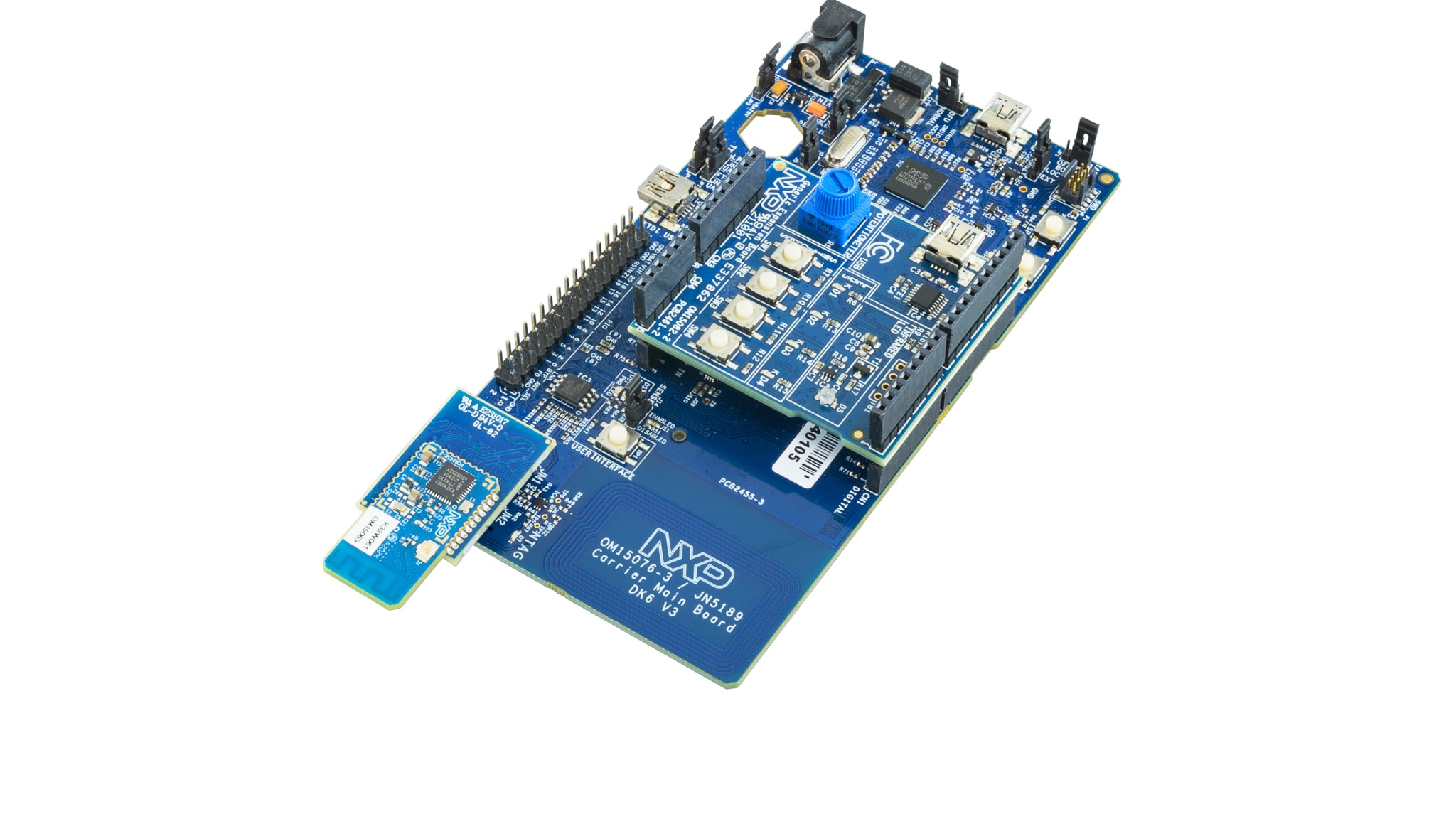

End-Node Matter with Thread Development Platform

END-NODE-MATTER-THREAD Active

Roll over image to zoom in

NXP’s end-node Matter with Thread Development Platform includes the hardware, software and enablement needed to create a standalone end node using the K32W0x MCU. Leveraging the IOTZTB-DK06 development board, customers can use the Matter software found at GitHub.

Block Diagram

End-Node Matter with Thread Development Platform

End-node Matter with Thread Development Platform
Get diagram PDF

Supported Devices

Wireless Connectivity

Multiprotocol MCUs

  • K32W041AM-A: K32W041AM/A: High Performance, Secure and Low-Power MCU for Zigbee®, Thread™ and Bluetooth® LE 5.0 with High Tx Power Option
  • K32W061_41: K32W061/41: High-Performance, Secure and Ultra-Low-Power MCU for Zigbee®,Thread™, and Bluetooth® LE 5.0 with Built-In NFC Option

Features

K32W0x Multiprotocol Wireless MCU

  • Robust and reliable connectivity: Matter over Thread (wireless mesh)
  • Bluetooth Low Energy for commissioning Matter devices
  • Low power for extended battery life
  • Single MCU to run application and connectivity stacks

Target Matter Device Types

  • Sensors, actuators
  • Smart plugs
  • Smart lighting
  • Battery-operated devices

Development Platform Features

  • User guide describing how to get the development platform up and running
  • Development boards orderable from the table below
  • Complimentary development software downloadable at GitHub
  • Step-by-step set-up video when you click the Getting Started button above

Buy Options

IOTZTB-DK006-Image

Click to expand

  • IOTZTB-DK006
    Active

  • Advanced Development Kit for K32W061 and JN5189/88.

    • 3 Motherboards
    • Daughterboards: Generic Switch Node, Light/Sensor Node, NFC Reader/Writer
    • 3 x K32W061 Upgrade Boards
    • 3 x JN5189 Upgrade boards
    • On-board CMSIS offering Serial Wire Debug (SWD) and UART interfaces
    • On-board 3.3 V from USB port, batteries, or external power supply options
    • Arduino compatible interface to easy system prototyping
    • USB dongle
  • $525.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 25
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors

Documentation

Quick reference to our documentation types.

Filters

1 documents

Related Hardware

Quick reference to our board types.
Filters

2 hardware offerings

Design Files

Quick reference to our design files types.
Filters

1 design file

Software

Quick reference to our software types.

Filters

2 software files

  • Middleware

    End Node Development Platform Matter

    EXTERNALRev 1.3Jun 26, 2024 13:00:00ENDNODE-DEVPLA-MATTER-SW
    Download
  • Middleware

    EZ-Connect
