Name: End Node Matter Thread WiFi Development Platforms
Price: 30.00 USD
Availability: InStock

Product Details

Block Diagram

Choose a diagram:

RW612
MCX W K32W

RW612

MCX W K32W

Get diagram PDF

Supported Devices

Wireless Connectivity

Wireless MCUs

K32W041AM-A: K32W041AM/A: High Performance, Secure and Low-Power MCU for Zigbee®, Thread™ and Bluetooth® LE 5.0 with High Tx Power Option
K32W148: Secure and Ultra-Low-Power MCU for Matter Over Thread™ and Bluetooth® LE 5.3
K32W061_41: K32W061/41: High-Performance, Secure and Ultra-Low-Power MCU for Zigbee®,Thread™, and Bluetooth® LE 5.0 with Built-In NFC Option

Wi-Fi^® + Bluetooth^® + 802.15.4

RW612: Wireless MCU with Integrated Tri-radio: 1x1 Wi-Fi^® 6 + Bluetooth^® Low Energy 5.4 / 802.15.4

Processors and Microcontrollers

MCX W Series Microcontrollers

MCX-W72: MCX W72 Secure and Ultra-Low-Power MCUs for Bluetooth LE, Channel Sounding, Matter, Thread, Zigbee

Features

Multiprotocol Wireless MCUs

Robust and reliable connectivity: Matter with Thread wireless mesh (MCX W, K32W0x, K32W1x)
Tri-radio wireless MCU: Matter with Thread, Matter with Wi-Fi (RW612)
Bluetooth Low Energy for commissioning Matter devices
Single MCU to run application and connectivity stacks

Target Matter Device Types

Sensors, actuators
Smart plugs
Smart lighting
Smart window shades
Battery-operated devices

Development Platform Features

User guide describing how to get the development platform up and running
Orderable development boards
Complimentary development software downloadable from GitHub

Platforms

Development Platform	Transports	Host processor	Software release link
End Node Development Platforms
	Thread	K32W1	Releases · NXP/matter · GitHub
	Thread	K32W0	Releases · NXP/matter · GitHub
	Thread	MCX W72	Releases · NXP/matter · GitHub
	Wi-Fi, Thread	RW61x	Releases · NXP/matter · GitHub

Partner Modules

1x1 Wi-Fi^® 6 + Bluetooth^® Low Energy 5.3 / 802.15.4

Product	Wi-Fi I/F	Bluetooth I/F	Operating Temp	Antenna Type	Antenna #	Module Type	Module Size	Qualifications	Recommended Host
AW-CU570 AzureWave	-	-	-30 to 85	Embedded antenna, U.FL Connector(s)	2	SMD	28 x 15 x 3.15	FCC, NCC	Hostless
LBES0ZZ2FR-580 Murata	-	-	-40 to 85	Antenna pin(s)	1	SMD	12 x 11 x 1.4	TBD	Hostless
IRIS-W101-00B u-blox	-	-	-40 to 85	Antenna pin(s)	1	SMD	14.6 x 16.8 x 2.1	ISO-16750	i.MX RT
IRIS-W101-10B u-blox	-	-	-40 to 85	Antenna pin(s)	1	SMD	14.6 x 16.8 x 2.1	ISO-16750	i.MX RT, MCX
IRIS-W106-00B u-blox	-	-	-40 to 85	Embedded antenna	1	SMD	14.6 x 20.9 x 2.1	ISO-16750	i.MX RT
IRIS-W106-10B u-blox	-	-	-40 to 85	Embedded antenna	1	SMD	14.6 x 20.9 x 2.1	ISO-16750	i.MX RT, MCX

Buy Options

Click to expand

FRDM-MCXW72
Active

FRDM Development Board for MCXW72 (2 MB Flash) Bluetooth Channel Sounding MCU.

Peripherals: GPIO, I²C, SPI, CAN, ADC, UART
Connector Type: CAN, mikroBUS, Pmod, Arduino
Power Management: DC/DC Buck mode
Processing: Arm® Cortex®-M33

$30.00 USD

In Stock :34

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

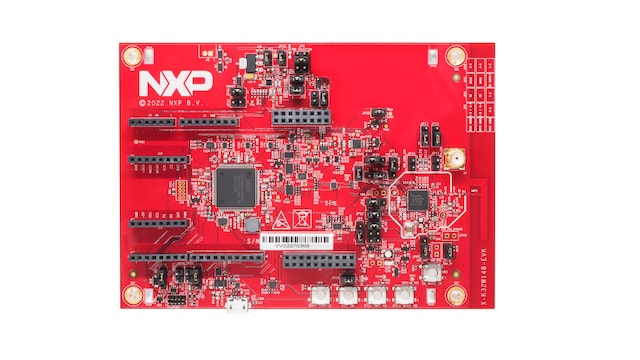

K32W148-EVK
Active

End Node Matter (Thread, Wi-Fi) Development Platforms.

Kit Contains

Kit Contains:

Evaluation Board
USB Cable

Peripherals: USB
Connector Type: mikroBUS, Arduino UNO
Power Management: Low Power Modes
Processing: Arm® Cortex®-M33

$155.00 USD

In Stock :27

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

IOTZTB-DK006
Active

Advanced Development Kit for K32W061 and JN5189/88.

Kit Contains

3 Motherboards
Daughterboards: Generic Switch Node, Light/Sensor Node, NFC Reader/Writer
3 x K32W061 Upgrade Boards
3 x JN5189 Upgrade boards
On-board CMSIS offering Serial Wire Debug (SWD) and UART interfaces
On-board 3.3 V from USB port, batteries, or external power supply options
Arduino compatible interface to easy system prototyping
USB dongle

$525.00 USD

In Stock :15

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

FRDM-RW612
Active

End Node Matter (Thread, Wi-Fi) Development Platforms.

$30.00 USD

In Stock :10

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

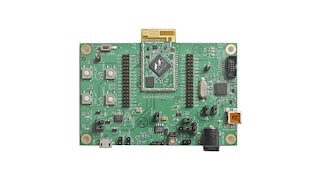

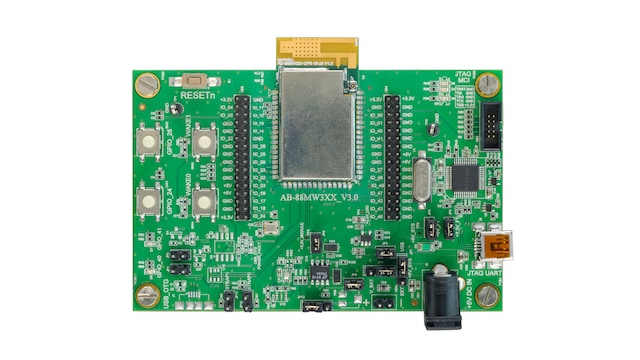

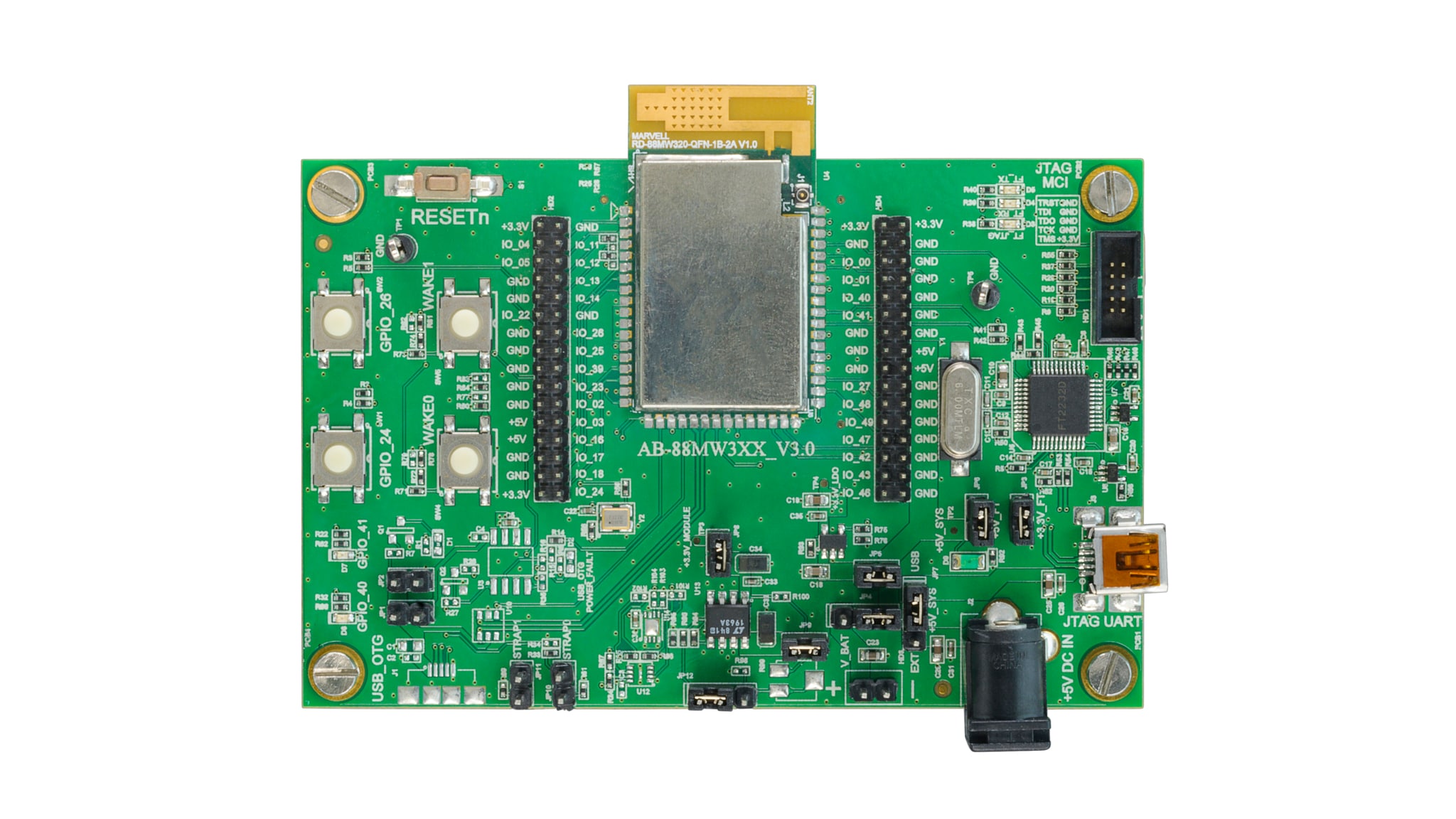

RDMW320-R0
Active

88MW32X AWS IoT Starter Kit.

$235.41 USD

In Stock :5

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Documentation

Quick reference to our documentation types

1 documents

Compact List

NXP Dual PAN Feature and Performance Results[AN14476]

HTML | PDFFeb 20, 2025Rev 1.0

Design Resources

Related Hardware

Quick reference to our board types.

4 hardware offerings

Evaluation and Development Boards
FRDM Development Board for MCX W72 Wireless MCU
Active

FRDM-MCXW72Similar
Evaluation and Development Boards
FRDM Development Board for RW612 Wi-Fi 6 + Bluetooth Low Energy + 802.15.4 Tri-Radio Wireless MCU
Active

FRDM-RW612Similar
Evaluation and Development Boards
End-Node Matter Development Platforms
Active

END-NODE-MATTER-THREADSimilar
Evaluation and Development Boards
Wi-Fi^® Microcontroller Platform
Active

WI-FI-MICROCONTROLLER-PLATFORMSimilar
