Name: AP13192USLK ZigBeeready RF Transceiver Student Learning Kit
Price: 134.55 USD
Availability: BackOrder

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Products
Wireless Connectivity
Zigbee

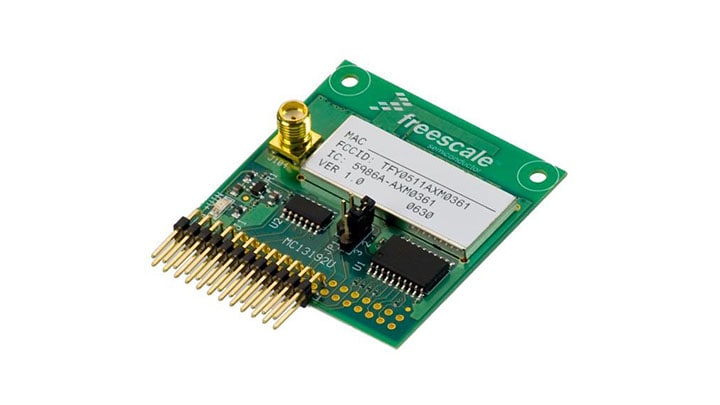

AP13192USLK ZigBee-ready RF Transceiver Student Learning Kit

Roll over image to zoom in

Easily add RF capability to course or projects

Can be used for Simple MAC or Zigbee communications

Common Course Applications

Wireless sensing and control
Introduction to communication protocols
Wireless home automation

Use for courses/projects that…

require low-power, medium data rate wireless communication
want to show a variety of network deployment configuration
are targeted for intermediate to advanced level

This application module can be...

connected directly to a Application Module
- plug the RF Transceiver directly into the application module (*connector gender changers may be required)

increased I/O features
more hand-on approach
accepts multiple microcontrollers
integrated BDM interface
large bread-board area

Purchase AP13192USLK to receive TWO RF-Transceivers

Design Files

Buy Options

Click to expand

AP13192USLK
Active

ZIGBEE MODULE FOR UNIVERSITY PROJECT BRD.

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order
