Name: LPCXpresso802 for the LPC802 family of MCUs
Price: 23.69 USD
Availability: InStock

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

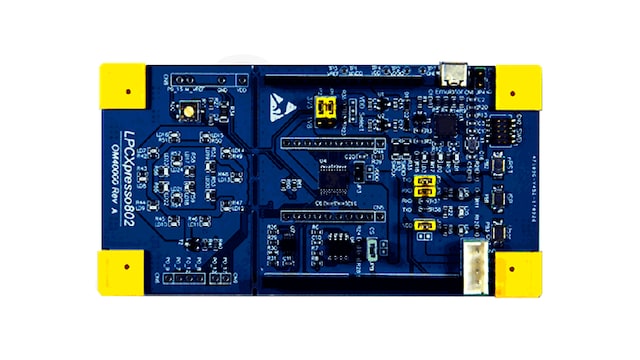

The LPCXpresso802 board provides a powerful and flexible development system for NXP’s low-end Arm^® Cortex^®-M0+ based MCUs. The LPCXpresso802 board was created to enable evaluation of and rapid prototyping of the LPC802 family of MCUs. The board is compatible with NXP’s MCUXpresso Integrated Development Environment (IDE) and other popular toolchains including IAR and Keil.

Design Files

Software

Product Details

Supported Devices

Processors and Microcontrollers

LPC800 Arm Cortex-M0+

LPC80X: LPC800: 32-Bit Arm^® Cortex^®-M0+-Based Low-Cost MCU

Features

Processor

LPC802 Arm Cortex-M0+ MCU running at up to 15 MHz
Compatible with MCUXpresso IDE and other popular toolchains (incl. IAR and Keil^®)

Memory

1 MB Win bond SPI flash

Connectivity

I²C Grove connector for easy connection of sensors, or to use the LPCXpresso802 as an I/O expander peripheral

Debug

On-board CMSIS-DAP (debug probe) with VCOM port, based on LPC11U35 MCU
Debug connector to allow debug of target LPC802 MCU using an external probe

Sensors

NXP LM75BDP temperature sensor

Components

LPC802 ISP and User/Wake buttons
LPC802 Reset button

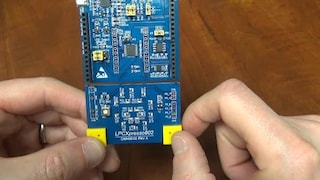

Detachable board section with LEDs and potentiometer for prototyping and demo development

Buy Options

Click to expand

OM40000
Active

LPCXpresso802 Development Board for the LPC802 family of MCUs.

Kit Contains

LPCXpresso802 board

$23.69 USD

In Stock :4

Normally ships 1-2 business days

ADD TO CART

Order from distributors
