Evaluation Kit - MC33903BD3, SBC Gen2 with CAN and LIN

KIT33903BD3EVBE Active

Roll over image to zoom in

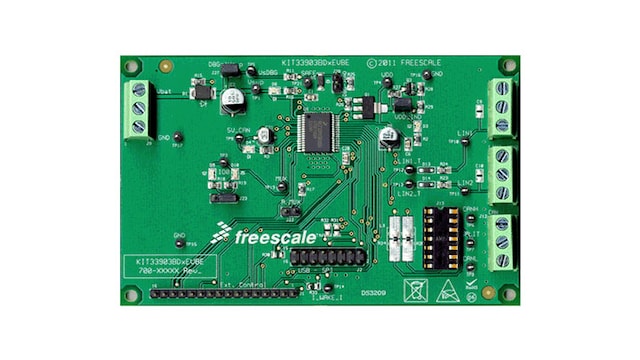

This evaluation board allows you to implement the functionality of the MC33903D3 System Basis Chip (SBC).

  • Includes one I/O test point that can be configured to be pulled up to VSUP or pulled down to GND through a resistor and indicator LED
  • The SBC can also be exercised in debug mode by simply populating a jumper
  • An isolated terminal block connector is implemented to provide power to the evaluation board with an external DC power supply
  • Operated through the graphical user interface (GUI) paired with the SPI dongle board (KITUSBSPIDGLEVME) through the 2 x 8 pin ribbon cable
  • For added flexibility, you can implement a custom board with a MCU to talk to the SBC via the 16 pin header

Supported Devices

Interfaces

Automotive LIN Solutions

  • MC33903: SBC Gen2 with High-Speed CAN and LIN

Features

Connectivity

  • Multiple CAN Bus termination options supported via socket
  • One high/low side I/O (SPI configurable) accessible through a test point

Power Management

  • Nominal operating supply voltage range of 5.5 to 27 V
  • 5.0 V/3.3 V regulator for the MCU with an external PNP ballast transistor to increase current capability

Debug

  • Debug mode/watchdog configuration via jumper settings

General Specifications

  • Status of I/O-0 indicated by LED (dependent on jumper configuration)
  • I/O-0, 5 V_CAN, SAFE, and VDD status indicated by LED
  • MUX output voltage accessible through a test point and external resistor selectable through a jumper
  • I_WAKE_I test point to enable a FET and load VDD with current to wake up the SBC
  • LIN1_T and LIN2_T test points to monitor I/O voltages (SPI configurable)
  • 100 mil 2 x 8 pin standard header connector for SPI communication
  • 100 mil 16-pin standard header connector for custom MCU board connection

Buy Options

KIT33903BD3EVBE-Image

Click to expand

  • KIT33903BD3EVBE
    Active

  • Evaluation Kit - MC33903BD3, SBC Gen2 with CAN High Speed and LIN Interface.

    • Kit Contains:

    • KIT33903BD3EVBE Hardware
    • Quick Reference Guide
  • $93.38 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
