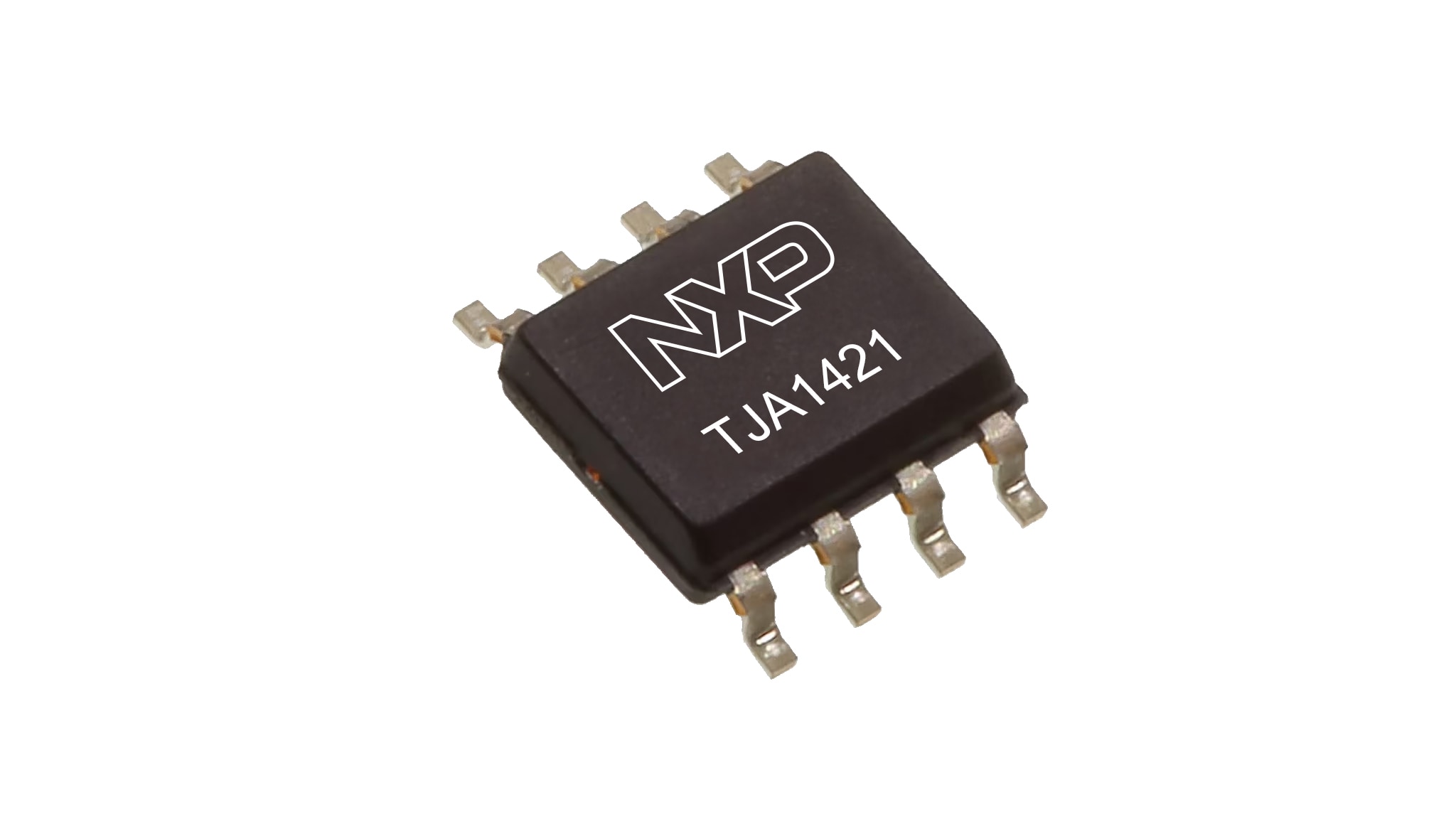

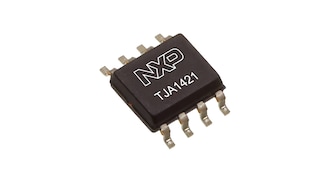

LIN Commander/Responder Transceiver[TJA1421]
Design Files
Receive the full breakdown. See the product footprint and more in the eCad file.
Single ISO17987/SAE J2602 Transceiver with 1.8 V VIO
The TJA1421 is the interface between the Local Interconnect Network (LIN) commander/responder protocol controller and the physical bus. It is primarily intended for in-vehicle subnetworks using baud rates up to 20 kBd and is compliant with LIN 2.x, Society of Automotive Engineers (SAE) J2602 and International Organization for Standardization (ISO) 17987-4:2016 (12 V). The TJA1421 is pin-to-pin compatible with the TJA1021.
Not only supporting all functions of TJA1021, TJA1421 also has optimized electromagnetic compatibility (EMC) and electrostatic discharge (ESD) performance according to the latest International Electrotechnical Commission (IEC) and SAE standards, tighter responder termination to support more LIN responder (>15) nodes in the same network, 1.8 V voltage input/output (VIO) to support high-end microcontroller unit (MCU) and MCU time-out fail-safe feature to minimize the power consumption.
Product Details
Features
- ISO17987/LIN 2.x/SAE J2602 compliant
- Baud rate up to 20 kBd
- Input levels are compatible with 1.8 V, 3.3 V and 5 V devices
- Integrated and tighter termination resistor for LIN responder applications
- Very low electromagnetic emission (EME) and high electromagnetic compatibility immunity (EMI)
- MCU time-out feature
- Wake-up source recognition (local or remote)
- K-line compatible
- Pin-to-pin compatible with TJA1021
- Available in SO8 and HVSON8 packages
- Leadless HVSON8 package (3.0 mm × 3.0 mm) with improved Automated Optical Inspection (AOI) capability
