Highly Integrated Quad LIN Commander Transceiver with 1.8 V VIO
The TJA1425 is a quad local interconnect network (LIN) channel device. It provides the interface between a LIN commander protocol controller and the physical bus in a LIN network. Each of the four channels contains a LIN transceiver and LIN commander termination. It is primarily intended for in-vehicle sub-networks using baud rates up to 20 kBd and is compliant with LIN 2.x, SAE J2602 and ISO 17987-4:2016 (12 V). The TJA1425 is pin-to-pin compatible with the TJA1124.
Not only supporting all functions of TJA1124, TJA1425 also has optimized EMC and ESD performance according to the latest IEC and SAE standards, 1.8 V IO to support high-end MCU, MCU time-out fail-safe feature to minimize the power consumption.
Power consumption is very low in low power mode. However, the TJA1425 can still be woken up via pins SLP or SLP_N and LIN1 to LIN4.
Product Details
Features
-
Four LIN commander channels in a single package:
- LIN transceiver compliant with ISO17987/LIN 2.x/SAE J2602
- LIN commander termination consisting of a diode and a pull-up resistor
- Very low current consumption in low-power mode with wake-up via SLP/SLP_N or LIN pins
- Option to control an external voltage regulator via the INHN output
- Voltage input/output (VIO) input for direct interfacing with 1.8 V, 3.3 V and 5 V microcontrollers
- Microcontroller unit (MCU) time-out feature
- K-line compatible
- Pin-to-pin compatible with TJA1124

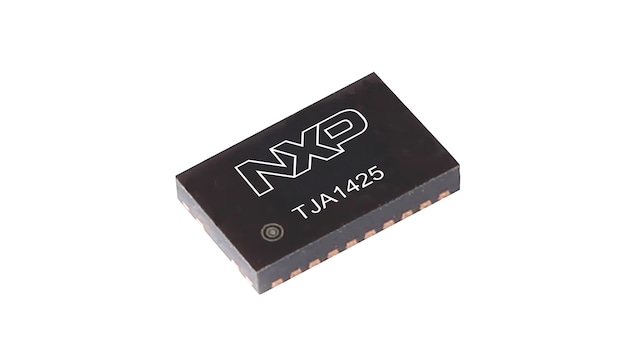

- Leadless DHVQFN24 package (3.5 mm x 5.5 mm) supporting improved Automated Optical Inspection (AOI) capability
