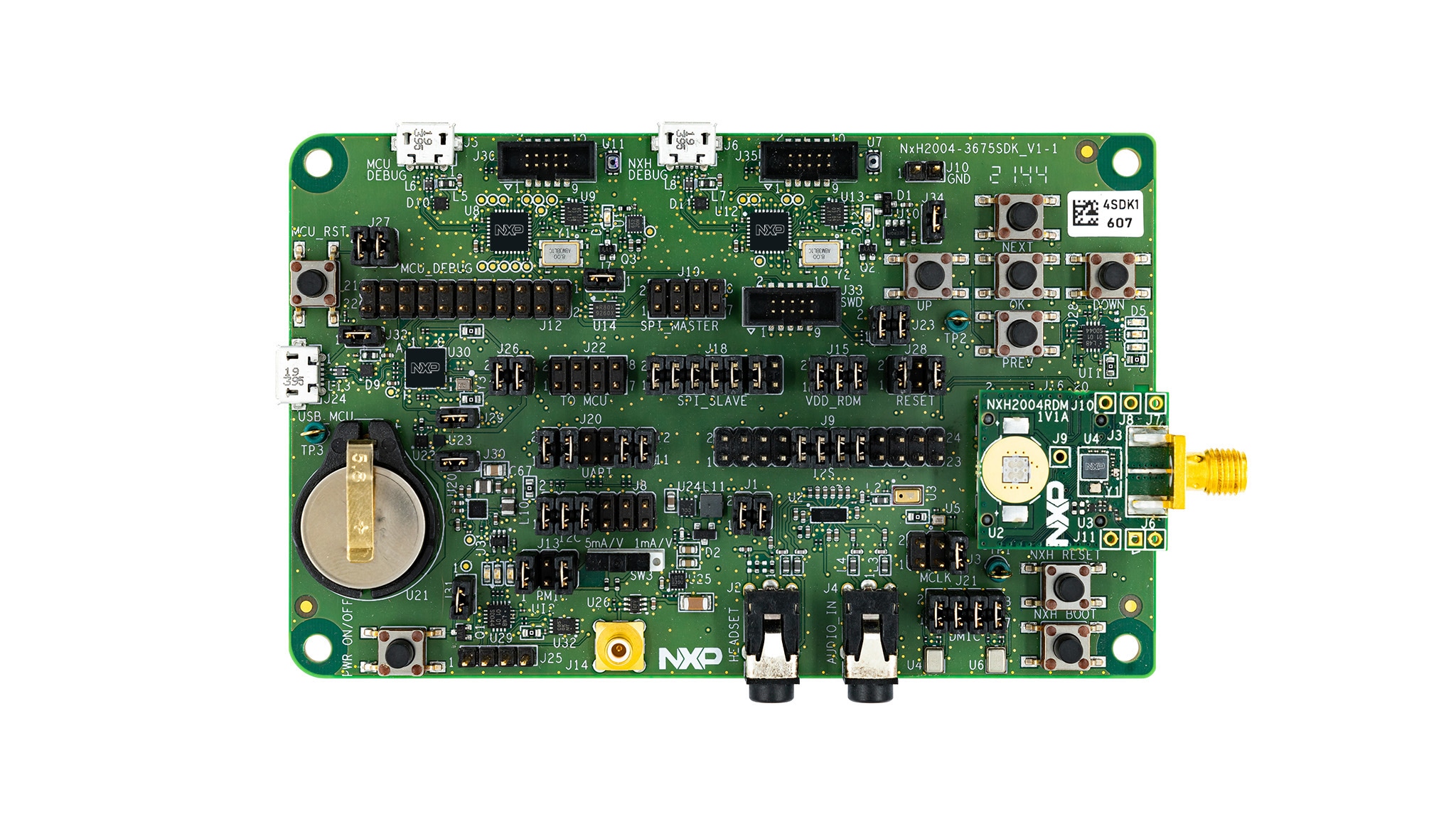

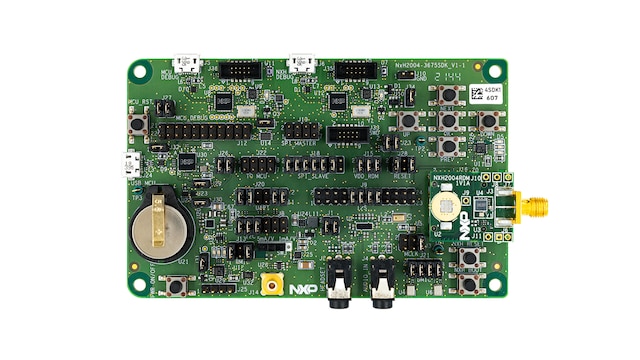

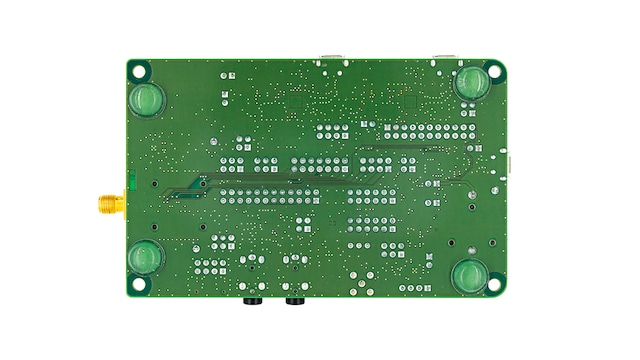

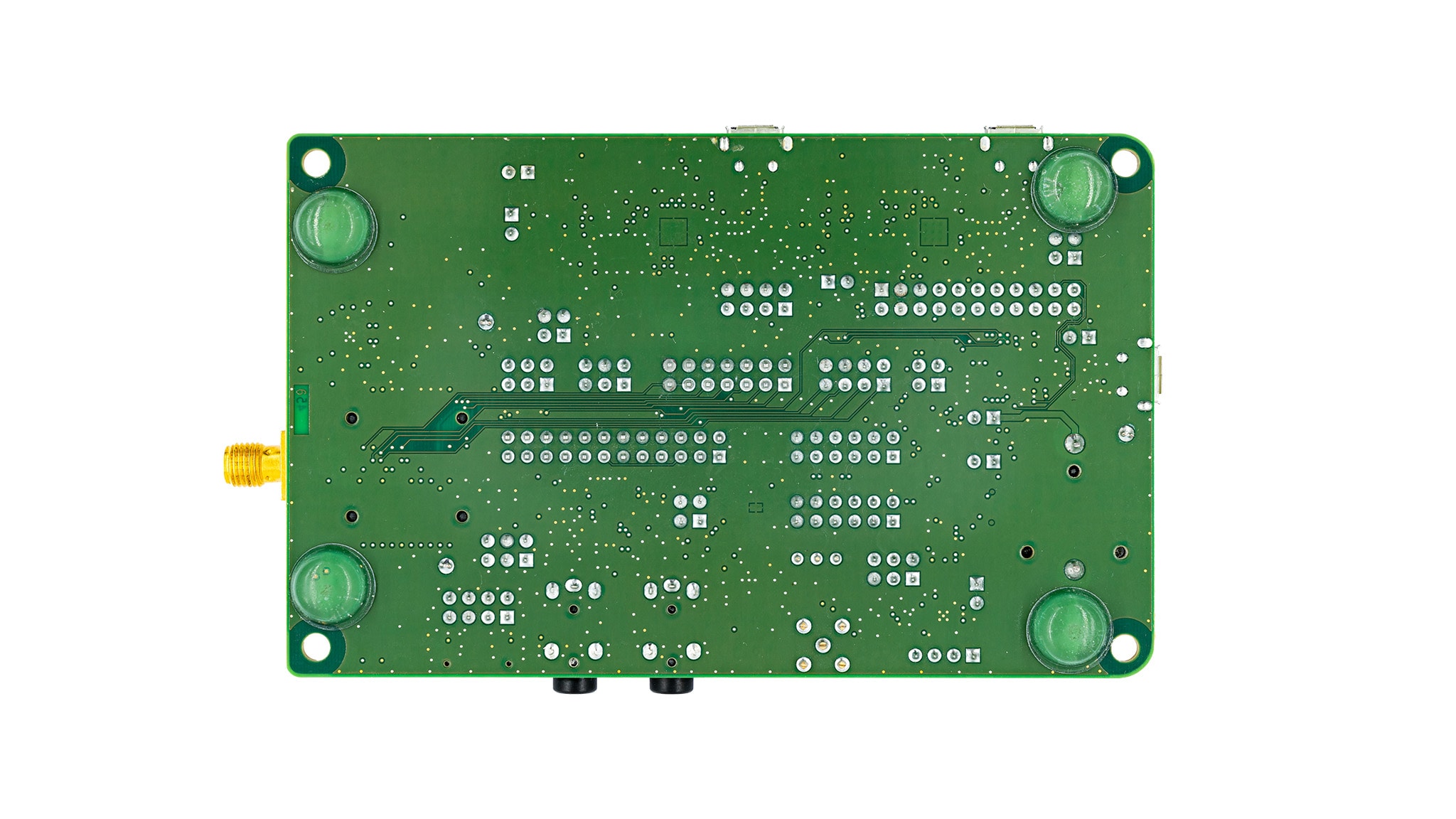

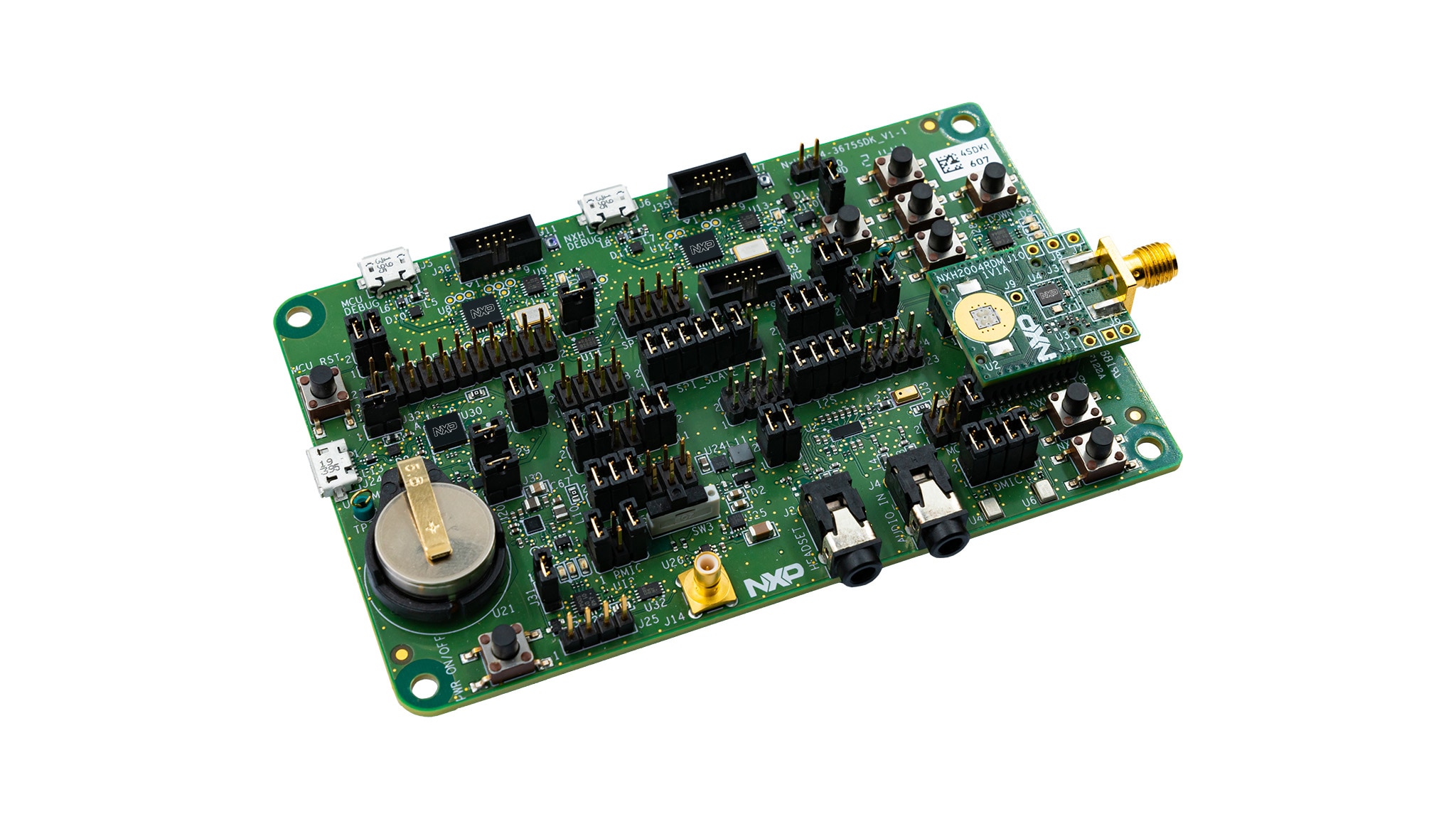

NXH2004 Evaluation Kit: Bluetooth® 5.3 AoBLE Certified

NXH2004SDK

Roll over image to zoom in

The NXH2004SDK is a Bluetooth® Low Energy device. It is a single-chip, ultra-low-power Bluetooth Low Energy wireless transceiver embedded with flash.

It supports application intended for demos, software development, measurements (power consumption and RF) and prototyping.

The NXH2004SDK contains multiple peripherals and debugging aids which help during the application development.

NXH2004SDK and enablement (documentation, software and boards) are available for selected customers with an approved NDA. For additional information and sample availability, contact support or your local sales representative.

Supported Devices

Power Management

5 V PMIC Solutions

Wireless Connectivity

Bluetooth LE Audio

  • NXH2004: Ultra-Low Power Hearing Aid SoC Solution over Bluetooth® LE Audio

Features

Connectivity

  • The communication between the components can occur through:
    • UART
    • SPI
    • I²C
    • I2S

Wireless Connectivity

  • Bluetooth LE audio

Power Management

  • The NXH2004SDK board is powered and charged via USB
  • The 1.1 V and 1.8 V switched mode power supplies are supplied by the battery

User Interface

  • Some useful user interface elements available on the board are:
    • Two groups of LEDs: Colors red, green, blue
    • Five buttons
    • Three GPIOs

Audio

  • The interfaces used for audio codecs are I²C and I2S
  • 3.5 mm jack for AUDIO_IN and HP+MIC is available on the board

Buy Options

NXH2004SDK-Image

Click to expand

NXH2004SDK
Active

NXH2004 Evaluation Kit: Bluetooth® 5.3 AoBLE Certified.

    $1499.00 USD
    In Stock :16

    Normally ships 1-2 business days

    ADD TO CART
