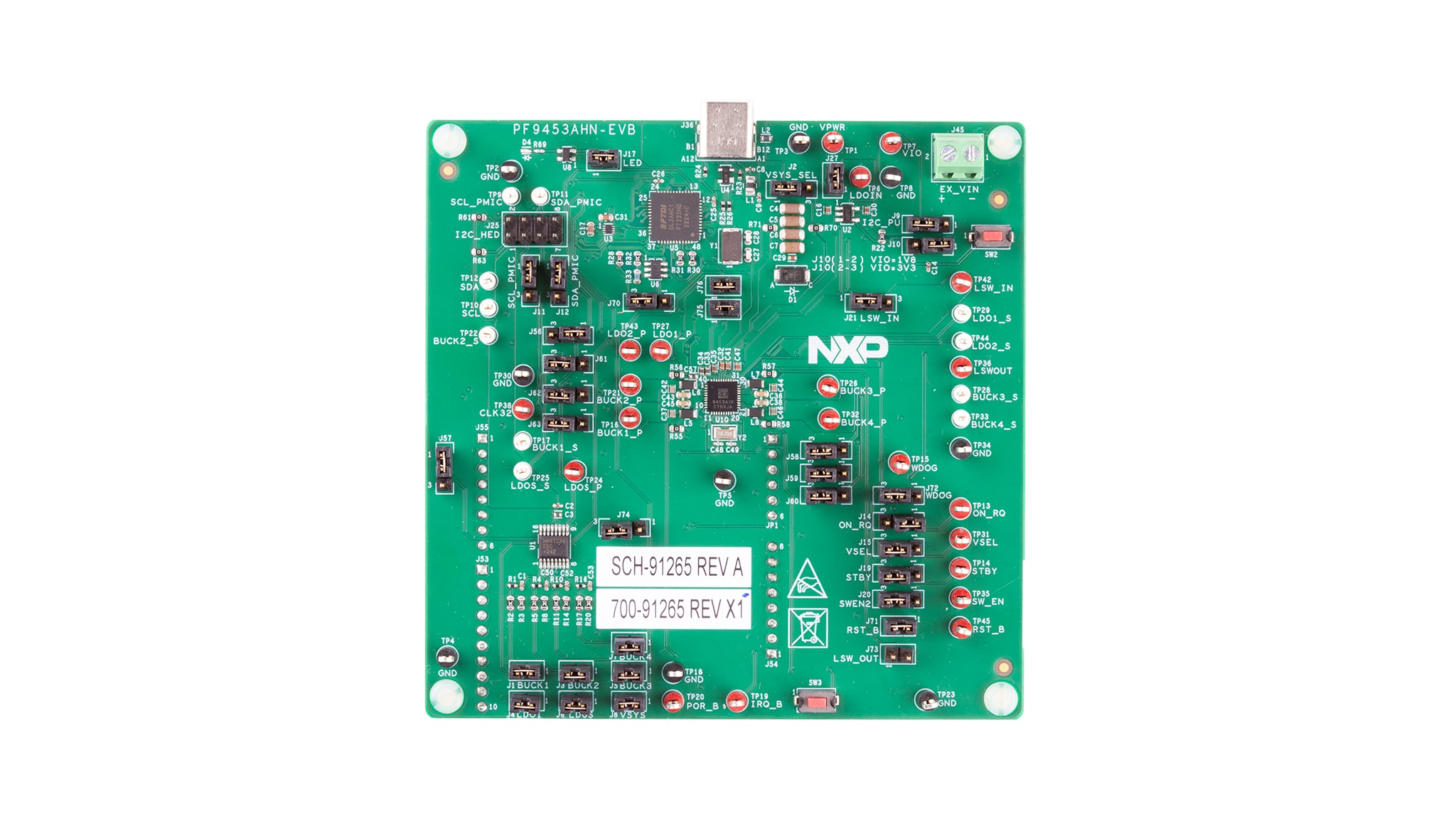

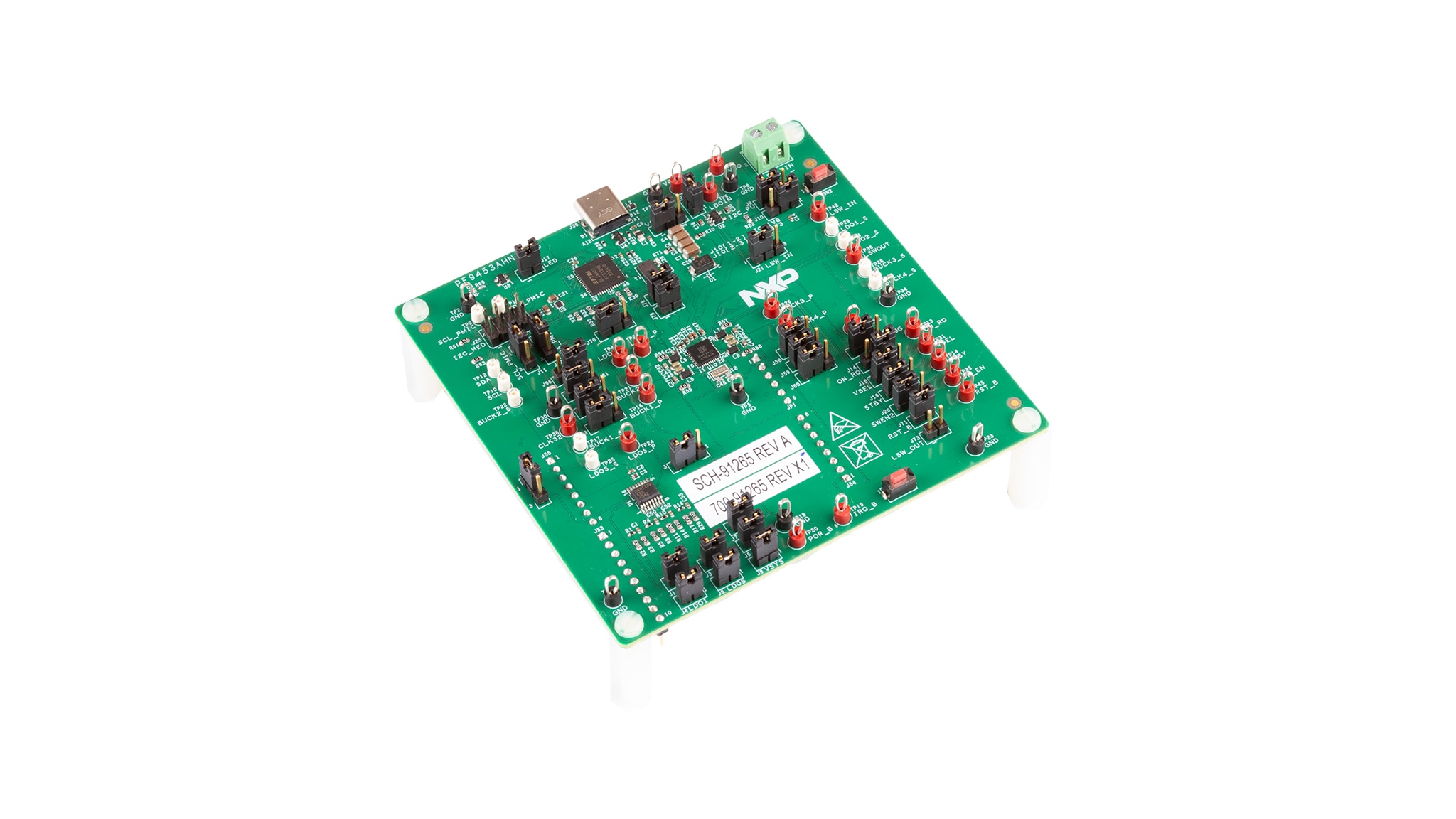

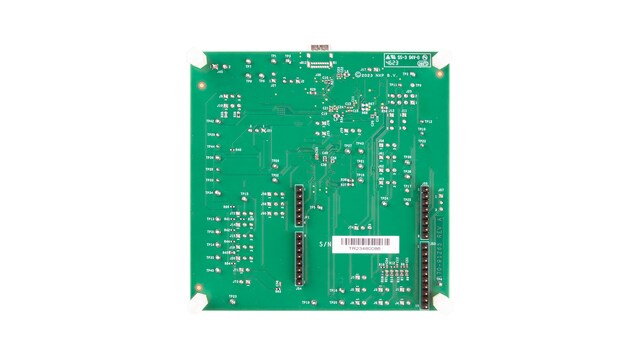

PF9453 QFN Evaluation Board

PF9453AHN-EVB

Roll over image to zoom in

The PF9453 is a general purpose single chip power management IC (PMIC) designed to support different microcontrollers and microprocessors for different applications for the consumer and industrial markets. The PF9453 provides an out-of-the-box power supply solution to support i.MX 91 and i.MX 93 family processors.

The device provides four high efficiency step-down regulators, three LDOs, one 400 mA load switch and 32.768 kHz crystal oscillator driver.

The board has a USB-Type C connector for easy connection to the software GUI that allows I²C access to the PF9453 PMIC registers.

Block Diagram

PF9453

PF9453 Block Diagram
Get diagram PDF

Supported Devices

Power Management

5 V Solutions

  • PF9453: PF9453 Low Power Multi Rail PMIC for i.MX 91, i.MX 93 and Simple Linux Platforms

Features

Four Buck Regulators

  • BUCK1: 0.6 V to 3.775 V, 25 mV step, 2000 mA
  • BUCK2: 0.6 V to 2.1875 V, 12.5 mV step, 2700 mA (QFN) / 2000 mA (WLCSP)
  • BUCK3: 0.6 V to 3.775 V, 25 mV step, 2000 mA
  • BUCK4: 0.6 V to 3.775 V, 25 mV step, 2500 mA
  • Dynamic Voltage Scaling on BUCK2
  • Monitor fault condition

Three Linear Regulators

  • LDO_SNVS, always-on, 1.2 V to 3.4 V in QFN or 0.8 V to 3.0 V in WLCSP with 25 mV step, 10 mA
  • LDO1, 0.8 V to 3.3 V with 25 mV step, 250 mA, voltage selection through SD_VSEL pin
  • LDO2 (QFN only), 0.5 V to 1.95 V with 25 mV step, 200 mA

Power Control IO

  • Power ON/OFF control
  • Standby/Run mode control
  • Watchdog reset input

ESD protection

  • Human Body Model (HBM) : ± 2000 V
  • Charged Device Model (CDM) : ± 500 V

System Features

  • One 400 mA load switch with a built-in active discharge resistor and GPIO/I²C control
  • 32.768 kHz crystal oscillator driver and buffer output
  • Flexible power ON/OFF sequence, One Time Programmable (OTP) device configuration
  • Built-in active discharge resistor
  • Fm+ 1 MHz I²C Interface

Buy Options

PF9453AHN-EVB-Image

Click to expand

  • PF9453AHN-EVB
    Active

  • PF9453 QFN Evaluation Board.

    • Kit Contains:

    • Assembled and tested evaluation board in an antistatic bag
    • Quick Start Guide
  • $200.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: >100
    • Shipping: Normally ships 1-2 business days
ADD TO CART
