TEA2206T Active Bridge Rectifier Controller Demo Board

TEA2206DB1583 Active

Roll over image to zoom in

The TEA2206T is an active bridge rectifier controller replacing the two low-side diodes in the traditional diode bridge with MOSFETs. Using the TEA2206T with low-ohmic high-voltage external MOSFETs significantly improves the efficiency of the power converter as the typical rectifier diode forward conduction losses are eliminated. In addition, the TEA2206T includes an X-capacitor discharge function.

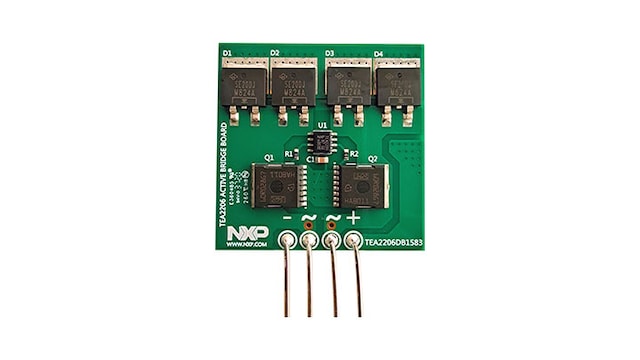

This demo board contains a TEA2206T, two low ohmic high-voltage MOSFETs and four diodes for the high-side rectifier.

Supported Devices

Power Management

AC-DC Controllers

  • TEA2206T: Active Bridge Rectifier Controller

Features

General

  • Increased efficiency by saving forward conduction losses of conventional bridge rectifier
  • Directly drives two rectifier MOSFETs with very low external part count
  • Integrated X-capacitor discharge (2 mA)
  • Self-supplying and very low IC power consumption (2 mW)

Buy Options

TEA2206DB1583-Image

Click to expand

  • TEA2206DB1583
    Active

  • TEA2206T Active Bridge Rectifier Controller Demo Board.

  • Kit Contains:

    • TEA2206DB1583 demo board
  • $150.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 58
    • Shipping: Normally ships 1-2 business days
ADD TO CART
