UJA1169A Evaluation Boards

UJA1169Ax-EVBs

Roll over image to zoom in

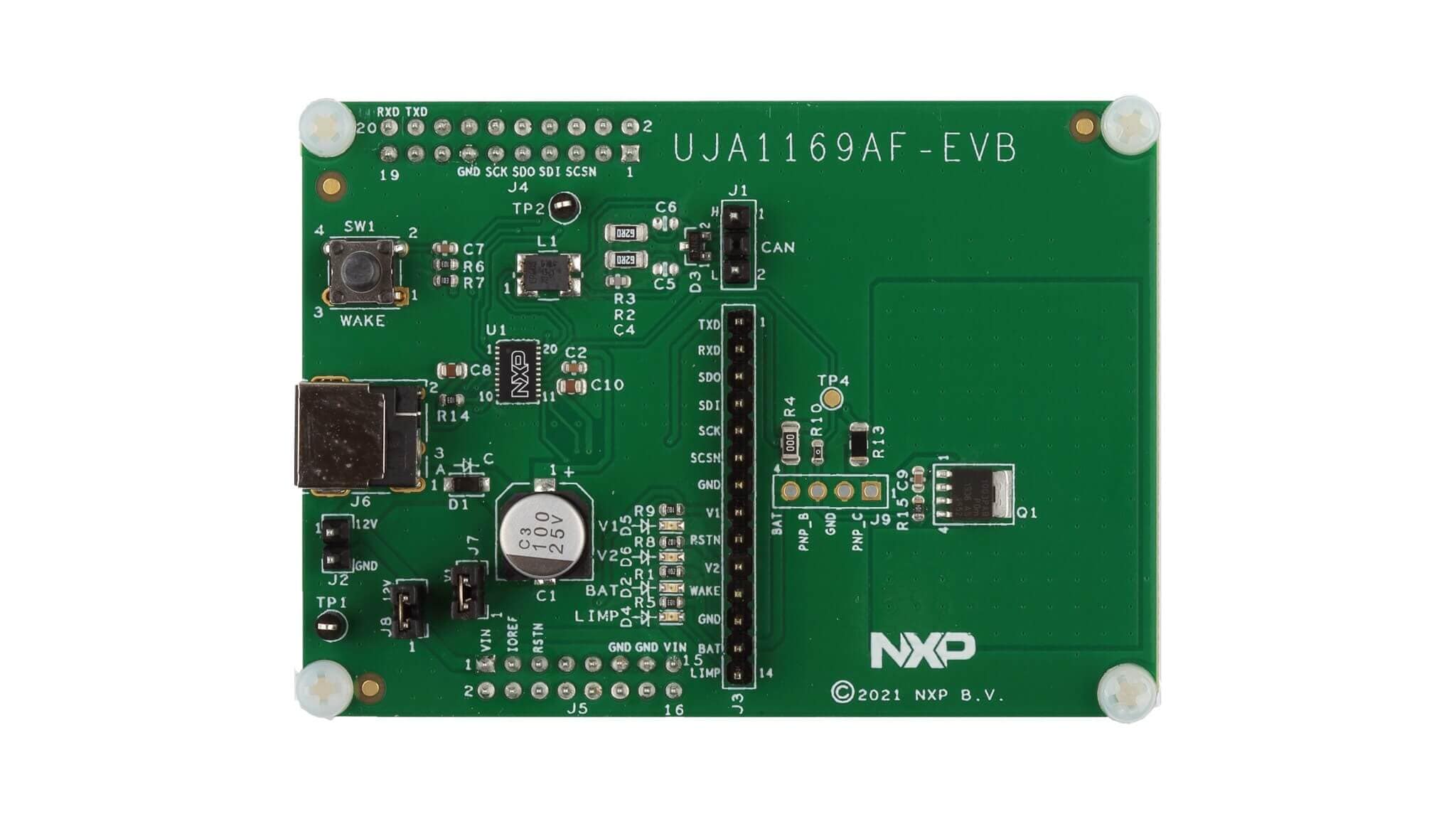

The UJA1169A evaluation boards are supportive tools that are used to develop system solutions using the UJA1169A mini CAN system basis chip. The boards are pin compatible with the Arduino® Uno and pinout order can be used in combination with any microcontroller board providing USB-to-SPI interfacing.

Supported Devices

Power Management

System Basis Chips

  • UJA1169ATK: Mini High-Speed CAN System Basis Chip

Features

System Features

  • Designed to facilitate the testing and evaluation of UJA1169A product features in a variety of microcontroller IO interface environments
  • Supports Arduino connection with microcontroller board
  • Provides several header rows (2.54 mm pitch) for connecting MCU interface and application signals
  • Board dimensions are 58.1 mm x 81.1 mm
  • Only components needed to support basic UJA1169A functionality are included
  • An external power supply of 12 V must be connected to power-up the board

Buy Options

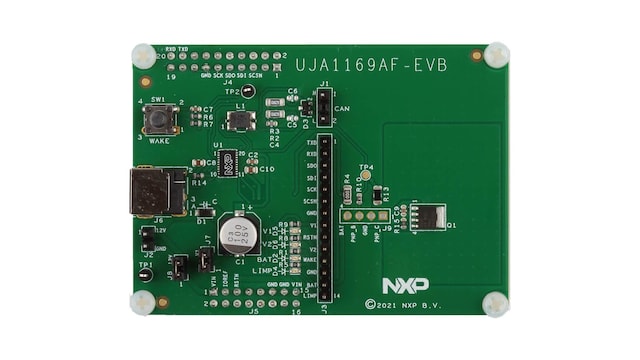

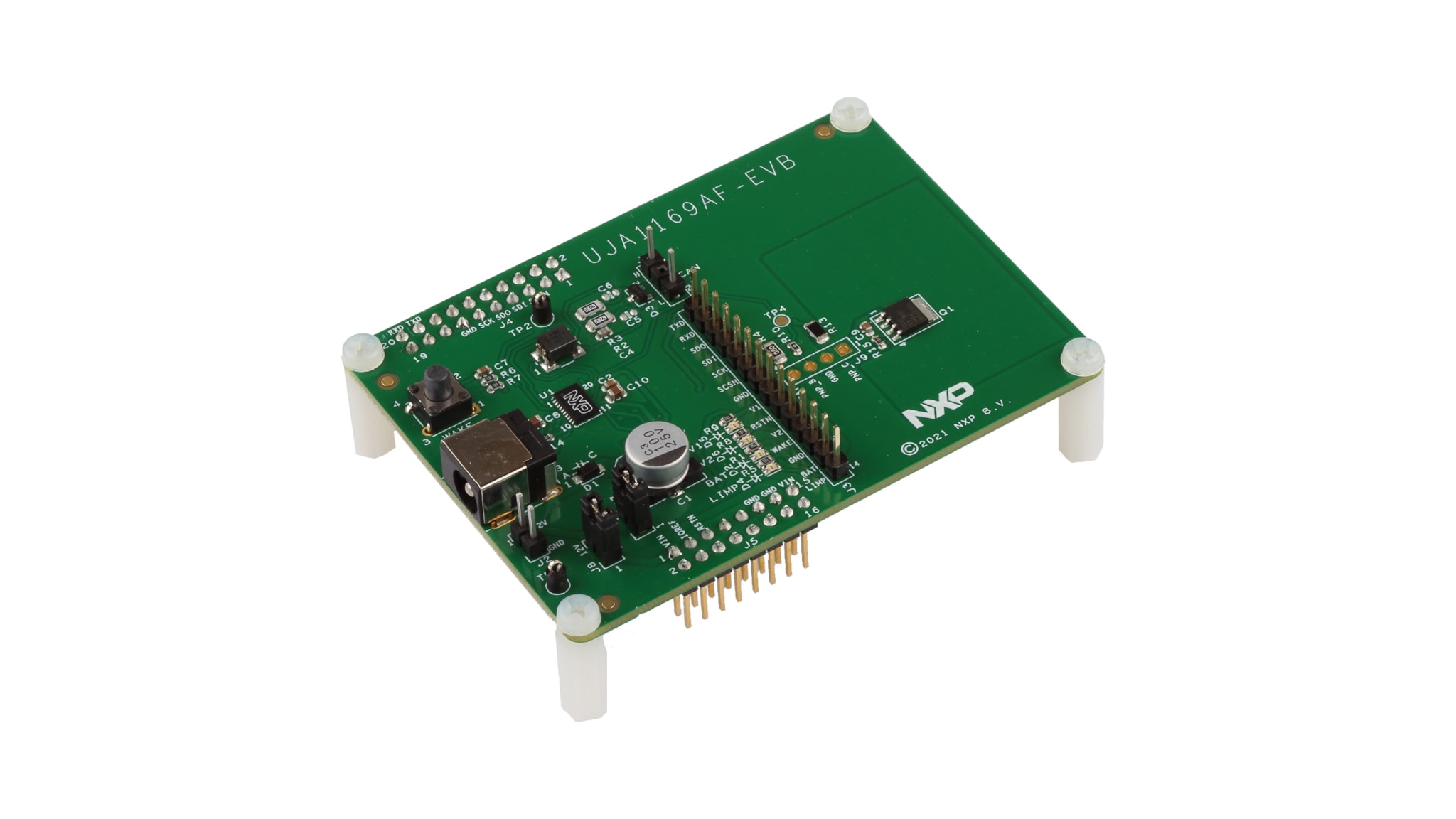

UJA1169AF-EVB-Image

Click to expand

  • UJA1169AF-EVB
    Active

  • UJA1169A Evaluation Boards.

  • Kit contains

    • UJA1169AF evaluation board
    • UJA1169A-EVB Manual
  • $88.63 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 7
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors

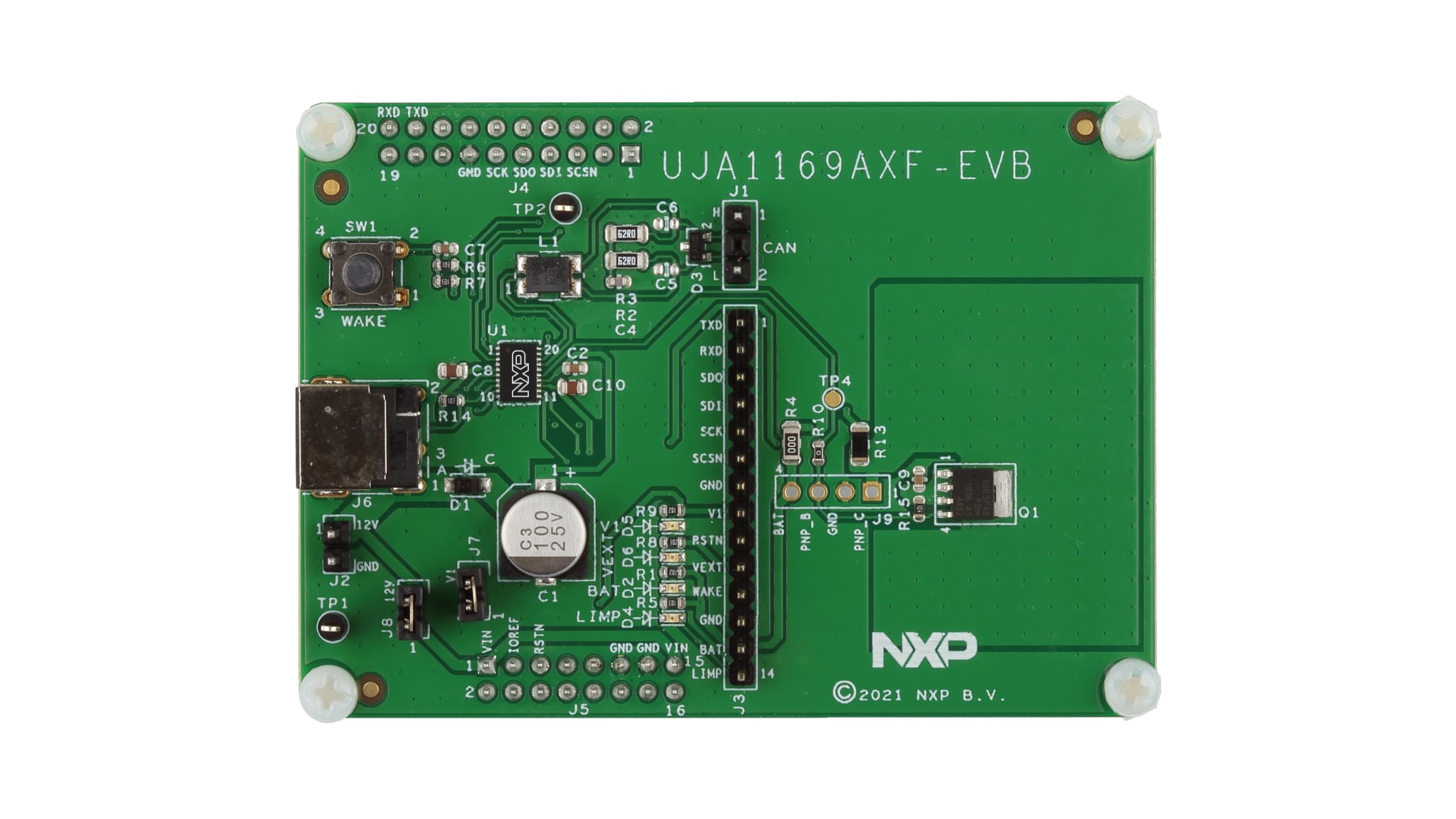

UJA1169AXF-EVB-Image

Click to expand

  • UJA1169AXF-EVB
    Active

  • UJA1169A Evaluation Boards.

  • Kit contains

    • UJA1169AXF evaluation board
    • UJA1169A-EVB Manual
  • $88.63 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 13
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors

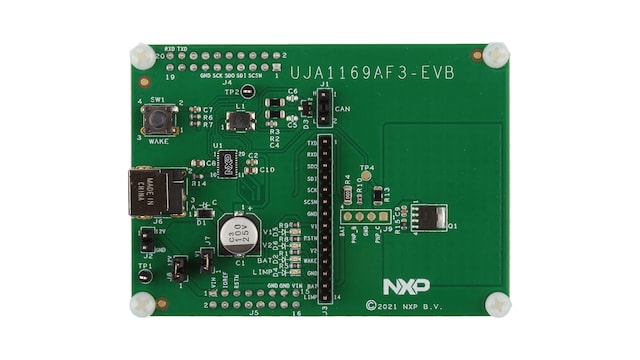

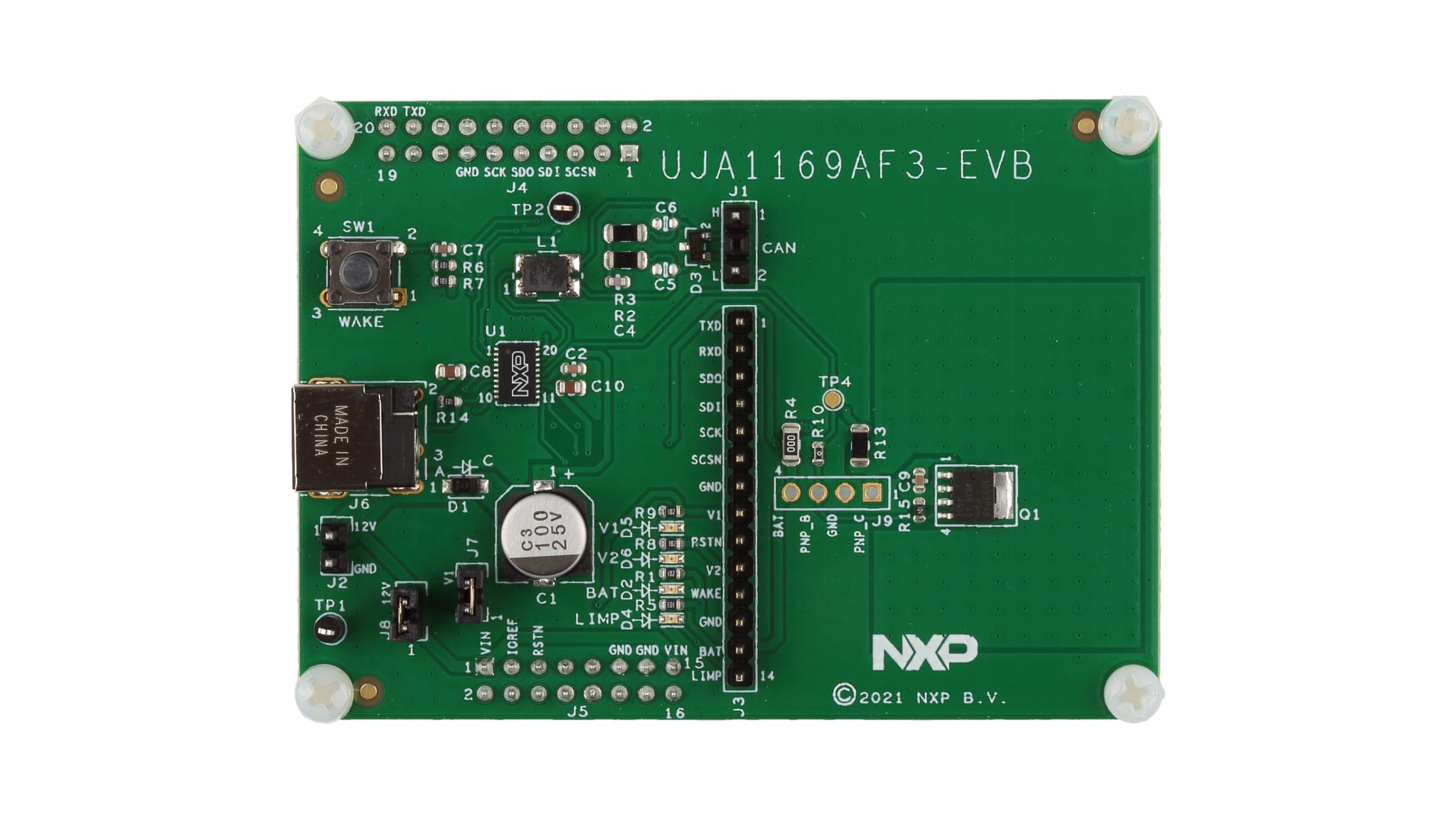

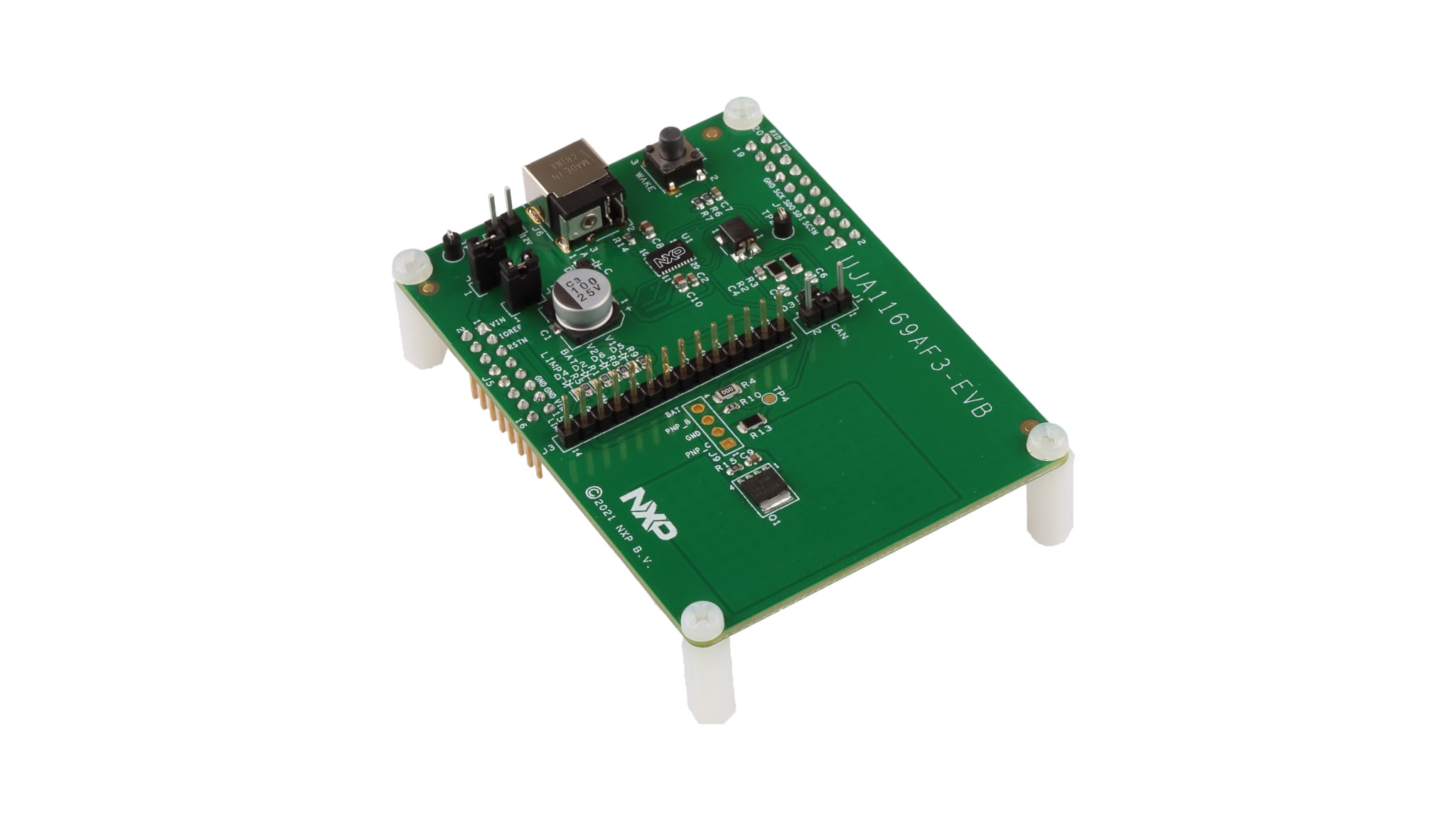

UJA1169AF3-EVB-Image
