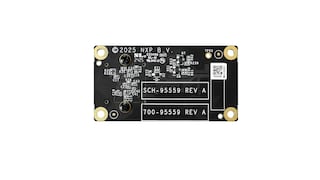

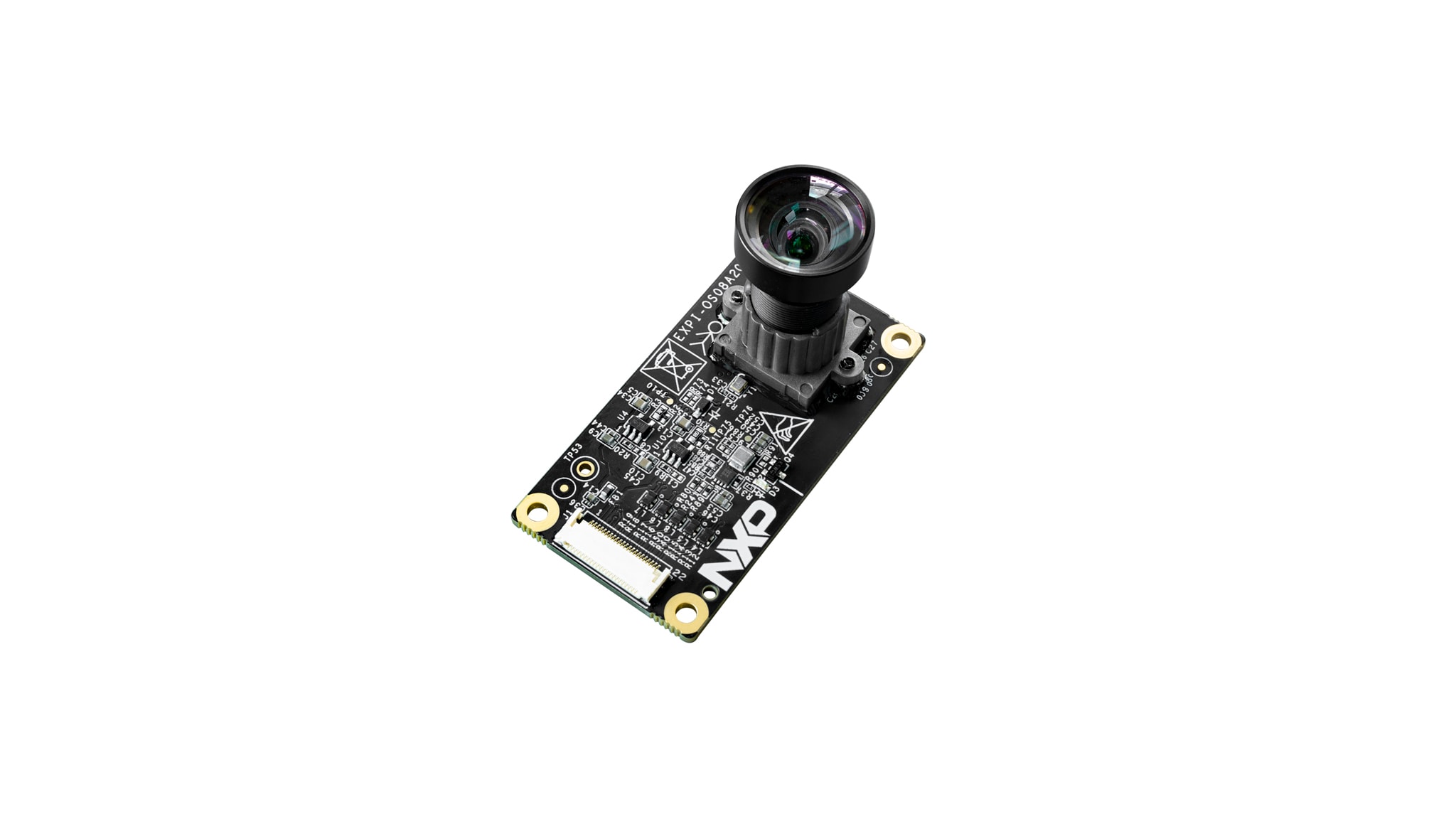

The EXPI-OS08A20 is a high-resolution 4K CMOS camera module designed for consumer applications that demand superior image quality. It integrates the OmniVision OS08A20 sensor — a high-performance, 1/2-inch, 8-megapixel (8MP) CMOS image sensor capable of delivering 3840×2160 resolution at 30 frames per second. This module includes an optic lens, an 8MP image sensor board with an FPC 22-pin connector.
This module supports full-frame and windowed 10/12-bit MIPI output in various formats, making it highly versatile for different imaging needs. It can be easily enabled using the FRDM series board, which has an internal ISP, making it ideal for vision-based applications. NXP has provided demo code for utilizing the camera sensor, allowing easy integration for applications with the camera.
High-Resolution Camera Module for i.MX 8M Plus and i.MX 95 Optimized for Edge AI and Vision Applications.
