Pulse Oximeter Development Kit

MED-SPO2 Active

Roll over image to zoom in

The MED-SPO2 Tower® System module board is a medical-oriented development tool for the 9S08MM Flexis® 8-bit, MCF51MM ColdFire® 32-bit and Kinetis® 32-bit families of MCUs.

The MED-SPO2 Tower System module board enables pulse oximetry applications development and currently can be plugged to TWR-K53N512, TWR-MCF51MM or TWR-S08MM128 Tower System modules.

Product Details

Features

  • Reduces pulse oximetry applications development cycle
  • Reduces BOM and improves accuracy using the Flexis® MM and Kinetis® K53 Measurement Engine

Connectivity

  • Compatible with the TWR-K53N512, TWR-MCF51MM, and TWR-S08MM128 Medical Connector
  • Calculates SPO2 (oxygen saturation)
  • Calculates heart rate

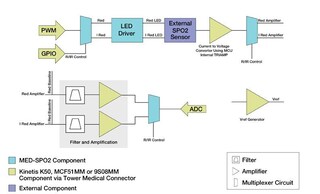

  • Filters, amplifies, and processes the signal

Buy Options

MED-SPO2-Image

Click to expand

  • MED-SPO2
    Active

  • Pulseoximeter board.

    • MED-SPO2 module
    • Antistatic bag
    • Requires external pulse oximeter sensor (verify AN4327 application note) – Not included
    • Requires TWR-MCF51MM, TWR-S08MM128 or TWR-K53N512 – Sold separately
