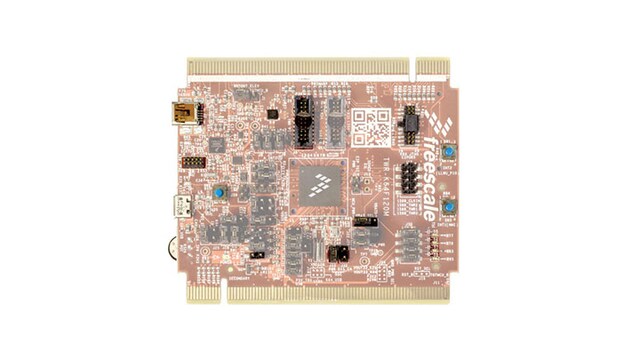

Kinetis® K64 MCU Tower System Module

TWR-K64F120M Active

Roll over image to zoom in

The Tower-K64F120M is a development board for the Kinetis® K24, K63 and K64 120 MHz 32-bit Arm® Cortex®-M4 MCUs.

  • The TWR-K64F120M features the Kinetis MK64FN1M0VMD12 low-power MCU with 1 MB Flash, 256 KB SRAM, USB USB and Ethernet MAC.
  • It operates as a standalone debug tool and can also be combined and used as part of the modular Tower System development platform

Supported Devices

Processors and Microcontrollers

K6x Ethernet

  • K64_120: Kinetis® K64-120 MHz, 256 KB SRAM Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Core
  • K63_120: Kinetis® K63-120 MHz, 256KB SRAM, Anti-Tamper Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K2x / KS2x USB

  • K24_120: Kinetis® K24-120 MHz, Full-Speed USB, 256KB SRAM Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

Sensors

Accelerometers

  • MMA8451Q: ±2g/±4g/±8g, Low g, 14-bit Digital Accelerometer

Features

Microcontroller

    MK64FN1M0VMD12

  • 120 MHz
  • 1 MB Flash
  • 256 KB RAM
  • FPU
  • USB
  • Encryption
  • Low-power
  • 144 MAPBGA

Connectivity

  • Dual-role USB interface with Micro-AB USB connector
  • General-purpose Tower plug-in (TWRPI) socket
  • SD card socket

Debug

  • Onboard open-standard serial and debug adapter (OpenSDA)

Power Management

  • Coin cell battery holder
  • Independent, battery-operated power supply for real-time clock and tamper detection modules

Sensor

  • Three-axis accelerometer (MMA8451Q)

Tools and OS Support

  • Software support and application development are offered through the Kinetis software development kit (SDK), an extensive suite of robust peripheral drivers, stacks, and middleware (replacing Sample Code Packages/examples). Get expert advice and support by joining the Kinetis Software Development Kit Community forum.

User Components

  • Pushbuttons for GPIO interrupts and MCU reset
  • Four user-controlled status LEDs
  • Potentiometer

Buy Options

TWR-K64F120M-Image

Click to expand

  • TWR-K64F120M
    Active

  • Tower System Development Board for Kinetis K24, K63 and K64 (120 MHz, 512KB-1MB Flash) MCUs.

    • TWR-K64F120M Tower® System module
    • Quick start guide
    • Supporting cables
    • Battery
  • $217.35 USD
  • For a quantity of 1
Order from distributors
