S08SC4 Evaluation and Demonstration Board

DEMO9S08SC4

Roll over image to zoom in

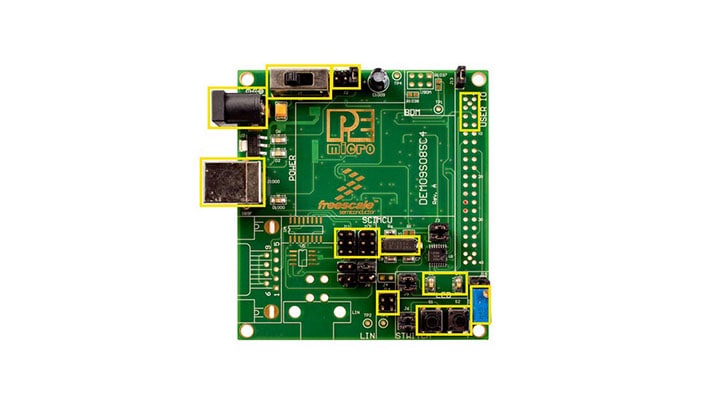

The DEMO9S08SC4 is a low-cost development system designed for demonstrating, evaluating, and debugging the NXP® MC9S08SC4 microcontroller. P&E’s Embedded Multilink circuitry on the DEMO9S08SC4 board allows the processor on the DEMO9S08SC4 to be debugged and programmed via USB from the PC. In addition, the demo board can be powered using the USB bus.

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

  • S08SC4: 8-bit C4 Small Package SC4 MCUs

Features

Memory

  • S08SC4, 16 TSSOP, 4K Bytes Flash, 256 Bytes RAM

Connectivity

  • Integrated P&E USB-BDM
  • On-board Virtual Serial Port
  • SCI signals connected to P&E’s Embedded Multilink through jumpers
  • P&E’s Embedded Multilink circuitry populated on the bottom

Power Management

  • Power Input Selection Jumpers for selecting the input voltage source
  • Power Input from Embedded Multilink to LDO regulator
  • Power Input from DC Power Jack to LDO regulator, regulated VDD output at 5.0 V
  • Power Input from MCU_PORT connector

User Components Provided

  • External Crystal Circuitry Layout
  • LIN PHY with Molex connector
  • 2 User LED’s w/ Enable
  • 2 User Push Buttons w/ Enable
  • 5K Ohm POT w/ Enable

Connectors

  • 40-Pin MCU I/O pass-through connector
  • RS-232 Serial Port w/ DB9-F Connector
  • USB Connector

Buy Options

  • DEMO9S08SC4

  • Demo board for the S08SC4, Potentiometer and port outputs.

    • DEMO9S08SC4 Board
    • DEMO9S08SC4 User Manual
    • USB cable
    • Support CD for AXIOM HC(S)08 Series
    • Resource CD
    • Quick Start Guide
    • CodeWarrior V6.3 for MCUs P&E resources CD
    • Warrant Card
    • Packing List
  • $109.00 USD
  • For a quantity of 1
