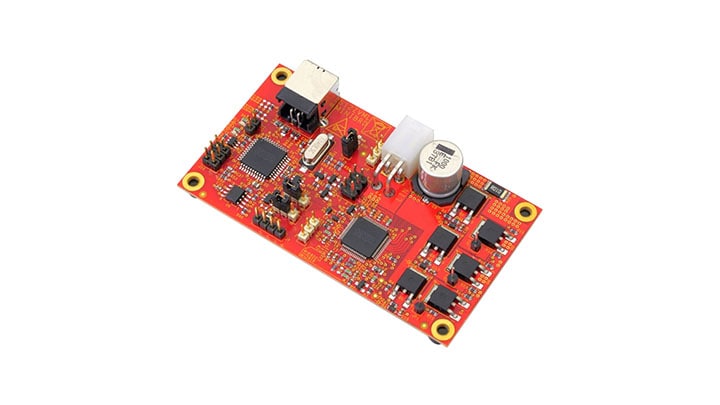

S12ZVM32 3-phase BDLC and PMSM Evaluation Board


Roll over image to zoom in

Product Details

Select a section:



  • Connector interface for 2-phase (DC) or 3-phase (BLDC or PMSM) motor
  • USB-to-SCI interface
  • LIN connector
  • Hall-sensor interface and connector
  • Resolver interface and connector


  • Built-in OSBDM debugger

User components

  • One general-purpose potentiometer
  • Two LEDs
  • Two push buttons
  • One switch
  • Shunt resistors for current sensing on up to three phases and common DC link
  • S12ZVM32 (LIN version)

Buy Options

  • S12ZVM32EVB

  • S12ZVM32 Evaluation Board for 2-phase DC and 3-phase BLDC.

  • $315.00 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor
