UCODE Nxm RAIN RFID IC with Configurable Memory for Industrial IoT and Digital Product Passport
UCODE Nxm is a RAIN RFID IC designed for high-capacity item identification in industrial IoT and digital product passport applications. It combines market-leading sensitivity with configurable EPC and user memory, supporting up to 880 bits shared memory. The IC enables scalable designs across manufacturing, logistics, healthcare and aviation by storing extended data directly on the tag while maintaining standards-based privacy and data integrity.
Product Details
Features
High-Sensitivity RF Performance
- Read sensitivity -24 dBm
- Write sensitivity -22 dBm
- Self-adjust for optimized RF performance

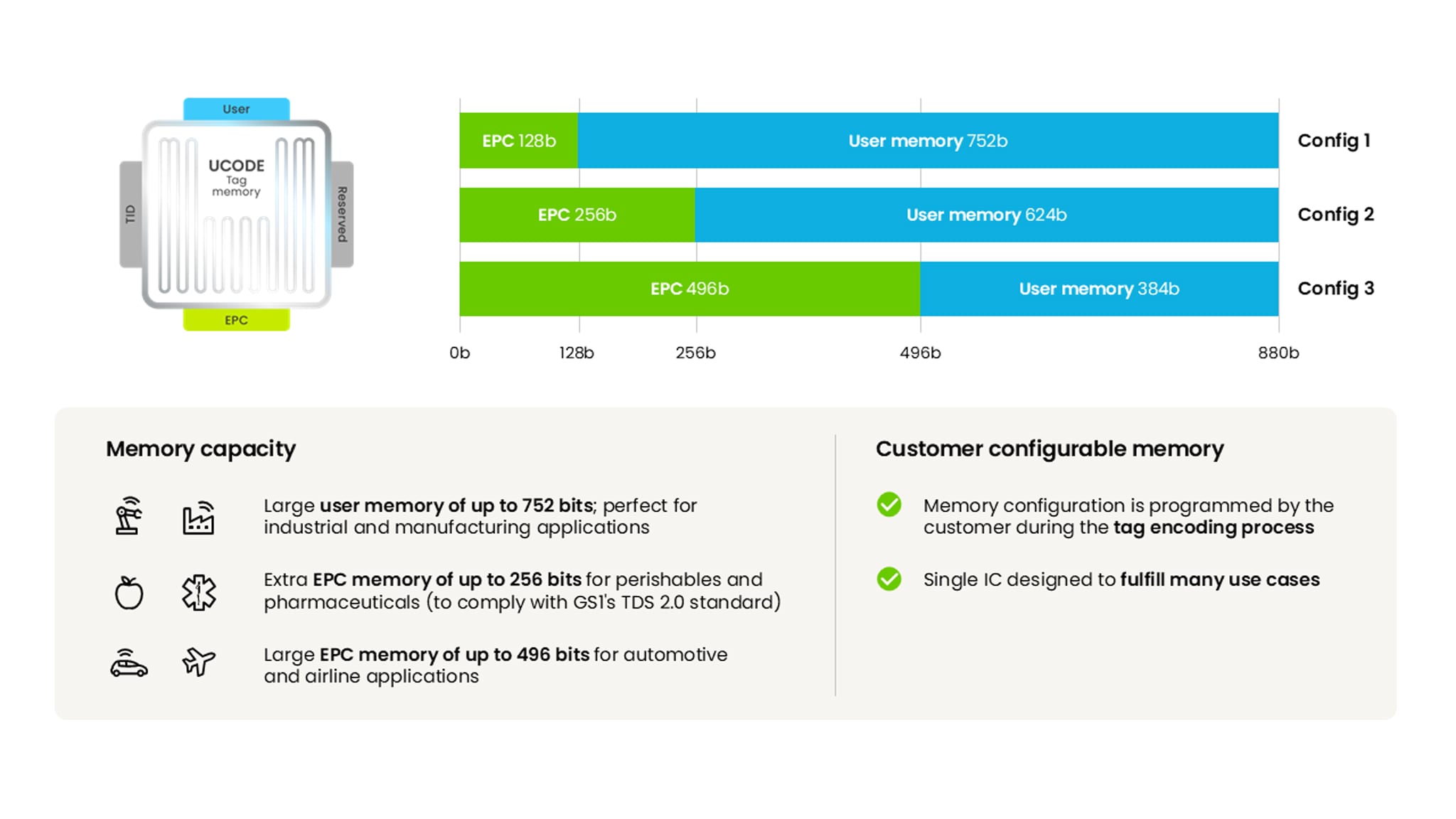

Configurable High-Capacity Memory
- 880-bit total shared memory
- Up to 496-bit EPC memory
- Up to 752-bit user memory
- Three configurable memory maps
Data Integrity And Security
- Memory Safeguard with ECC protection
- Parity protection for TID memory
- Standards-based Untraceable privacy
System Integration And Identification
- 96-bit TID memory
- Brand Identifier for company-specific ID
- GS1-compliant encoding support
Reliability and Endurance
- 100 K write endurance
- 20-year data retention
- Operating range -40 °C to +85 °C
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types
1 documents
Compact List
Design Resources
Training
Support
FAQ's
What is UCODE Nxm?
UCODE Nxm is NXP's high-memory RAIN RFID IC, combining high performance with up to 880 bits of configurable memory.
What is configurable memory?
UCODE Nxm lets users allocate memory between EPC and User Memory, enabling one IC to support multiple applications.
What makes UCODE Nxm different from other RAIN RFID ICs?
UCODE Nxm combines high sensitivity, configurable memory and advanced features such as Self-Adjust, Memory Safeguard, Brand Identifier and Untraceable privacy.
Why store data on the tag instead of only in the cloud?
It keeps critical information with the item, even when backend connectivity is unavailable.
What is Memory Safeguard?
Memory Safeguard helps protect stored data using error detection and correction mechanisms.
When should I choose UCODE Nxm?
Choose UCODE Nxm when applications require additional data, such as process status, lifecycle records, URLs or digital product information, to be stored on the tag.
What is the main difference between UCODE Nxm and UCODE 9xm?
UCODE Nxm builds on UCODE 9xm with larger configurable memory and enhanced privacy features for data-rich applications.
Is UCODE Nxm compatible with existing UCODE 9xm designs?
Yes. UCODE Nxm provides an easy migration path with compatible design attributes for drop-in antenna replacement.
How does UCODE Nxm compare to UCODE X?
UCODE X is optimized for identification performance, while UCODE Nxm adds configurable memory for data-rich applications.
Which applications are UCODE Nxm designed for?
UCODE Nxm is designed for manufacturing, automotive, healthcare, aviation, supply chain, baggage tracking and consumer engagement applications. It also supports DPP use cases by storing key product information directly on the tag throughout the product lifecycle. Its configurable memory also supports GS1 TDS 2.3 encoding.
