MC33660 ISO K Line Serial Link Evaluation Kit

KIT33660EFEVBE
Active

Roll over image to zoom in

The KIT33660 evaluation board supports the MC33660, a serial link bus interface device designed to provide bi-directional half-duplex communication interfacing in automotive diagnostic applications.

  • Designed to interface between the vehicle’s on-board MCU and systems off-board the vehicle via the special ISO K line
  • The MC33660 is designed to meet the Diagnostic System ISO 9141 specification
  • The device’s K line bus driver’s output is fully protected against bus shorts and over-temperature conditions

Product Details

Supported Devices

Interfaces

Automotive LIN Solutions

  • MC33660: ISO K Line Serial Link Interface

Features

Power Management

  • Operates over wide supply voltage of 8.0 to 18 V
  • Operating temperature of -40 °C to 125 °C
  • Standby mode: no VBAT current drain with VDD at 5.0 V
  • Low current drain during operation with VDD at 5.0 V

General Specifications

  • Interfaces directly to standard CMOS microprocessors
  • ISO K line pin protected against shorts to battery
  • Thermal shutdown with hysteresis
  • ISO K line pin capable of high currents
  • ISO K line can be driven with up to 10 nF of parasitic capacitance
  • 8.0 kV ESD protection attainable with few additional components

Buy Options

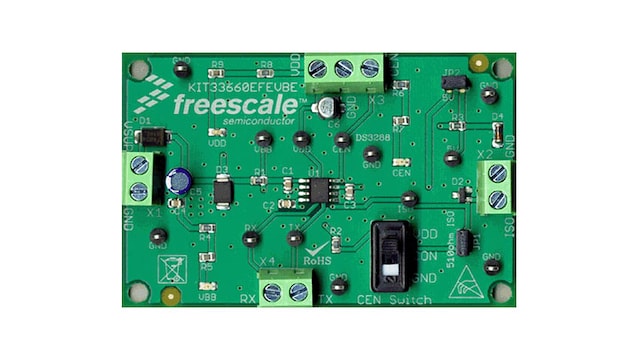

KIT33660EFEVBE-Image

Click to expand

  • KIT33660EFEVBE
    Active

  • Evaluation Kit - MC33660, ISO K Line Serial Link Interface.

  • Kit Contains:

    • KIT33660EFEVBE Hardware
    • Quick Reference Guide
  • $121.79 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
N true 0 TSPKIT33660EFEVBEen 2 Data Sheet Data Sheet t520 1 User Guide User Guide t792 1 en_US 2 1 6.0 English The 33660 is a serial link bus interface device designed to provide bi-directional half-duplex communication interfacing in automotive diagnostic applications. 1315434934375714323540 TSP 553.8 KB None None documents None 1315434934375714323540 /docs/en/data-sheet/MC33660.pdf 553785 /docs/en/data-sheet/MC33660.pdf MC33660 N N 2016-10-31 MC33660, ISO K Line Serial Link Interface - Data Sheet /docs/en/data-sheet/MC33660.pdf /docs/en/data-sheet/MC33660.pdf Data Sheet N Y 980000996212993340 2023-08-17 pdf N en Jan 14, 2016 Data Sheet t520 Data Sheet Data Sheet Y N MC33660, ISO K Line Serial Link Interface - Data Sheet 2 2.0 English This evaluation board allows the user to implement the functionality of the MC33660 ISO9141 transceiver in various configurations to quickly evaluate the device’s feature set. 1328892907971719527053 TSP 1.5 MB None None documents Y None 1328892907971719527053 /docs/en/user-guide/KT33660UG.pdf 1493693 /docs/en/user-guide/KT33660UG.pdf KT33660UG N N 2012-02-10 KT33660UG, Evaluation Board Supporting the KIT33660EFEVBE - User’s Guide /docs/en/user-guide/KT33660UG.pdf /docs/en/user-guide/KT33660UG.pdf User Guide N Y 132339537837198660 2023-06-19 pdf N en Aug 14, 2014 User Guide t792 User Guide User Guide Y N KT33660UG, Evaluation Board Supporting the KIT33660EFEVBE - User’s Guide false en_US 0 false en false 0 KIT33660EFEVBE downloads en true 0 Y TSP Data Sheet 1 /docs/en/data-sheet/MC33660.pdf 2016-10-31 1315434934375714323540 TSP 1 Jan 14, 2016 Data Sheet Data Sheet The 33660 is a serial link bus interface device designed to provide bi-directional half-duplex communication interfacing in automotive diagnostic applications. None /docs/en/data-sheet/MC33660.pdf English 553785 None Data Sheet 2023-08-17 N /docs/en/data-sheet/MC33660.pdf MC33660, ISO K Line Serial Link Interface - Data Sheet /docs/en/data-sheet/MC33660.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 6.0 N N MC33660, ISO K Line Serial Link Interface - Data Sheet 553.8 KB MC33660 N 1315434934375714323540 User Guide 1 /docs/en/user-guide/KT33660UG.pdf 2012-02-10 1328892907971719527053 TSP 2 Aug 14, 2014 User Guide User Guide This evaluation board allows the user to implement the functionality of the MC33660 ISO9141 transceiver in various configurations to quickly evaluate the device’s feature set. Y None /docs/en/user-guide/KT33660UG.pdf English 1493693 None User Guide 2023-06-19 N /docs/en/user-guide/KT33660UG.pdf KT33660UG, Evaluation Board Supporting the KIT33660EFEVBE - User’s Guide /docs/en/user-guide/KT33660UG.pdf documents 132339537837198660 User Guide N Y en None Y t792 pdf 2.0 N N KT33660UG, Evaluation Board Supporting the KIT33660EFEVBE - User’s Guide 1.5 MB KT33660UG N 1328892907971719527053 true Y Tools

Documentation

Quick reference to our documentation types.

Filters

2 documents

Compact List

Design Files

Quick reference to our design files types.
Filters

1 design file
