MC33662L LIN2.1/SAEJ2602-2, LIN Phy Evaluation Kit

KIT33662LEFEVBE Active

Roll over image to zoom in

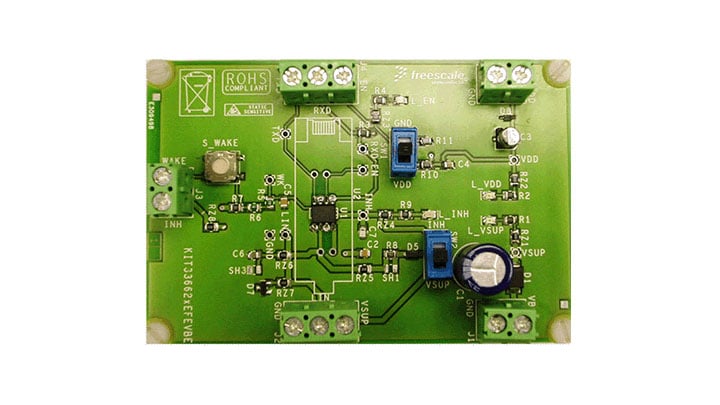

The KIT33662LEFEVBE kit supports the MC33662LEF communication transceiver for preliminary evaluation purposes. The kit includes a production device for testing features in various configuration cases. The kit can also be used for Electro Static Discharge (ESD) and Bulk Current Injection (BCI) tests.

Product Details

Supported Devices

Interfaces

Automotive LIN Solutions

  • MC33662: LIN 2.1 / SAEJ2602-2, LIN Physical Layer

Features

Connectivity

  • Individually routed power supply inputs for VDD and VBAT

User Components

  • Status of product indicated by an LED
  • Follower or leader configuration via a switch
  • Wake button
  • Mode selector via a switch

Test Points

  • Test point for every pin

Buy Options

KIT33662LEFEVBE-Image

Click to expand

  • KIT33662LEFEVBE
    Active

  • Evaluation Kit - MC33662L, LIN2.1/SAEJ2602-2, LIN physical layer.

    • KIT33662LEFEVBE Hardware
    • Quick Reference Guide
  • $121.79 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors

Documentation

Quick reference to our documentation types.

Filters

2 documents

Design Files

Quick reference to our design files types.
Filters

1 design file
