SPI to I²C Bridge Evaluation Board

SC18IS604-EVB
Active

Roll over image to zoom in

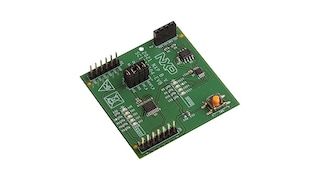

Easy to use board with mounted SC18IS604PW allowing connections to SPI controllers and I²C targets for protocol conversion.

Product Details

Supported Devices

Interfaces

Bridges

Features

SPI Host Interface

  • With 1.2 Mbit/s speed and 255 byte TX/TF FIFO buffer

I²C-Bus Controller

  • Multi-master capable

Five Configurable I/O Ports

  • Can be used for LED or other I/O purpose

Wide Voltage Range

  • 1.71 V – 3.6 V operation with 5 V tolerant I/O pins

Temperature Range

  • -40 to 105 °C temperature range, can be used in high temperature industrial applications

Buy Options

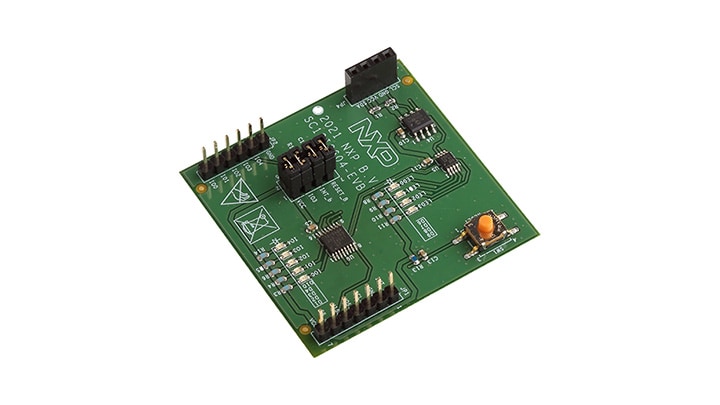

SC18IS604-EVB-Image

Click to expand

  • SC18IS604-EVB
    Active

  • SPI to I²C Bridge Evaluation Board.

  • Kit contains:

    • Assembled and tested evaluation board in an anti-static bag
  • $22.22 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
