Four-Channel I²C-Bus Multiplexer with Interrupt Logic

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

The PCA9544A is a 1-of-4 bidirectional translating multiplexer, controlled via the I²C-bus. The SCL/SDA upstream pair fans out to four SCx/SDx downstream pairs, or channels. Only one SCx/SDx channel is selected at a time, determined by the contents of the programmable control register. Four interrupt inputs, INT0 to INT3, one for each of the SCx/SDx downstream pairs, are provided. One interrupt output, INT, which acts as an AND of the four interrupt inputs, is provided.

A power-on reset function puts the registers in their default state and initializes the I²C-bus state machine with no channels selected.

The pass gates of the multiplexer are constructed such that the V_DD pin can be used to limit the maximum high voltage which will be passed by the PCA9544A. This allows the use of different bus voltages on each SCx/SDx pair, so that 1.8 V, 2.5 V or 3.3 V parts can communicate with 5 V parts without any additional protection. External pull-up resistors pull the bus up to the desired voltage level for each channel. All I/O pins are 5 V tolerant.

Data Sheet

Application Notes

Product Details

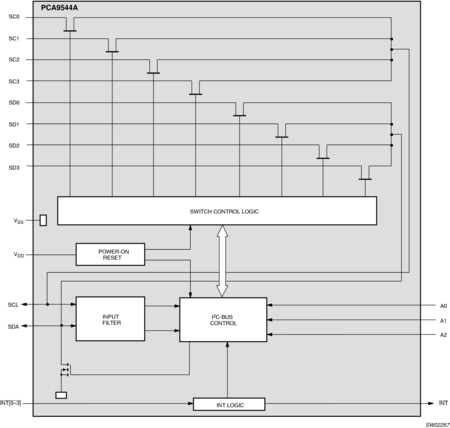

Block Diagram

Choose a diagram:

PCA9544A
PCA9544ABS, PCA9544AD, PCA9544APW

PCA9544A

PCA9544ABS, PCA9544AD, PCA9544APW

Get diagram PDF

Features

Key Features

1-of-4 bidirectional translating multiplexer
I²C-bus interface logic; compatible with SMBus
4 active LOW interrupt inputs
Active LOW interrupt output
3 address pins allowing up to 8 devices on the I²C-bus
Channel selection via I²C-bus
Power-up with all multiplexer channels deselected
Low R_on switches
Allows voltage level translation between 1.8 V, 2.5 V, 3.3 V and 5 V buses
No glitch on power-up
Supports hot insertion
Low standby current
Operating power supply voltage range of 2.3 V to 5.5 V
5 V tolerant Inputs
0 Hz to 400 kHz clock frequency
ESD protection exceeds 2000 V HBM per JESD22-A114 and 1000 V CDM per JESD22-C101
Latch-up testing is done to JEDEC Standard JESD78 which exceeds 100 mA
Three packages offered: SO20, TSSOP20 and HVQFN20
