TEA2209T Active Bridge Rectifier Controller Demo Board

TEA2209DB1584
Active

Roll over image to zoom in

The TEA2209T is an active bridge rectifier controller replacing the traditional diode bridge. Using the TEA2209T with low-ohmic high-voltage external MOSFETs significantly improves the efficiency of the power converter as the typical rectifier diode-forward conduction losses are eliminated.

In addition, the TEA2209T includes an X-capacitor discharge function. To reduce power consumption at a standby condition, an external signal via the COMP pin can disable the TEA2209T.

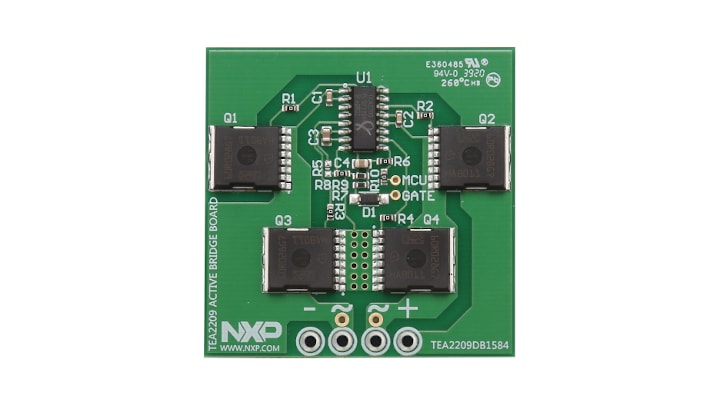

This demo board contains a TEA2209T and four low-ohmic high-voltage MOSFETs.

Supported Devices

Power Management

AC-DC Controllers

  • TEA2209T: Active Bridge Rectifier Controller

Features

General

  • Increased efficiency by saving forward conduction losses of conventional bridge rectifier
  • Directly drives all four rectifier MOSFETs with very low external part count
  • Integrated X-capacitor discharge (2 mA)
  • Self-supplying and very low IC power consumption (2 mW)
  • Disable function for all external power MOSFETs

Buy Options

TEA2209DB1584-Image

Click to expand

TEA2209DB1584
Active

TEA2209T Active Bridge Rectifier Controller Demo Board.

    $150.00 USD
    In Stock :30

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
