StarCore® DSP Probe Tips for CodeWarrior® TAP

CWH-CTP-STC-YE Active

Roll over image to zoom in

The CWH-STC-COP-YE is a removable probe tip for StarCore® processors (see Supported Devices for precise list). This probe tip connects the StarCore processor target system’s ONCE port to the CodeWarrior® TAP base unit’s 30-pin target connector.

This tip is compatible with the CodeWarrior TAP CWH-CTP-BASE-HE base unit. Base units do not come with a probe tip so you must have at least one of these to debug your device.

Product Details

Supported Devices

Processors and Microcontrollers

Digital Signal Processors

  • MSC8154E: High-Performance Quad-Core DSP with Security
  • MSC8156: High-Performance Six-Core DSP
  • MSC8156E: High-Performance Six-Core DSP with Security

Features

  • Removable probe tip
  • Low-cost and economical to order several spares
  • Allows base unit to work with several different target types

Buy Options

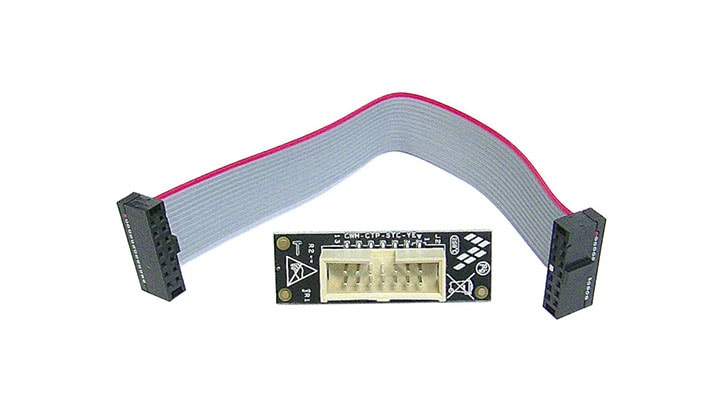

CWH-CTP-STC-YE-Image

Click to expand

  • CWH-CTP-STC-YE

  • CodeWarrior TAP removable probe tip for StarCore DSPs with ONCE port (order with base unit).

  • $67.85 USD
  • For a quantity of 1
Order from distributors
